320bar gas booster high pressure pump oxygen filling pump

Product Description

The Terek gas booster equipment uses pure compressed air as the driving power source, and USES gas booster pump as the pressure source, Hydroge ,nitrogen, oxygen, helium,N2O,Argon, CO2 and other gases as the pressurized medium. The output pressure is proportional to the driving gas pressure.

By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized gas can be obtained.
When the pressure of the driving gas source is balanced with that of the pressurized gas, the pneumatic booster pump will be automatically stops and the output gas pressure is stabilized at the preset pressure. Therefore, it has the features of explosion-proof, energy saving, environmental protection, adjustable output pressure, small volume, light weight, simple operation, reliable performance and wide application range.

To operate this system, The drive gas from the air compressor is required to start the Terek booster pump. The pressure of the drive gas can be adjusted by valves and pressure gauges, and the output gas pressure can be adjusted . The expected working pressure can be achieved by adjusting the pressure of the drive inlet.. When the driving air pressure and the output pressure are balance, the pump stops filling pressure and the output pressure remains at the preset value.

TEREK gas booster pump uses compressed air to drive large area end piston to small area end to get high pressure gas output.. Can be used for compressed air and other gas, the output pressure can be adjusted by inlet valve,  The output can ensure gas is not contaminated. Automatic pressure maintaining. Driven by gas, No spark or Flame and No generating heat, Can use it in dangerous places.

Product parameters

Basically the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is reciprocating , The automatic reciprocating motion of the piston is controlled by a built-in four-way valve.
TEREK pumps are air driven at a drive air pressure of 3 to 8 bar (29 to 116 psi) by the normal air compressor.

Refer to model technical parameters.

System configuration:

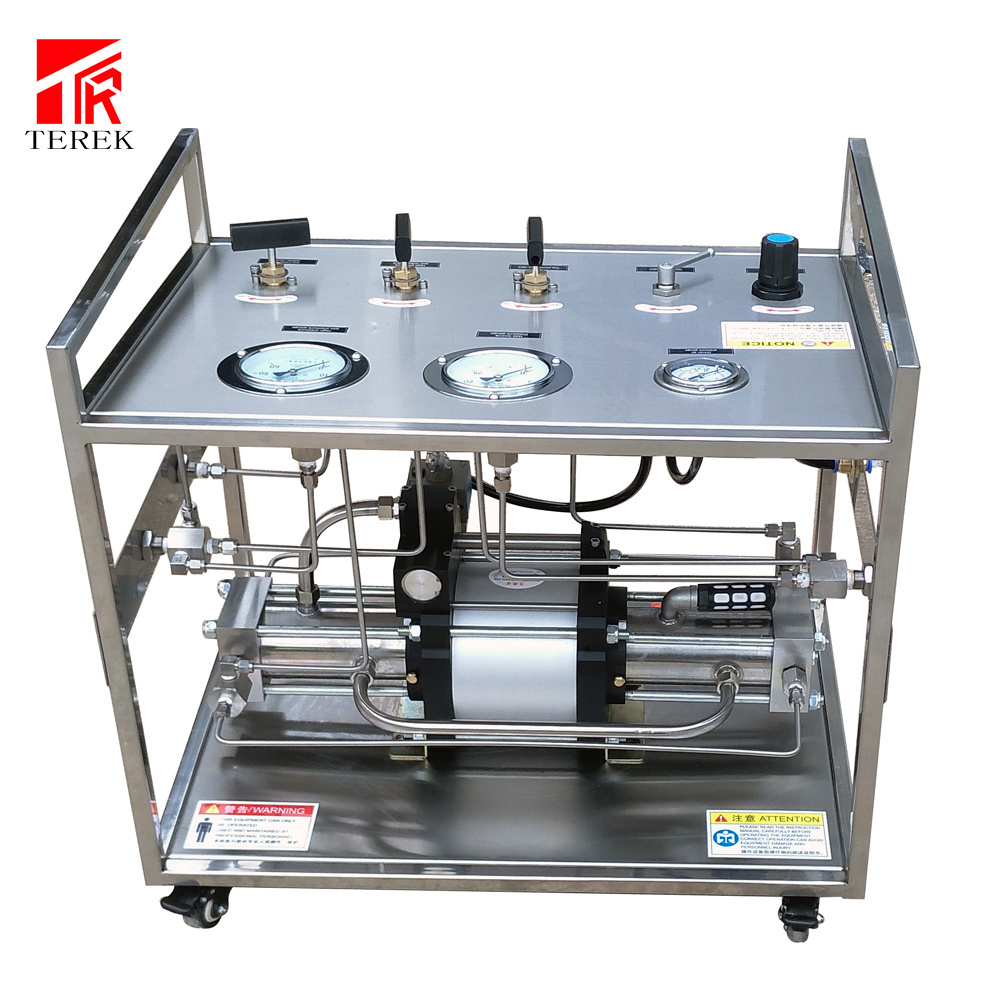

GU-GTC series gas booster unit control cabinet mainly includes one sets of GTC series air-driven gas booster pump, pressure gauges, air filter, gas inlet filter, control valves, air regulating valve, pipelines, cabinet, and pressure release valve etc.

The diameter of the drive cylinder:160mm

Drive cylinder stroke:100mm High pressure Cylinder stroke:100mm

The maximum driving pressure of the drive air is 8 bar/116psi

Detailed Images

Product advantages

1. All pipes and fittings are made of stainless steel to ensure a long life

2. The pump will stop working automatically when the output pressure reaches the preset value,

3. Maintain long working hours with no energy expenditure

4.No dissipated heat during the pressure holding phase

5.No risk for explosion and spark in oil and gas field

6. The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.

7. The working pressure can be adjusted by adjusting the pressure of the driven air. 8.Easy to install, move, use and maintain

Features & Benefits:

Application : Gas transfer and filling(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO2/NO2/CH4/LNG/LPG/CNG/FM200 etc.)

Charging of gas cylinder and accumulator with nitrogen and High pressure gas injection system for various industries

1. Reliable, easy to maintain, compact and robust

2. No heat, flame or spark risk 3. Infinitely variable cycling speed and output

4. Pneumatic driven units do not require electrical connections 5. Easy to apply automatic controls

6. No limit or adverse affect to continuous stop/start applications

7. Seal systems designed for long working life 8. No air line lubricator required

9. Hydrocarbon free – separation between air and gas sections

10. Built-in cooling (most models) 11. Suitable for most gases

12. Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat
