Quick Details
-
Model Number:
-
BYT-32M1. with cable
-
Max. Current:
-
32A
-
Model:
-
BYT-32 M1
-
Poles:
-
2P
-
Standard:
-
AS60947.3:2018,IEC60947.3
-
Utilization Category:
-
DC-PV2 / DC-21B
-
Rated Current:
-
9A-40A
-
Certificate:
-
SAA / TUV / CB
-
Certification:
-
IEC SAA
Quick Details
-
Max. Voltage:
-
1200V
-
Place of Origin:
-
China
-
Brand Name:
-
ZJBENY
-
Model Number:
-
BYT-32M1. with cable
-
Max. Current:
-
32A
-
Model:
-
BYT-32 M1
-
Poles:
-
2P
-
Standard:
-
AS60947.3:2018,IEC60947.3
-
Utilization Category:
-
DC-PV2 / DC-21B
-
Rated Current:
-
9A-40A
-
Certificate:
-
SAA / TUV / CB
-
Certification:
-
IEC SAA

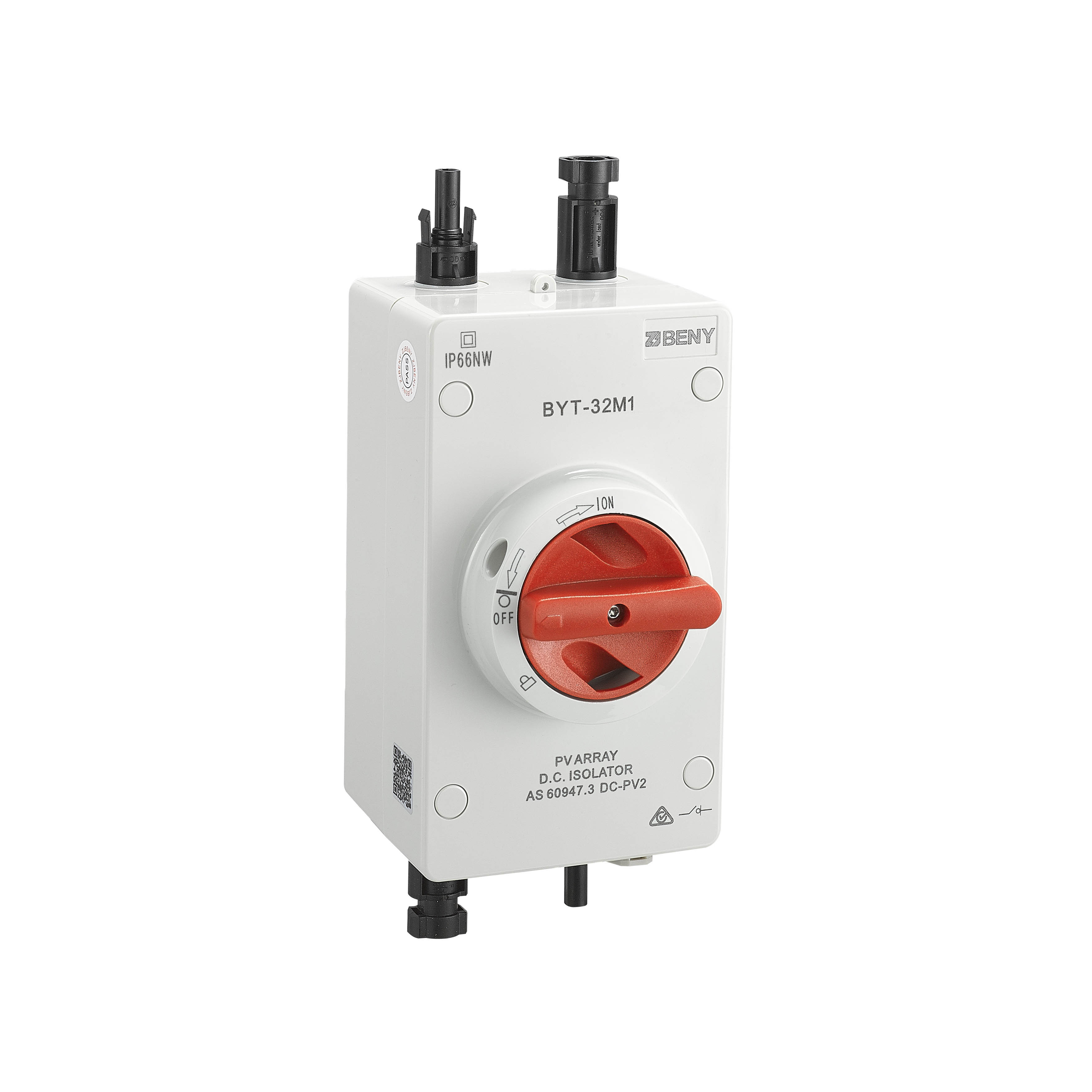

The first DC isolator fully compliant with AS 60947.3:2018 DC-PV2
In Australia and New Zealand DC isolating switches must have a valid Certificate of Conformity confirming the product complies with AS 60947.3:2018 DC-PV2.
And a breathing valve shall be attached on the DC isolator.
BYT-32M1 solar DC isolator up to 1200V is designed according to IEC60947-3 DC-21B / AS60947.3:2018 DC-PV2 standard.
The first DC isolator compliant with AS 60947 requirements, and can be used in worldwide solar DC systems.
Pre-wired DC isolator with MC4 connectors
The DC isolator switch BYH-32M1 is wired with MC4 for faster and safer installation.
Pre-wired MC4 in factory avoid the loose wiring or failure installation.
Specification:
* 1200Vdc 32A
* IP66 for any positions mounting
* UV resistance and flame retardant material
* 3ms arc suppression
* AS 60947.3:2018 DC-PV2, IEC 60947.3
* Breather valve
* Pre-wired MC4 connectors
* Lockable at off position
|
Model |
BYT-32M1 |
|
Poles |
2P |
|
Standard |
AS60947.3:2018,IEC60947.3 |
|
DC-PV2 / DC-21B |
|
|
Rated Operational Voltage (Ue) |
500V,600V,800V,1000V |
|
Rated Current |
9A-40A |
|
Mechanical Cycle |
15000 |
|
Electrical Cycle |
1000 |
|
Protection Degree |
IP66 enclosure/IP20 switch body |
|
Polarity |
No Polarity |
Q:Can I get a sample before I place an order ?
A:Yes,of course and sample fee will be charged but it is refundable if you place order afterwards.
Q:When will I receive my order normally?
A:Normally , It takes 1 week from 1-100 pieces, 2 weeks from 100- 500 pieces, 3-4 weeks if it ups to 500 pieces..
Q:What is your payment methods ?
A:We can accept 100% TT via Alibaba .
Q:What is your shipping methods?
A:Normally we ship goods by express ,by air or sea.
Q:How long the warranty lasts for?
A:Our policy allows to exchange within 5 years.
