Quick Details
-
Product Name:
-
frameless glass door electric lock
-
Face place material:
-
Stailess Steel
-
Fail Safe:
-
Lock when energized
-
Face Plate:
-
L148*W43*H39(mm)
-
Voltage:
-
DC12V(DC24V)
-
Working electric current:
-
240mA
-
Operating temp:
-
-10~+55℃(14-131F)
-
Operating Humidity:
-
0~90%(non-condensing)
-
support Grip:
-
400kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PROYU
-
Model Number:
-
PY-EL8
-
Product Name:
-
frameless glass door electric lock
-
Face place material:
-
Stailess Steel
-
Fail Safe:
-
Lock when energized
-
Face Plate:
-
L148*W43*H39(mm)
-
Voltage:
-
DC12V(DC24V)
-
Working electric current:
-
240mA
-
Operating temp:
-
-10~+55℃(14-131F)
-
Operating Humidity:
-
0~90%(non-condensing)
-
support Grip:
-
400kg
Stainless Steel Electric Plug Lock Access control electric plug-in lock for Frameless Glass Door PY-EL8
Description:
Applications
: Glass Door.
Features:
* Low Temperature, safe & Durable
* Low Power, Environmental Protection
* Special photo electricity control,three steps current application
* Long Life with 500000 Operations
* MOV Provides Reverse Current Protection
* Superior Strength Aluminium Alloy,Solid Stain-less Steel Bolt
* Autolock Time Delay: 0,3,6,9sec.
* Door statue signal output contact(NC.COM)
* Double protection for loading current
* Auto-relock if no Action within 5 secs.
* Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.
Technical Specifications:
Fail Safe : Lock when energized
Face Plate: L148xW43xH39(mm)
Bolt: 17mmDIA, stainless steel 13mm throw
Voltage: DC12V(DC24V)
Start Current: 900mA
Standby Current: 120mA
Support Grip:400kg
Suitable For: 12mm Electric Bolt For Fully Frameless Glass Door
Signal Output: Door Status Output,NO/COM
Surface Temp: Low Temperature
Induction Distance: 8mm
Operating temp: -10~+55℃(14-131F)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 operations
Face place material :Stailess Steel
Weight: 1.8kg

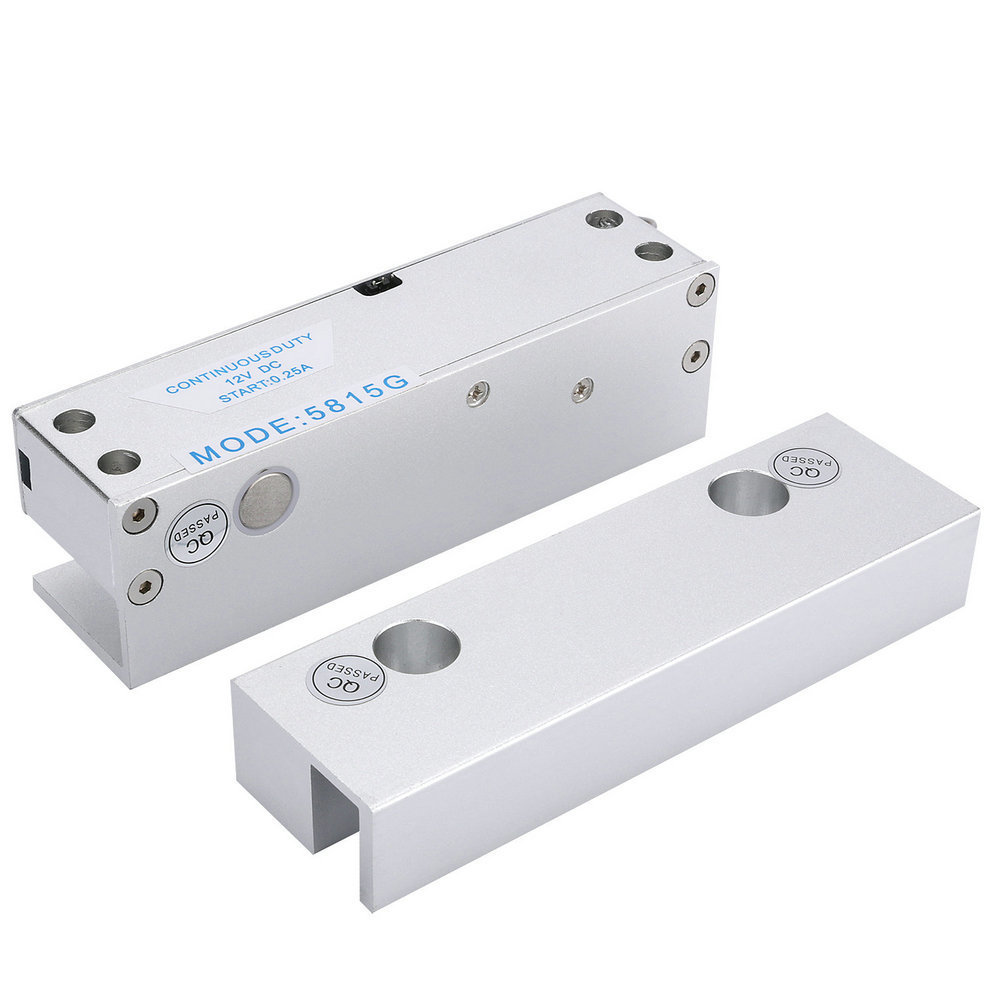

Product Show:
