Quick Details
-
Place of Origin:
-
guangdong
-
Brand Name:
-
genergylighting
-
Model Number:
-
SBHL200
-
Beam Angle(°):
-
80*150
-
CRI (Ra>):
-
75
-
Input Voltage(V):
-
v100-277v 347v
-
Lamp Luminous Efficiency(lm/w):
-
140
-
Lamp Luminous Flux(lm):
-
28000
-
Working Temperature(℃):
-
-40-50
-
Color Rendering Index(Ra):
-
75
-
Power Supply:
-
isolated
-
Lifespan (hours):
-
50000hrs
-
Product Weight（kg）:
-
4.9
-
200watt lamp body material:
-
die casting aluminum
-
COLOR CCT:
-
3000-6500k
-
LED light source:
-
Famous brand 2835
-
beam angle:
-
150*80
-
Lamp Luminou efficiency:
-
140 LM/W
-
Product name:
-

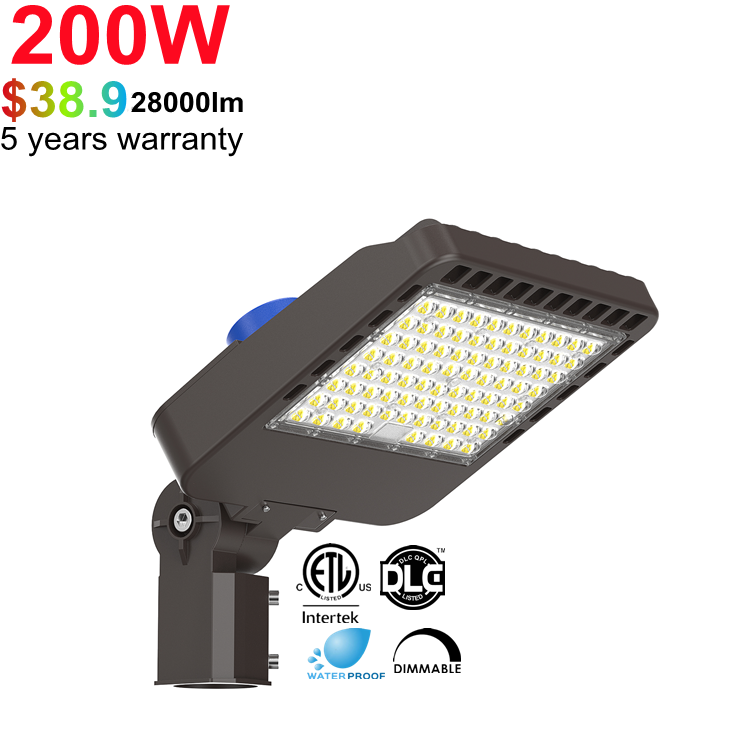

200w SENSOR OUTDOOR Street lighting fixture
-
Driver Brand::
-
famous
-
IK Grade::
-
IK08
-
Power Factor:
-
>0.95
-
Standard for safty:
-
North american ETL DLC SAA CE
Quick Details
-
Color Temperature(CCT):
-
5000
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation
-
Place of Origin:
-
guangdong
-
Brand Name:
-
genergylighting
-
Model Number:
-
SBHL200
-
Beam Angle(°):
-
80*150
-
CRI (Ra>):
-
75
-
Input Voltage(V):
-
v100-277v 347v
-
Lamp Luminous Efficiency(lm/w):
-
140
-
Lamp Luminous Flux(lm):
-
28000
-
Working Temperature(℃):
-
-40-50
-
Color Rendering Index(Ra):
-
75
-
Power Supply:
-
isolated
-
Lifespan (hours):
-
50000hrs
-
Product Weight（kg）:
-
4.9
-
200watt lamp body material:
-
die casting aluminum
-
COLOR CCT:
-
3000-6500k
-
LED light source:
-
Famous brand 2835
-
beam angle:
-
150*80
-
Lamp Luminou efficiency:
-
140 LM/W
-
Product name:
-
200w SENSOR OUTDOOR Street lighting fixture
-
Driver Brand::
-
famous
-
IK Grade::
-
IK08
-
Power Factor:
-
>0.95
-
Standard for safty:
-
North american ETL DLC SAA CE
ETL DLC EMC certification intertek outdoor led lighting 400w 300w 250w 200w 150w photo sensor led area light fixtures
ETL CEL SAA CE One module series LN shoebox street led light specifications
| LN- SBLHL Series | ||||||||
| Part number | SBLHL200 | SBLHL60 | SBLHL80 | SBLHL100 | SBLHL120 | SBLHL150 | SBLHL250 | SBLHL300 |
| watts | 200w | 60w | 80w | 100w | 120w | 150w | 250w | 300w |
| Size | L 300 *W 300 *H 72 mm | L268*W275*H47mm | L268*W275*H47mm | L 439 *W 310 *H 72 mm | ||||
| NW | 4.2kg | 2.9kg | 3.1kg | 6.1kg | ||||
| GW | 4.9kg | 3.7kg | 3.9kg | 6.9kg | ||||
| lm/w | 140lm/w | 150lm/w | 140lm/w | 140lm/w | ||||
| Total lumen | 28000lm | 9000lm | 12000lm | 15000lm | 16800lm | 21000lm | 35000lm | 42000lm |
| pcs/ctn | 1pcs | 5pcs | 1pcs | |||||
| ctn size | 39*37*21cm | 43*33*49cm | 70*40*16 cm | |||||
| LED+Driver | famous led chip + Sosen/meanwell/ factory driver | |||||||
| Warranty | 5 years warranty (7 years option ) | |||||||
|
Certificates |
ETL CETL 5001457 , DLC 5.1 , SAA CE ,Rohs |
|||||||
| Surge protetion | 10kv ; IK10 protection degree. | |||||||
| Volt | 85-277v AC (347v 480v option) | |||||||
| Photocell sensor | blue sensor or ( with patent photocell sensor +shorting cap ) | |||||||
| Dimmable | no ( 1-10v dimmable option for DLC ) | |||||||
| Beam angle | Type 3 ( 80*150 degree ) | |||||||
| Arm option |
adjustable Slip fit ( square arm ,round arm ,square round arm , Yoke/trunnion U arm , slip fit square etc ) |
|||||||
| CRI | RA>75 | |||||||
| working temperature | -40-50℃ | |||||||
| IP degree | Ip66 Waterproof | |||||||
| CCT | 3000K 4000K 5000K 5700K 6500K or other | |||||||
| Housing color |
Classic Brown ( black or gray etc option ) |
|||||||
| Selling point | With Certificates +Respirator function+patent photocell sensor +shorting cap +Super save freight +still hight quality | |||||||
| Factory scale | 9000 square meter+ 280 workders +18 years experience till 2022 | |||||||
#1:Blue sensor or P atent integrated photocell sensor :
( 18 years lighting factory ) Our factory developed patent integrated photocell sensor to combine the sensor with shorting cap , you can choose the lamp with or without the dusk to dawn function easily just by turning the hole to the other side.
# 2 Respirator function :
Each outdoor led light was added a respirator to let the water inside the lamp go outside ,while water from outside can not go inside , which can prevent the streetlight from rain drops and foggy problems ! IP66 need more detail to guarantee!
#3 Selling pionts: Super save freight :
street led lamp usually have big volume ,now freight cost is crazy !this item was designed not only to cut down cost but also save freight for customers, while without sacrificing quality. 150w will be very competitive as you can see.
| 100PCS old new Volume VS | ||
| 100W NEW | 1PCS 0.15 CBM | 100PCS 1.5CBM |
| 100W old | 1PCS 0.03 CBM | 100PCS 3CBM |
| 150w new | 1PCS 015 CBM | 100PCS 1.5CBM |
| 150w old | 1PCS 0.038 CBM |
100PCS 3. 8CBM |
| 200w new | 1PCS 0.031 CBM | 100PCS 3.1CBM |
| 200w old | 1PCS 0.038 CBM | 100PCS 3.8CBM |
| 300w new | 1PCS 0.047 CBM | 100PCS 4.7CBM |
| 300w old | 1PCS 0.54 CBM | 100PCS 5.4CBM |
