Lilliput AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
- Product Details
- {{item.text}}
Quick Details
-
Support:
-
UP to 1080p60hz (3G all format)
-
SDI Compliance:
-
SMPTE 292M/SMPTE 259M/SMPTE 424M
-
SDI Color Space:
-
YUV 4:2:2
-
SDI Video Rate:
-
SD/HD/3G-SDI, 1080P@60hz
-
HDMI Color Space:
-
YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
-
AV Output Format Support:
-
NTSC, PAL
-
Dimension:
-
125.5mm*104mm*24.5mm
Quick Details
-
Product name:
-
4 channel SDI multiviewer scaler
-
Input:
-
3G-SDI *4
-
Output:
-
SDI *2,, HDMI *1
-
Support:
-
UP to 1080p60hz (3G all format)
-
SDI Compliance:
-
SMPTE 292M/SMPTE 259M/SMPTE 424M
-
SDI Color Space:
-
YUV 4:2:2
-
SDI Video Rate:
-
SD/HD/3G-SDI, 1080P@60hz
-
HDMI Color Space:
-
YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
-
AV Output Format Support:
-
NTSC, PAL
-
Dimension:
-
125.5mm*104mm*24.5mm
Brief Introduction

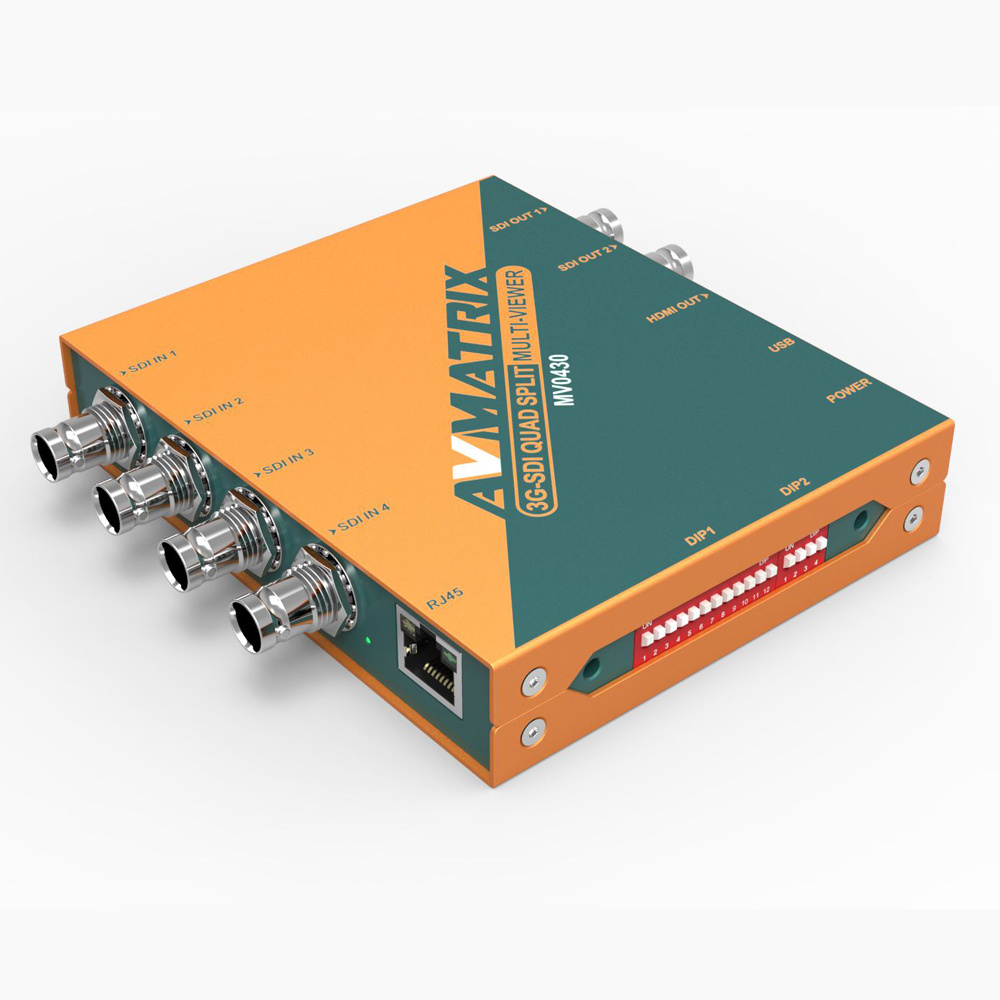

MV0430
4 channel SDI multiviewer scaler
MV0430 is an exquisite and professional SDI multiviewer which features 4-channel 3G/HD/SD-SDI auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Total 16 preset layouts are provided for choices. User can also adjust the size and position of 11-character UMD and audio meter overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications.
Main Features
1) 4×SD/HD/3G-SDI inputs with auto detection
2) 2×SD/HD/3G-SDI and 1×HDMI outputs for multiview
3) 11 selectable SDI & HDMI output formats
4) Up/down scaling and frame rate conversion
5) 16 preset layouts,Support both full-screen and multiview mode
6) 11 character UMD overlay, support custom position and color
7) Audio level meter overlay, support custom position
8) Control easily via the DIP switches
9) USB port for keyboard control
10) LAN port for control and firmware update
11) Threaded locking power connector
12) Detachable bracket design for wall mounting
Product Description
11 Output Formats Selectable
The SDI multiviewer features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. Four inputs can be showed simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats are supported for user's choices.
Easy Control over DIP Switches
Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, 4 channel SDI multiviewer scaler also can be remote set by using a software by connecting it with a PC via LAN. Besides, the latest firmware can be upgraded via LAN port.
16 Group Preset Layouts
The 4 channel SDI multiviewer scaler provides 16 group preset layouts, including frequently-used modes like quad split, full screen, triple windows, PiP and PoP mode.
User-defined UMD and Audio Meter Overlay
These user-friendly design is the other feature of MV0430, for example, in each individual window, users can set 11 characters UMD overlay separately and adjust it's size and position freely. Similarly, the size and position of the 2–channel audio metering can also be user-defined.
Techniacl Parameter
Packing & Delivery
The MV0430 4 channel SDI multiviewer
Packing Box: 125.5mm * 104mm * 24.5mm
Net Weight: 465g
Gross Weight: 1250g
Delivery Time Sample: 5 working days; Bulk Order: To be confired
After-Sales Service
About LILLIPUT AVMATRIX
LILLIPUT AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
