Quick Details
-
Power:
-
10/2200kw/r/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bonovo
-
Maximum Digging Height:
-
3275
-
Maximum Digging Depth:
-
2150
-
Max Digging Radius:
-
3470
-
Rated Speed:
-
3.5km/h
-
Name:
-

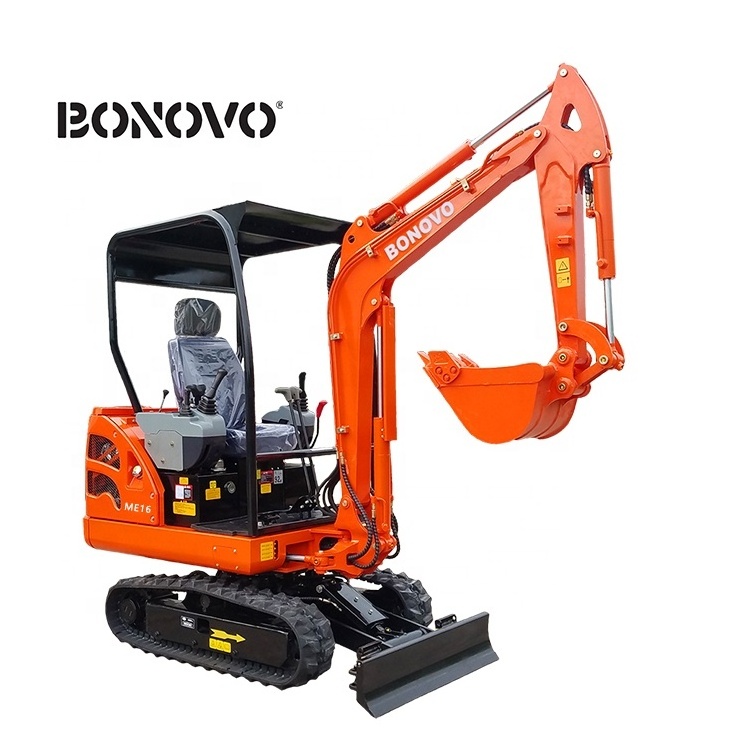

Mini Excavator
-
Type:
-
Crawler Moving
-
Tonnage:
-
1.6t 2t 2.2t
-
Color:
-
Orange/Pink/Blue/Green
-
Other Attachments:
-
Available
-
Track overall length:
-
1450mm
-
overall height:
-
2377mm
-
Undercarriage width:
-
1040mm
-
Mini swing radius:
-
1440mm
-
OEM:
-
Available
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Canada, United States, Germany, Peru, Spain, Australia
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
ISO9001
Quick Details
-
Operating Weight:
-
1ton
-
Bucket capacity:
-
0.025cbm
-
Engine Brand:
-
Others
-
Power:
-
10/2200kw/r/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Bonovo
-
Maximum Digging Height:
-
3275
-
Maximum Digging Depth:
-
2150
-
Max Digging Radius:
-
3470
-
Rated Speed:
-
3.5km/h
-
Name:
-
Mini Excavator
-
Type:
-
Crawler Moving
-
Tonnage:
-
1.6t 2t 2.2t
-
Color:
-
Orange/Pink/Blue/Green
-
Other Attachments:
-
Available
-
Track overall length:
-
1450mm
-
overall height:
-
2377mm
-
Undercarriage width:
-
1040mm
-
Mini swing radius:
-
1440mm
-
OEM:
-
Available
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Canada, United States, Germany, Peru, Spain, Australia
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
ISO9001
e
Underground Loader Bucket
Application Range:
If you need proven performance, more comfort options and better design to maximize your uptime, the revolutionary lineup of BONOVO's ME-Series excavators demand a look.
While it' 5 their bold exterior styling that stands out, the real difference is the enhanced performanceproductivity and comfort that exists underneath.With the industry' s largest selection of models,you' 1ll find a machine that' s matched to your specific excavation needs. Choose an excavator with the right combination of dig depth, arm configuration, and tail swing style for your work. Add specialized attachments that do more than dig and maximize the kinds of projects you can take on.
Specification
Details
Technical Advantage
Manufacture
Certifications
FAQ
|
Engine
|
|
Specification
|
|
|
Machine weight
|
|
1400kg
|
|
|
Bucket capacity
|
|
0.045m³
|
|
|
Working device form
|
|
Backhoe
|
|
|
engine
|
Model
|
Yanmar 3TNV70
|
|
|
|
Displacement
|
0.854L
|
|
|
|
Rated output power /speed
|
10/2200kw/r/min
|
|
|
|
Maximum torque
|
51.9/1600N.M/r/min
|
|
|
speed and digging force
|
Max travel speed
|
3.5km/h
|
|
|
|
Swing speed
|
11rpm
|
|
|
|
Grade ability
|
30°
|
|
|
|
Bucket digging force
|
10.5KN
|
|
|
|
Arm digging force
|
6.5KN
|
|
|
|
Max tractive force
|
13.5KN
|
|
|
Ground pressure
|
|
35kgf/cm²
|
|
|
Track material
|
|
Rubber track
|
|
|
Tensioning device type
|
|
Grease cylinder
|
|
|
Dimendions
|
|
Specification
|
|
|
Track Gauge
|
|
1130mm
|
|
|
Track overall length
|
|
1450mm
|
|
|
Platform ground clearance
|
|
437mm
|
|
|
Platform end swing radius
|
|
740mm
|
|
|
Undercarriage width
|
|
1040mm
|
|
|
Track width
|
|
230mm
|
|
|
Track height
|
|
320mm
|
|
|
Transport length
|
|
3160mm
|
|
|
Overall height
|
|
2377mm
|
|
|
Operating range
|
|
Specification
|
|
|
Max digging radius
|
|
3470mm
|
|
|
Max digging depth
|
|
2150mm
|
|
|
Max digging height
|
|
3275mm
|
|
|
Max dumping height
|
|
2310mm
|
|
|
Max vertical digging depth
|
|
1740mm
|
|
|
Mini swing radius
|
|
1440mm
|
|
|
Max Dozer blade lifting height
|
|
262mm
|
|
|
Max Dozer blade lifting depth
|
|
192mm
|
|
Shipping
Procedure
