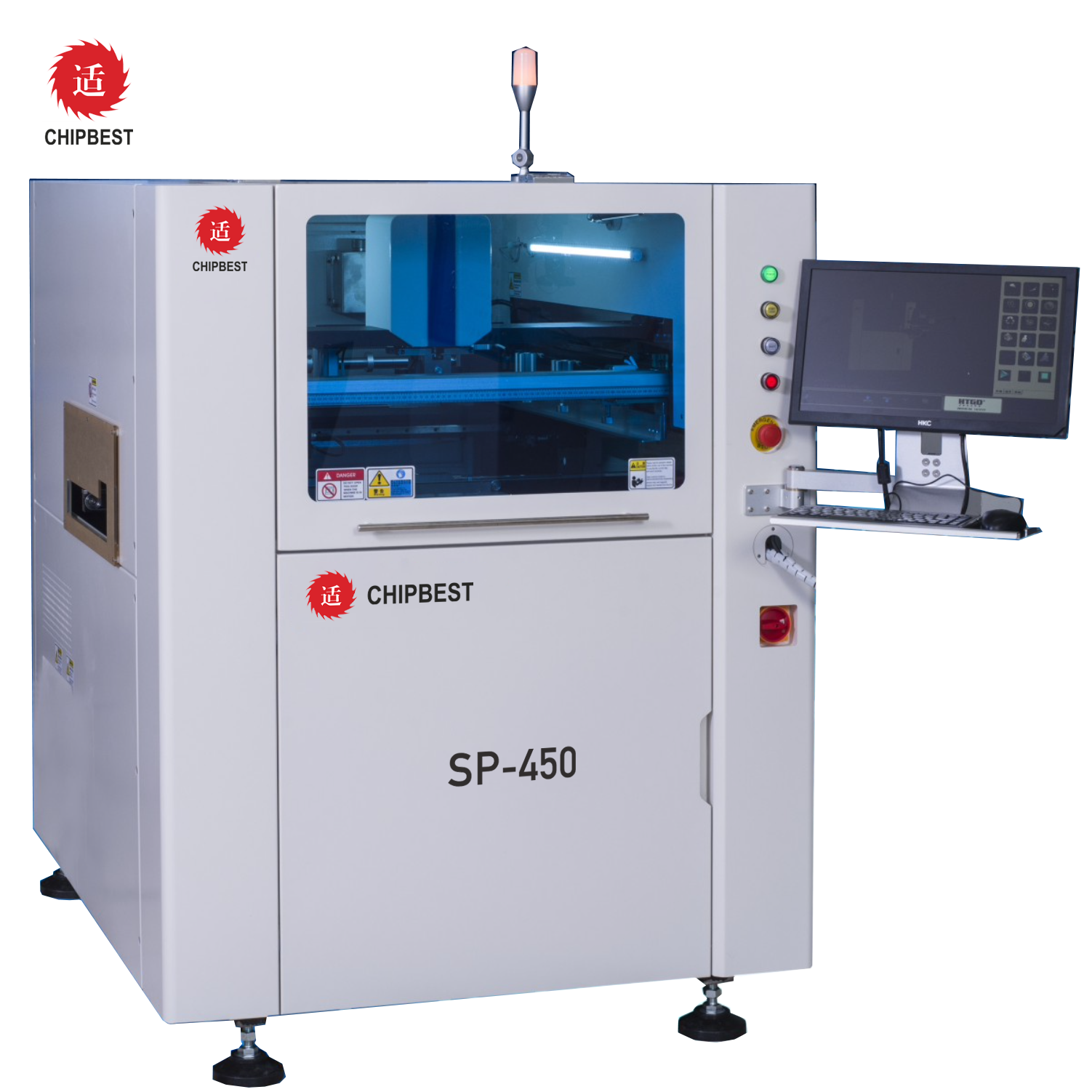

High speed High precision SMT solder paste printing machine automatic pcb board printing machine
Led TV PCB Production Line
With simple and reliable , accurate positioning and easy to adjust structure, SP-450 has the characteristics of high precision ,
high stability, high performance/price ratio and so on
Simple and reliable PCB positioning system
Adaptive PCB board thickness, software tunable flexible side pressure and magnetic supporting device.
High stability CCD camera system
Four-way light source adjustable, with uniform illumination and the perfect image collection, making the various types of Mark
points can be a very good identification (including the rugged Mark point), to meet the tin. Gold-plated, spray tin, FPC, and
other types of different colors of the PCB.
Intelligent scraper system
Programmable and independent direct-coupled stepper motor control, built-in precision pressure control system.
High efficiency stencil cleaning system
The new wiping system ensures full contact with the stencil, and the increased vacuum suction ensures that the solder paste
remaining in the mesh is effectively removed, and the effective automatic cleaning function is achieved.
SP-450 automatic visual printer
Alignment precision: ± 10.0 micron/ μm @6σ, Cp≥2.0
Printing precision: ±20.0 micron/μm @6σ， Cp≥2.0
high stability, high performance/price ratio and so on
Simple and reliable PCB positioning system
Adaptive PCB board thickness, software tunable flexible side pressure and magnetic supporting device.
High stability CCD camera system
Four-way light source adjustable, with uniform illumination and the perfect image collection, making the various types of Mark
points can be a very good identification (including the rugged Mark point), to meet the tin. Gold-plated, spray tin, FPC, and
other types of different colors of the PCB.
Intelligent scraper system
Programmable and independent direct-coupled stepper motor control, built-in precision pressure control system.
High efficiency stencil cleaning system
The new wiping system ensures full contact with the stencil, and the increased vacuum suction ensures that the solder paste
remaining in the mesh is effectively removed, and the effective automatic cleaning function is achieved.
SP-450 automatic visual printer
Alignment precision: ± 10.0 micron/ μm @6σ, Cp≥2.0
Printing precision: ±20.0 micron/μm @6σ， Cp≥2.0
|
PCB parameters
|
|
|
Maximum board size (X x Y)
|
450mm x 350mm
|
|
Minimum board size (Y x X)
|
50mm x 50mm
|
|
PCB thickness
|
0.4mm~6mm
|
|
Warpage
|
Max. PCB Diagonal line 1%
|
|
Maximum board weight
|
6Kg
|
|
Board margin gap
|
Configuration to 3mm
|
|
Maximum bottom gap
|
20mm
|
|
Transfer speed
|
1500mm/s(MAX)
|
|
Transfer height from the ground
|
900 ± 40mm
|
|
Transfer orbit direction
|
Left-Right, Right-Left, Left-Left, Right-Right (Program Settings)
|
|
Transfer mode
|
One stage orbit
|
|
PCB clamping method
|
Programmable flexible side pressure
(optional 1. Multipoint partial vacuum at the bottom 2. Edge locking and substrate clamping 3. Edge lock base clamp) |
|
Support method
|
Magnetic thimble, equal height block, etc
|
|
Printing parameters
|
|
|
Printing head
|
Linear motor closed loop printing head
|
|
Template frame size
|
370mm x 470mm~737 mm x 737 mm
|
|
Maximum printing area
|
450mm x 350mm
|
|
Scraper type
|
Steel scraper/Glue scraper(angle45°/55/60matching the printing process)
|
|
Scraper length
|
220mm~500mm
|
|
Scraper height
|
65± 1mm
|
|
Scraper thickness
|
0.25mm Diamond-like carbon Coating
|
|
Printing mode
|
Single or double scraper printing
|
|
Demolding length
|
0.02 mm - 12 mm
|
|
Printing speed
|
0~200mm/S
|
|
Printing pressure
|
0.5kg- 10Kg
|
|
Printing stroke
|
±200 mm From the center
|
|
Image parameters
|
|
|
Field of View
|
6.4mm x 4.8mm
|
|
Platform adjustment range
|
X , Y:±7.0mm,0:±2.0°
|
|
Benchmark point type
|
Standard shape benchmark point (SMEMA standard), solder pad /openings
|
|
Camera system
|
Independent camera, upwards /downwards imaging vision system
|
|
Performance parameter
|
|
|
Repetition precision of image calibration
|
±10.0 micron@6σ , Cp≥2.0
|
|
Repetition precision of printing
|
±20.0micron@6σ , Cp≥2.0
|
|
Cycle time
|
<7s
|
|
Product Changeover
|
<5mins
|
|
Equipment
|
|
|
Power requirements
|
AC220V ±10%，50/60HZ,15A
|
|
Compressed air requirements
|
4~6Kg/cm2,10.0 Diameter of the tube
|
|
Operating system
|
Windows XP
|
|
External dimension
|
L (1140mm) x W (1450mm) x H (1480mm) (Without lights, monitor and keyboard)
|
|
Machine weight
|
about1000Kg
|
|
Temperature and humidity control module(optional)
|
|
|
Environment temperature
|
23±3℃
|
|
Relative humidity
|
45~ 70%RH4
|
