- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HW-10B/HW-20B
-
Dimension:
-
0.1059CBM, 65 * 44 * 37 cm, 6pcs
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
100V: 20 W, 10 W, 5W 70V: 10 W, 5 W, 2.5W
-
Shell Material:
-
Aluminum alloy
-
Format:
-
N/A
-
Product Name:
-
Waterproof Projection Speaker
-
Rated power:
-
10w/ 20w
-
Material:
-
Aluminum alloy
-
Temperature / Humidity:
-
-30°C ~60°C; <95%
-
IP code:
-
IEC529, IP55
-
SPL (1W / 1m):
-
91dB/92dB
-
MAX SPL (Rated / 1m):
-
101dB/105dB
-
Dispersion (4kHz / 1kHz):
-
Uni-direction: 230° / 65°
-
Color:
-
Brilliant White
-
Frequency Response(-10dB):
-
130Hz~15kHz/110Hz~15kHz
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thinuna
-
Model Number:
-
HW-10B/HW-20B
-
Dimension:
-
0.1059CBM, 65 * 44 * 37 cm, 6pcs
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
100V: 20 W, 10 W, 5W 70V: 10 W, 5 W, 2.5W
-
Shell Material:
-
Aluminum alloy
-
Format:
-
N/A
-
Product Name:
-
Waterproof Projection Speaker
-
Rated power:
-
10w/ 20w
-
Material:
-
Aluminum alloy
-
Temperature / Humidity:
-
-30°C ~60°C; <95%
-
IP code:
-
IEC529, IP55
-
SPL (1W / 1m):
-
91dB/92dB
-
MAX SPL (Rated / 1m):
-
101dB/105dB
-
Dispersion (4kHz / 1kHz):
-
Uni-direction: 230° / 65°
-
Color:
-
Brilliant White
-
Frequency Response(-10dB):
-
130Hz~15kHz/110Hz~15kHz

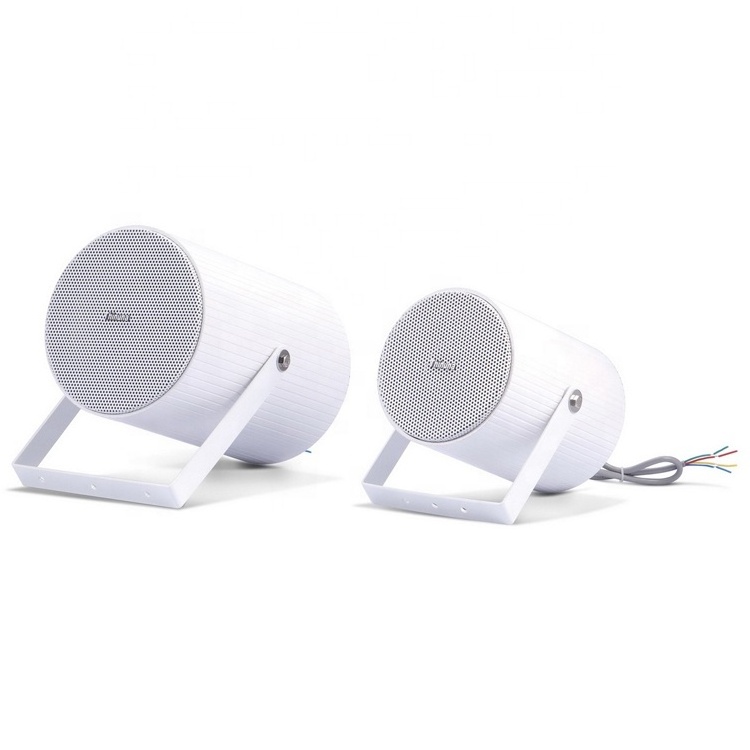

Thinuna HW-10B 20B Dual Directional PA System Speaker Outdoor Weatherproof Waterproof Double Projector Horn speaker for mosque
Products Description
Thinuna EX-HW-10B/
EX-HW-
20B pa system speaker outdoor Waterproof Projection Speaker
Feature :
- Dust-proof and waterproof grades in accordance with IEC529 IP55 standard.
- Designed to control sound directivity.
- Another ideal choice for wide range frequency projection speaker.
- Ideal for music and speech applications.
- Stable long-life Aluminum alloy cover with strong anticorrosion, can avoid all kinds of bad weather.
- Built-in 100V/70V matching transformer and provide three-gear power selection.
- Amazing SPL for powerful and clear sound quality.
- 5.25” and 6.5” waterproof unit.- Including U type bracket for fast and easy installation.
Specification
|
Model No.
|
HW-10B
|
HW-20B
|
|
|
Rated power
|
10W
|
20W
|
|
|
Max power
|
20W
|
40W
|
|
|
Power taps
|
100V : 10W / 5W /2.5W ; 70V : 5W / 2.5W / 1.25W
|
100V : 20W / 10W / 5W ; 70V : 10W / 5W / 2.5W
|
|
|
Nominal impedance
|
1KΩ, 2KΩ, 4KΩ,
|
500Ω, 1KΩ, 2KΩ
|
|
|
Crossover modes
|
Passive
|
Passive
|
|
|
Sound pressure level （1m/w）
|
91dB
|
92dB
|
|
|
Maximum SPL(Rated / 1m)
|
101dB
|
105dB
|
|
|
Frequency response (-10dB)
|
130Hz ~ 15kHz
|
110Hz ~ 15kHz
|
|
|
Nominal coverage pattern (4kHz / 1kHz)
|
Horizontal: 30° Vertical:90°
|
One way / Unidirection: 230°/ 65°
|
|
|
Speaker component
|
5.25" x 1
|
6.5" x 1
|
|
|
Connection methods for different power
|
4 core connection wire ; Red: Rated impedance; Yellow: 2 times rated impedance; Green: 4 times rated impedance; Blue: COM
|
|
|
|
Enclosure
|
Aluminum alloy casing and metal mesh
|
|
|
|
Operating temperature/humidity
|
-30°C ~ 60°C <95%
|
|
|
|
Dustproof and water-proof level
|
IEC529 IP55
|
|
|
|
Mounting Accessories
|
U-shaped mounting bracket provide quick and easy mounting
|
|
|
|
Dimensions (cm)
|
Φ13.8 x 20.5L
|
Φ17 x 25.2L
|
|
|
Weight(each)
|
2.2 KGS
|
2.8 KGS
|
|
|
Grossy weight
|
21.5KGS , 8pcs
|
20 KGS , 6pcs
|
|
|
Master carton size (cm)
|
74 x 38 x 31
|
65 x 44 x 37
|
|
|
pplications
|
Playground, cruise ship, school, government, swimming pool, noisy industrial area, leisure area, theme park
|
|
|
Project Solutions
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
About us
Production Flow
Recommend Products
The main products：
Speaker：
Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.
Amplifier：
Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.
Public Address System：
IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
Our customer feedback
Packing & Delivery
FAQ
Q1. Can I have a sample order for loudspeaker?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 2-5 days, mass production time needs 3-4 weeks for order quantity more than
Q3. Do you have any MOQ limit for loudspeaker order?
A: 5PCS MOQ, 2pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Sea. It usually takes 30-45 days to arrive. Airline also optional.
Q5. How to proceed an order for loudspeaker?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on loudspeaker product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
