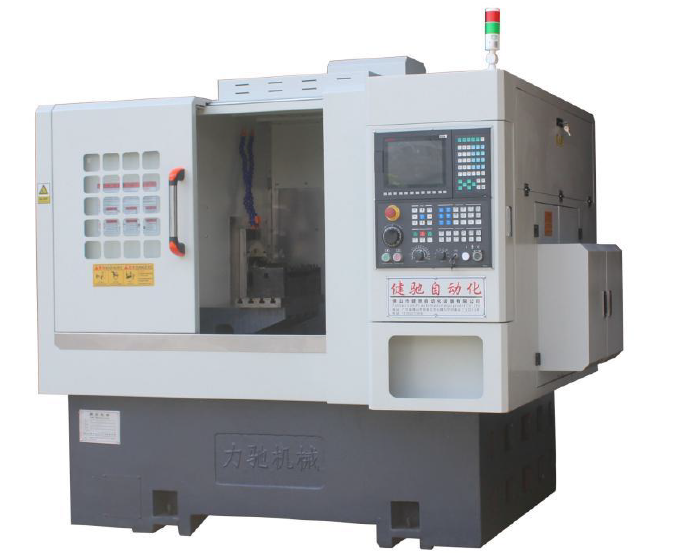

Características de la máquina herramienta: base de fundición de cama plana de una pieza,
doble husillo, doble canal, estructura de unión a tope, diseñada y desarrollada para productos de barra, chapa de acero inoxidable
de protección total, más impermeable y a prueba de astillas, y Se puede equipar con un cabezal de potencia para completar el
procesamiento de piezas de trabajo complejas, más alta eficiencia
- Product Details
- {{item.text}}
Quick Details
-
Max. Spindle Speed (r.p.m):
-
6000 r.p.m
-
Spindle Bore(mm):
-
46
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
200
-
Travel (X Axis)(mm):
-
490 mm
-
Travel (Z Axis)(mm):
-
250 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2090*1320*1760 mm
-
Brand Name:
-
LICHI
-
Model Number:
-
LC-36S
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
4200
-
Marketing Type:
-
Hot Product 2023
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
150
-
Year:
-
2023
-
Max. Spindle Speed (r.p.m):
-
6000 r.p.m
-
Spindle Bore(mm):
-
46
-
Width of bed (mm):
-
35 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
200
-
Travel (X Axis)(mm):
-
490 mm
-
Travel (Z Axis)(mm):
-
250 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2090*1320*1760 mm
-
Brand Name:
-
LICHI
-
Model Number:
-
LC-36S
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
4200
-
Marketing Type:
-
Hot Product 2023
Product Description
Specification
|
Eficiencia de procesamiento (segundos/pieza)
|
tiempo por producto
|
|
Diámetro máximo de giro
|
350mm
|
|
Diámetro máximo de mecanizado
|
200mm
|
|
Longitud máxima de procesamiento
|
100mm
|
|
Husillo a través del diámetro del orificio
|
D36mm
|
|
Velocidad máxima del husillo eléctrico
|
6000r/min
|
|
Modo de accionamiento del husillo
|
Husillo eléctrico
|
|
Recorrido del eje X1/X2
|
380mm/490mm
|
|
Recorrido del eje z1/Z2
|
250mm/250mm
|
|
Avance máximo eje X/eje Z
|
24m/mim
|
|
precisión de posicionamiento
|
±0.005
|
|
Repetibilidad
|
土0.003
|
|
Capacidad de la estación hidráulica
|
50L
|
|
Potencia de accionamiento del husillo
|
15KW
|
|
Potencia del motor del eje X/eje Z
|
Eje X/eje Z 1.3KW
|
|
Peso total
|
约 4000KG
|
Manufacturing Technique
HT300 Machine Body
|
Name
|
Brand
|
Note
|
Production Address
|
|
Fundición integral
|
Personalización de Li Chi
|
cama plana
|
Porcelana
|
|
sistema CNC
|
Empresa conjunta chino-alemana HOST
|
H32i
|
Porcelana
|
|
Husillo eléctrico
|
jin chen
|
A2-4 (36 ejes)
|
Porcelana
|
|
servo motor
|
Empresa conjunta chino-alemana HOST
|
1.3KW
|
Porcelana
|
|
accionamiento del husillo
|
Empresa conjunta chino-alemana HOST
|
15KW
|
Porcelana
|
|
accionamiento axial
|
Empresa conjunta chino-alemana HOST
|
1.3KW
|
Porcelana
|
|
Tornillo eje X1/X2
|
Clase C3 Shangyin o Intime
|
Rectificado de precisión 3210
|
Taiwán
|
|
Tornillo eje Z1/Z2
|
Clase C3 Shangyin o Intime
|
Rectificado de precisión 3210
|
Taiwán
|
|
Carril de guía del eje X1/X2
|
Nivel de PII Shangyin o Intime
|
30/35 Rodillo/Bola
|
Taiwán
|
|
Carril de guía del eje Z1/Z2
|
Nivel de PII Shangyin o Intime
|
30 rodillos/bolas
|
Taiwán
|
|
Cojinete de tornillo
|
NSK o Shangyin
|
nivel P4
|
Taiwán. Japón
|
|
Cilindro rotativo
|
sentido común
|
536
|
Porcelana
|
