- Product Details
- {{item.text}}
Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
ZBT&OEM
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

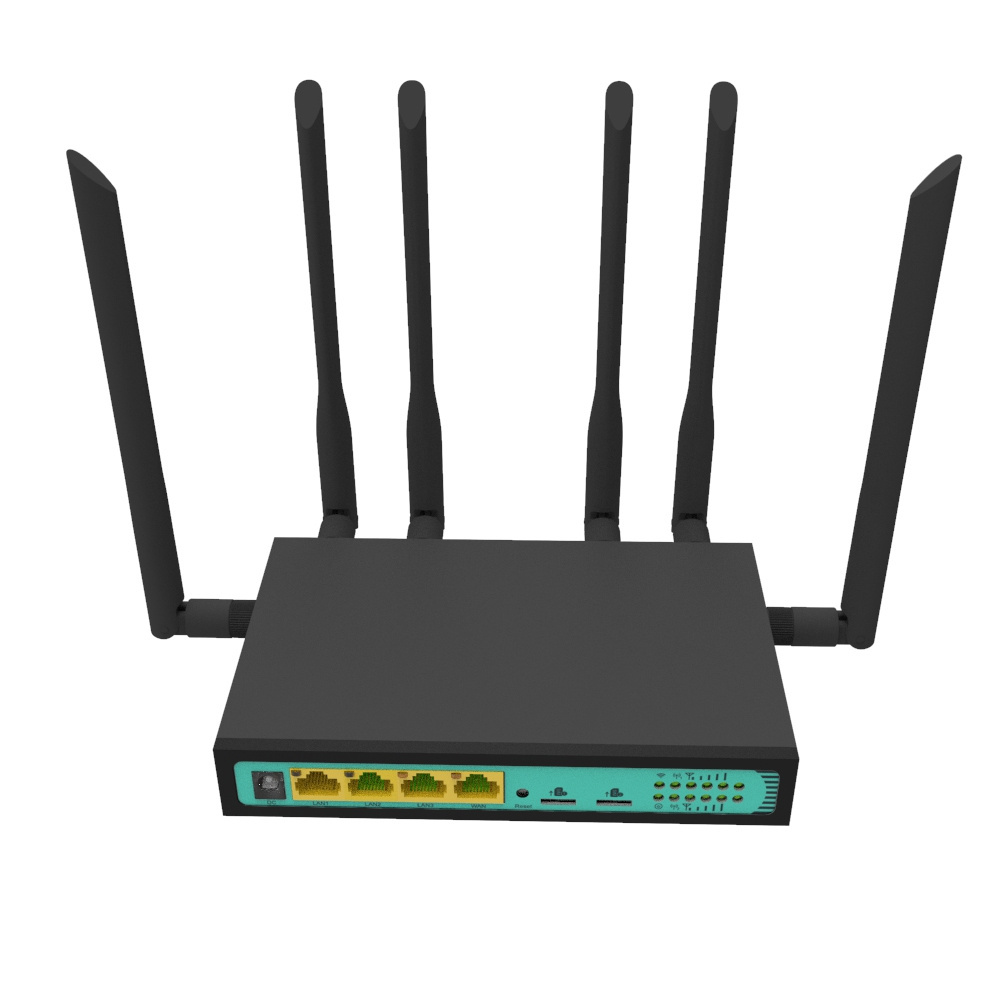

Dual sim lte 4G WiFi wireless router
-
Interface:
-
2pcs SIM card slot,2pcs Built-in PCIE interface
-
Chipset:
-
MT7628AN
-
Warranty:
-
12 Months
-
Work frequency:
-
2.4GHZ
-
Protocol:
-
IEEE802.11n/802.11g/802.11b/802.3/802.3u
-
wireless speed:
-
300Mps
-
Flash:
-
8MB
-
Ram:
-
128MB
-
chipset rate:
-
580Mhz
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
ZBT&OEM
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Dual sim lte 4G WiFi wireless router
-
Interface:
-
2pcs SIM card slot,2pcs Built-in PCIE interface
-
Chipset:
-
MT7628AN
-
Warranty:
-
12 Months
-
Work frequency:
-
2.4GHZ
-
Protocol:
-
IEEE802.11n/802.11g/802.11b/802.3/802.3u
-
wireless speed:
-
300Mps
-
Flash:
-
8MB
-
Ram:
-
128MB
-
chipset rate:
-
580Mhz
Product Description
Specification
Brief Introduction
Main Features
1. Using MT7628NN program, MIPS24KEc framework CPU, the main frequency is up to 580MHZ.
2. lMT7628NN chip integrates 2.4G WiFi function, the rate is up to 300Mbps.
3. l MT7628NN chip integrates 64MB DDR2, with 8MB Nor Flash.
4.1WAN, 3LAN 100M adaptive network port, support automatic flip (Auto MDI/MDIX) .
5. Support "one-key flash mode", that is, long press the reset button to restart the router ,and it will enter the recovry mode. 6. Built-in one mini-PCIe interface, realize 4G dial-up Internet access via USB2.0 bus.
7. Built-in mini-PCIe interface, its power can be controlled by GPIO.
7. Built-in mini-PCIe interface, its power can be controlled by GPIO.
8.Two external NANO SIM card (small card) interfaces, support SIM/USIM card.
9. External high gain omnidirectional antenna, wireless signal 360 degrees without dead angle.
10.This product supports the hardware watchdog function, and it will automatically restart the device when system is dead.
Pay attention to:
1) The above price is not including any 3G, 4G module.
2) That means that if you want to use SIM card to dial out Internet, you need to order 3G or 4G module.
Pay attention to:
1) The above price is not including any 3G, 4G module.
2) That means that if you want to use SIM card to dial out Internet, you need to order 3G or 4G module.
|
Hardware
|
MT7628AN/580MHZ
DDR2 64MB （Max support 256MB） SPI 8MB (Max support 32MB） |
|
Protocol
|
IEEE802.11n/802.11g/802.11b/802.3/802.3u
|
|
Wireless speed
|
300Mbps
|
|
Work frequency
|
2.4GHz
|
|
Output Power
|
11N: 17dBm±1dBm
11G: 17dBm±1dBm 11B: 19dBm±1dBm |
|
Receiving sensitivity
|
11N HT20 MCS7: -72dBm
11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm |
|
Antennas
|
2pcs 2.4G wifi antennas,4pcs 4G antennas,1GPS antennas interface，Peripheral SMA interface
|
|
Interface
|
1*10/100M WAN port Auto MDI/MDIX）;
3*10/100M LAN ports（Auto MDI/MDIX）; DC slot 2pcs SIM card slots 2pcs Built-in PCIE interfaces |
|
LED
|
light,2.4G,WAN,LAN1,LAN2,LAN3,
4G signal 1, 4G signal 2, 4G signal 3,4G signal 4,4G signal 5, |
|
Button
|
1*Reset button
|
|
Power supply
|
DC 12V/2A (Normal work),bear power range supply (5-32V)
|
|
Max
power consumption |
≤10W
|
