Quick Details
Quick Details
-
Weight (KG):
-
4800
-
Place of Origin:
-
China
Product Description

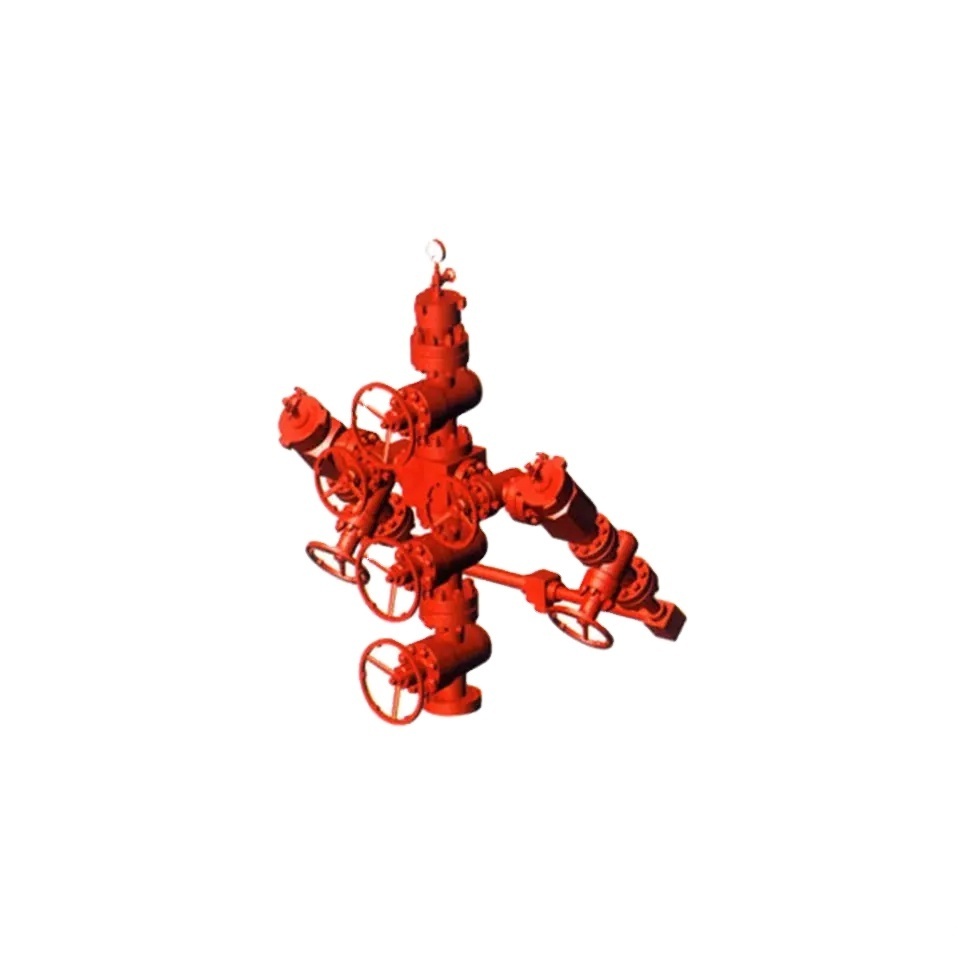

Christmas tree is the oil (gas) well production operations in wellhead pressure control and regulation of oil (gas) wells flow an important device.
◆ can be designed into a normal type or one-piece structure.
◆ can be equipped with a gas (liquid) moving the safety valve.
◆ wing or wings for the structure type.
◆ According to need, equipped with optional fixed or adjustable throttle two kinds of structures.
Specification
|
Main technical parameters
|
|
|
|
|
||||
|
额定工作压力psi(MPa)
|
公称通径in（mm）
|
最小垂直通径in(mm)
|
旁通通径in(mm)
|
油管外径in(mm)
|
||||
|
2000(13.8)
|
29/16"-71／16"
(65-180) |
61/4"-10"
(159-254) |
113/16"-41/16"
(46-103) |
1.90"-41/2"
(48.3-114.3) |
||||
|
3000(20.7)
|
29/16"-71/16"
(65-180) |
61/4"-10"
(159-254) |
113/16"-41/16"
(46-103) |
1.90"-41/2"
(48.3-114.3) |
||||
|
5000(34.5)
|
29/16"-71/16"
(65-180) |
61/4"-10"
(159-254) |
113/16"-41/16"
(46-103) |
1.90"-41/2"
(48.3-114.3) |
||||
|
10000(69.0)
|
29/16"-71/16"
(65-180) |
61/4"-10"
(159-254) |
113/16"-41/16"
(46-103) |
1.90"-41/2"
(48.3-114.3) |
||||
|
15000(103.5)
|
29/16"-71/16"
(65-180) |
61/4"-10"
(159-254) |
113/16"-41/16"
(46-103) |
1.90"-41/2"
(48.3-114.3) |
||||
|
20000(138.0)
|
29/16"-71/16"
(65-180) |
61/4"-10"
(159-254) |
113/16"-41/16"
(46-103) |
1.90"-41/2"
(48.3-114.3) |
||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
