Quick Details
-
Key word:
-
wireless remote control switch
-
Working voltage:
-
12V/24V
-
Output way:
-
self-lock,interlock, inching
-
Board size:
-
50*32.8*15mm
-
frequency:
-
315/433mhz/other
-
Quiescent current:
-
6mA
-
Match code way:
-
Learning code and learning code
-
Receiving sensitivity:
-
-105db
-
output singal:
-
output with switch signal / output with voltage
-
channel:
-
1channels
Quick Details
-
Max. Current:
-
6MA
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Key word:
-
wireless remote control switch
-
Working voltage:
-
12V/24V
-
Output way:
-
self-lock,interlock, inching
-
Board size:
-
50*32.8*15mm
-
frequency:
-
315/433mhz/other
-
Quiescent current:
-
6mA
-
Match code way:
-
Learning code and learning code
-
Receiving sensitivity:
-
-105db
-
output singal:
-
output with switch signal / output with voltage
-
channel:
-
1channels

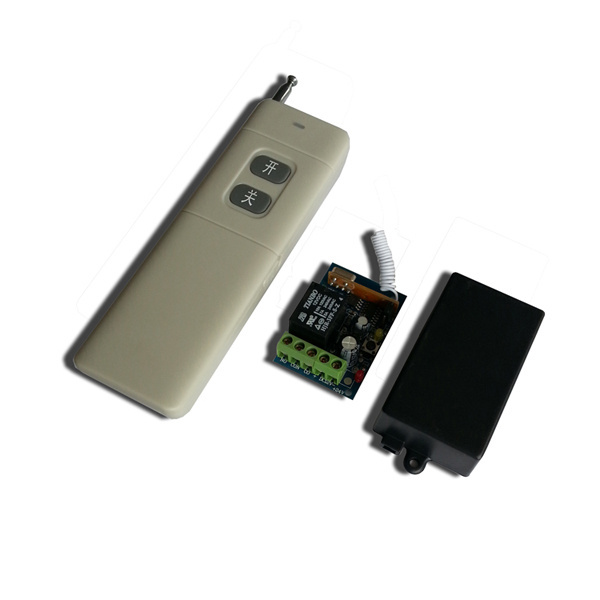

Long range 1km wireless remote control switch and 12v relay receiver
Features
It has 1 relays which can work for Water pump/Automation systems/Industrial control
Mainly used in electric doors, windows, lifting equipment, gateways, elevator, industrial control and security industry and other area.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It can learn 2260 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 18pcs different remote controls.
Main Technical Parameter:
RF Frequency: 433MHZ/315MHZ
Working Voltage: 12V DC, 24V DC, AC220V, optional
Working emperature:-20℃- +70℃
Quiescent Current: ≤10mA
Remote Control Distance: 1000 meter (in open environment)
Support remote control type: learning code,Fixed code
Output way : Momentary. Toggle .Latched Adjusted by Jumper
Code type: Learning code Add Controller by the Learning Button on the receiver
Wiring Method: Adjustable wiring terminal
Learning Remote Way
flashes after the light,This time that the switch has received a remote control signal; please click on the
button just used to hear the sound of the relay beating,
Remark: The controller can learn fixed code, learning code and other 16 different encoding, any button
remote control, in turn will be cleared in accordance with the earliest learn of the remote control.
Clear Remote Way
Press the learning button about 8 seconds, the leaning indicator from OFFto ON, it means clear succeed.
Application Scope
Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
Packing
Standard packing :each one in a plastic bag or white box;
500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.
Delivery
We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.
Before Order please confirm
1).What frequency you need, 315mhz or 433.92mhz or others ?
2). What chip do you need ? learning code, fixed code or rolling code ? or face to face copy code? or compatible with brand remote?
3). Do you need receiver do a set ?
4). How long distance you need ?
5).Do you need to printing logo in remote control? and other packing request?
Shenzhen champions Technology Co., Ltd.
it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.
1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.
2. How can i know this model work for me ?
if you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .
4. my remote handset is from brand can you do it ?
of course , they are ECA ,FAAC,Nice-Flors,DITC,SOMMER and so on at store
