Quick Details
-
Power:
-
2.2KW, 2.2kw
-
Weight:
-
3100kgs
-
Dimension(L*W*H):
-
4460x1260x1200
-
Name:
-
Hydraulic Automatic Waste Water Treatment Equipment Filter Press
-
Cake thickness:
-
25mm
-
Filter area:
-
40 (m2)
-
Color:
-
Blue
-
Type:
-
Automatice Filter Press
-
Advantage:
-
Easy Maintenance
-
Service:
-
12 Months
-
Filter plate size:
-
700x700mm
-
Control:
-
PLC
-
Certification:
-
GSG CE
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BEST
-
Voltage:
-
380V
-
Power:
-
2.2KW, 2.2kw
-
Weight:
-
3100kgs
-
Dimension(L*W*H):
-
4460x1260x1200
-
Name:
-
Hydraulic Automatic Waste Water Treatment Equipment Filter Press
-
Cake thickness:
-
25mm
-
Filter area:
-
40 (m2)
-
Color:
-
Blue
-
Type:
-
Automatice Filter Press
-
Advantage:
-
Easy Maintenance
-
Service:
-
12 Months
-
Filter plate size:
-
700x700mm
-
Control:
-
PLC
-
Certification:
-
GSG CE

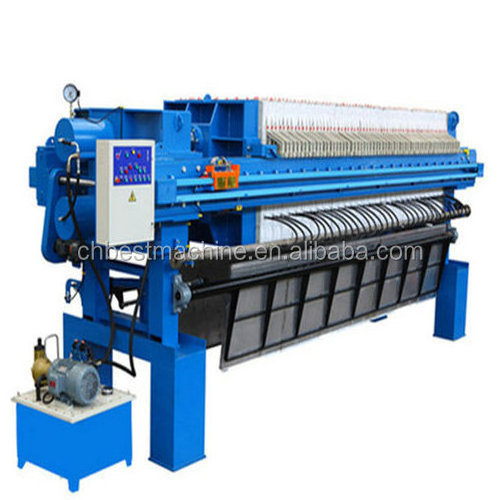

Hydraulic Automatic Waste Water Treatment Equipment Filter Press
Sewage cast iron filter press are fabricating a wide range of Cast Iron Filter Press using quality material. The range is checked on well-defined quality parameters by our quality controllers to ensure good filtration efficiency, temperature resistance, and longer service life. These are offered in various specifications as per the demands of our customers.Cast iron plates are made of high quality cast iron or nodular cast iron. It's used for high temperature material. The plate has features of high strength, high pressure, long life-span. It's widely used for solid liquid separation in petrochemical, metallurgy, oil etc.
Filter Ppress Structure
Filer Press Application
|
Model |
Size
|
filter square
|
frame size
|
plate qty pcs. |
power
|
pressure
|
weight kg |
|
BYY60 / 100 0-U |
2570×1020×1200 |
60 |
630×630×50 |
16 |
1.5
|
0.6 |
2 040 |
|
BYY8 0/ 100 0-U |
3360×1020×1200 |
80 |
|
32 |
|
|
3 240 |
|
BYY12 0/ 100 0-U |
4200×1020×1200 |
120 |
|
48 |
|
|
3 440 |
|
BYY1 40/ 120 -U |
6 200×1240×1620 |
140 |
12 00× 12 00×60 |
4 9 |
|
|
5 700 |
|
BYY18 0/ 12 0-U |
7 800×1250×1620 |
180 |
|
5 9 |
|
|
6 060 |
|
BYY20 0/ 12 00-U |
7 400×1250×1620 |
200 |
|
7 9 |
|
|
6 360 |
The Benefits:
1.Structure is made of Q235 high quality carbon steel. It adopts automatic welding, solder side is flat, weld-joint is solid and durable, it can perfectly avoid distortion. It has reached the advanced technology in Europe and the United States.
2.Main-beam is processed by high speed centrifugal sand blasting to remove rust and iron oxide scale, then painted by epoxy micaceous iron primer to get better rustproof and corrosion resistance effect.
3.Side bar is covered by stainless steel 304 shell to protect itself from wearing. The smooth surface of shell also make plate shifting more easily.
4.Plate is made from PP. It is tasteless and non-poisonous, safe with food and pharmacy industry. It is characterized by light weight, easy operation, acid and alkali resistance, high temperature and high pressure resistance.
5.Hydraulic system adopts ABB motor, it is steady in operation and easy in maintenance. Pistons are made of steel #45 after surface specially processed to get better anti-wearing and high hardness performance.
6.Electric control cabinet adopts renowned electrical components, it can realize auto closing, auto opening, auto pressure maintaining and trouble-free operation.
Pre-sale service
:
1.24 hours online service
.
2.
Help you to select suitable model
3.
Design totally according to your requirements
After-sale service:
1.
Provide 12 months warranty period and you will have our technology support forever
2.
Engineering available to offer the service to your machinery overseas
Welcome to visit our factory anytime
