Quick Details
-
Brand Name:
-
Neutral
-
Model Number:
-

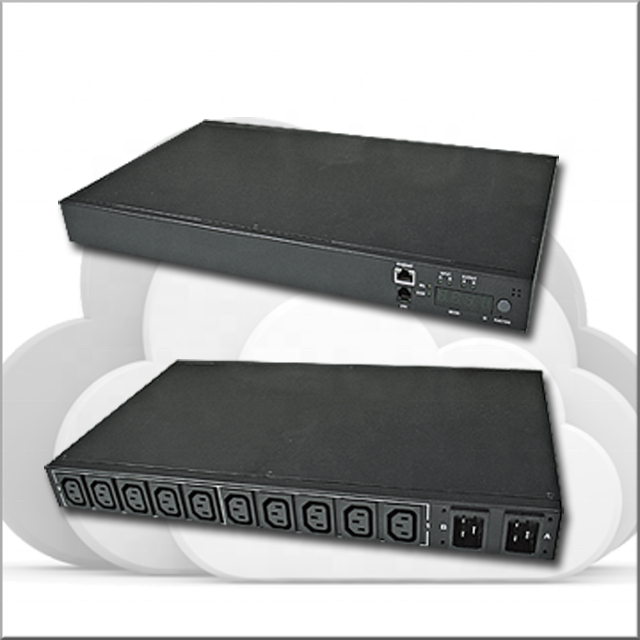

ATS-1623K-10N1
-
The Max. Current:
-
16A
-
Output:
-
10 x IEC 320 C13
-
Input:
-
2 x IEC 320 C14
-
Remote Power Monitoring:
-
kWh, A, V, PF
-
Certificate:
-
CE
-
Color:
-
Black
Quick Details
-
Voltage:
-
230V, 230V
-
Current:
-
16A
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Neutral
-
Model Number:
-
ATS-1623K-10N1
-
The Max. Current:
-
16A
-
Output:
-
10 x IEC 320 C13
-
Input:
-
2 x IEC 320 C14
-
Remote Power Monitoring:
-
kWh, A, V, PF
-
Certificate:
-
CE
-
Color:
-
Black
Function:
- Dual input powers provide automatically redundant power protection.
- Built-in web server, manager can real time to monitoring the current consumption of the ATS.
- Built-in true RMS current meter.
- Setup easily, meter can read the IP address directly.
- Provide voltage, frequency, power factor, active power, apparent power and kWh information through web interface and SNMP.
- Provide audible alarm when the power consumption over the threshold of warning and overload.
- Send the email and traps when the power consumption exceed the trigger value of warning or overload to the PDU.
- Provide utility, it can monitor a large mount of PDU at the same time.
- Support the SNMP and provide MIB for ATS.
- Indicate input and output status with LED.
- Support to monitor temperature and humidity. (Need to purchase option accessory)
|
Output |
Input |
||
|
Voltage |
200-240 VAC |
Voltage |
200-240 VAC |
|
Max. Current |
16 A |
Frequency |
50/60Hz, full range |
|
Outlet |
(10) C13 |
Max. Capacity |
3840 VA |
|
Output Status |
(2) Green LED |
Connection |
(2) C20 Detachable Power cord |
|
Overload Protection |
None |
Input Status |
(2) Green LED |
|
Measurement |
Other |
||
|
Current |
+/-1%+/-0.1A @0.2A ~ 20 A |
Transfer Time |
8~16ms |
|
Voltage |
+/- 1% +/- 1V @80V~260V |
ENET Connection |
(1) RJ45 |
|
Active Power |
+/- 1% +/- 5W @50W~8000W |
ENV Connection |
(1) RJ11 |
|
Apparent Power |
+/- 1% @50VA~8000VA |
Function Selection |
(1) Button |
|
Frequency |
+/- 1% @50~65Hz |
DHCP Ind. |
(1) Green LED |
|
Power Factor |
+/- 1% @0.1~1.0 |
Info. Display |
4 digits of 7 Segments |
|
kWh |
.001kWh~99999.999kWh, (+/- 1% @50W~8000W) kh=1.0 |
|
|
|
Dimension/Weight |
Operation |
||
|
Net Size |
432 x 260 x 44.8 mm |
Operation Temp. |
0 ~ 45℃ |
|
Net Weight |
5.0 kg |
Operation Humid. |
0% ~ 90% RH |
|
Package Size |
490 x 330 x 155 mm |
Storage Temp. |
-20℃ ~ 65℃ |
|
Package Weight |
5.6 kg |
Storage Humid. |
0% ~ 90% RH |
|
Approval |
|
|
|
|
Certification |
CE |
|
|
|
Warranty |
2 years |
|
|
