Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOLIMILL
-
Voltage:
-
220V-660V
-
Dimension(L*W*H):
-
According to machine model
-
Power (kW):
-
1.5 kW
-
Product name:
-
fertilizer mixing machine powder mixer V machine
-
Key words:
-
small powder mixer
-
Machine Type:
-
V Mixing powder
-
Capacity:
-
180-4000L
-
Speed:
-
90-2000rpm
-
Usage:
-
dry guanule materials,dry powder
-
Total power:
-
1.5-18.5KW
-
Type:
-
mixing machine
Quick Details
-
Barrel Volume (L):
-
180
-
Max. Loading Volume (L):
-
90 L
-
Weight (KG):
-
350 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOLIMILL
-
Voltage:
-
220V-660V
-
Dimension(L*W*H):
-
According to machine model
-
Power (kW):
-
1.5 kW
-
Product name:
-
fertilizer mixing machine powder mixer V machine
-
Key words:
-
small powder mixer
-
Machine Type:
-
V Mixing powder
-
Capacity:
-
180-4000L
-
Speed:
-
90-2000rpm
-
Usage:
-
dry guanule materials,dry powder
-
Total power:
-
1.5-18.5KW
-
Type:
-
mixing machine

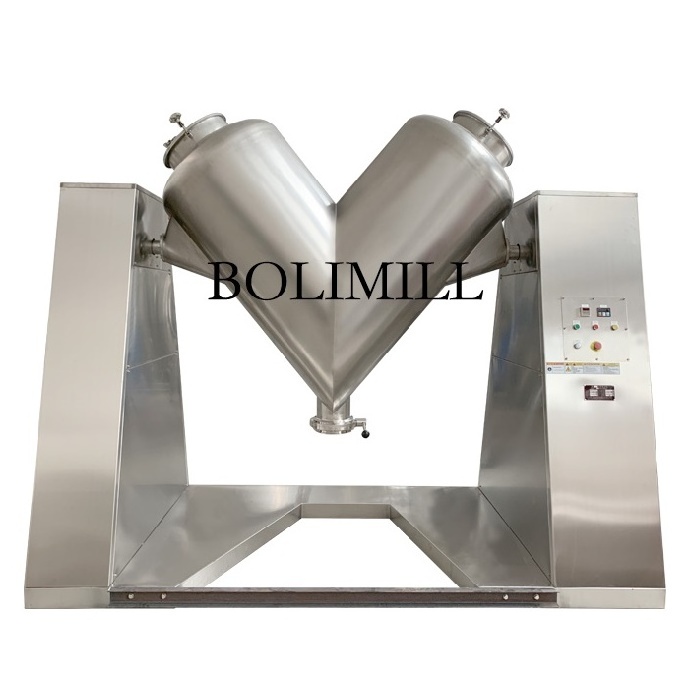

Fertilizer mixing machine powder mixer V machine chemcal mixing equipment
♦ Introduction of small powder mixer
This machine is designed for mixing two or more dry power or granule raw materials from chemical industry, foodstuff industry and so on.
♦ Advantage of small powder mixer
The structure of this machine is unique. Its mixing efficiency is high and no dead corner.
It is made of stainless steel 304 /316L. Its inner and outer walls are processed through polishing. Its
appearance is beautiful. Its mixing is uniform. Its scope of application is wide.
The forced stirrer can also be equipped, according to request of client, to meet the requirements of raw
materials like pretty fine powder, cake and certain moist stuff.
powder mixer / water powder milk mixer /small powder mixer
V-mixer Technical Data
|
Model |
V-300 |
V-500 |
V-1000 |
V-1500 |
V-2000 |
V-2500 |
V-3000 |
V-4000 |
|
Full volumem 3 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
4.0 |
|
Production capacity kg/batch |
60 |
100 |
250 |
400 |
600 |
800 |
1200 |
1500 |
|
Mixing time min |
6-10 |
6-12 |
6-15 |
8-20 |
8-20 |
8-20 |
8-20 |
10-30 |
|
Turning speed of cylinderrpm |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
10 |
|
Power kw |
1.1 |
2.2 |
4 |
4 |
5.5 |
7.5 |
11 |
15 |
|
Overall size of main frame
|
1850×880
|
2200×1100
|
2700×1500
|
2950×1650
|
3250×1650
|
3450×1850
|
3650×1950
|
3800×2150
|
|
Weight (kg) |
310 |
550 |
900 |
1200 |
1400 |
1800 |
2100 |
2800 |
