Quick Details
-
Place of Origin:
-
Germany
-
Brand Name:
-
Plastic water storage tank
-
Weight:
-
50
-
Product name:
-
Plastic water storage tank
-
Material:
-
Carbon Steel
-
Application:
-
Chemcial Storage
-
Usage:
-
Store Liquid
-
Name:
-
Container Oil Storage Tank
-
Keywords:
-
Liquid Cylinders
Quick Details
-
Capacity:
-
500L
-
Max Working Pressure(MPa):
-
25 MPa
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Germany
-
Brand Name:
-
Plastic water storage tank
-
Weight:
-
50
-
Product name:
-
Plastic water storage tank
-
Material:
-
Carbon Steel
-
Application:
-
Chemcial Storage
-
Usage:
-
Store Liquid
-
Name:
-
Container Oil Storage Tank
-
Keywords:
-
Liquid Cylinders
Product details
|

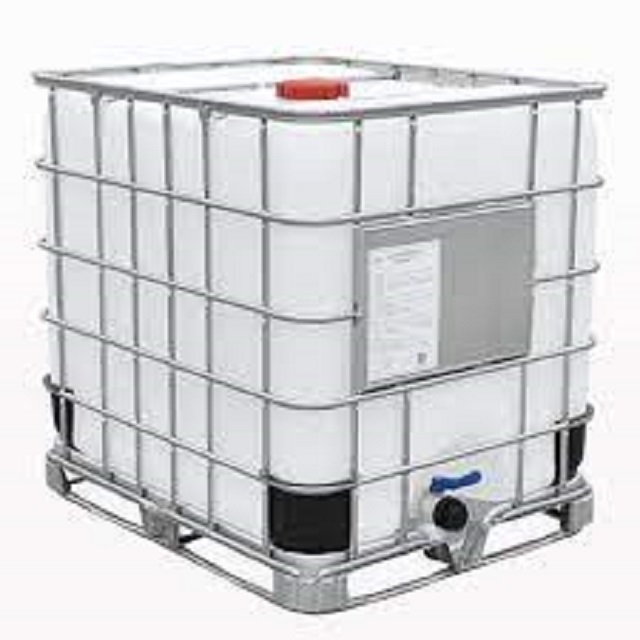

The Technical Date of 1000L HDPE ibc tank |
||
|
Item Specification Tolerance |
||
|
Item |
Specification |
Tolerance |
|
Rated Volume(L) |
1000 |
/ |
|
Brimful Volume(L) |
≥1050 |
/ |
|
Overall Dimension(mm) |
1200x1000x1150 |
±5 |
|
Top cap Mouth diameter |
142(diameter of thread SLCS 160mm,Pitch 7mm) |
±2 |
|
Weight for Inner Tank(kg) |
15.5 |
±0.5 |
|
Weight for IBC Tank(kg) |
58 |
±2 |
|
Valve outside diameter(mm) |
50 |
±1 |
|
Wall Thickness(min) |
≥1.5mm |
/ |
|
Outlet Valve(discharge valve) |
DN50 ball valve& butterfly valve |
/ |
|
Height for Pallet(mm) |
120 |
/ |
|
Height for forklift holes(mm) |
90 |
/ |
|
Length for forklift holes(mm) |
795 |
|
Other detailed date for our IBC Tank 1000L
1.Model:YH-1000L
2.UNMark:each IBC Tank will mark exclusive UN Uumber
3.Overall dimensiobn:1200*1000*1150mm(±5mm)
4.Max Allowable Weight:2013 kg
5.Tare Weight:58±2kg
6.Allowable Stacking Weight:4056kg
7.Material of inner Receptacle: HDPE
8.Material of outer Casing :Galvanized steel DCD51D
9.Material of pallet: Galvanized steel DC53D
10.Material of seal :EPDM,FKM,Nitrile,PE
11.Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50
12.Stacking Test Weight;4056kg
13.Dropping Test Height:1.9mm
14.Hydraulic Test pressure:100kpa
15.Vibration Test:Amplitude:25±5%mm,Time Duration:1 hour
