Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Wolange
-
Model Number:
-
W-668+W-20
-
Warranty:
-
18 Months
-
product name:
-
Tire Changer Machine
-
model:
-
W-668
-
Inside clamping:
-
13-24"
-
Outside clamping:
-
10''-22''
-
colour:
-
Red/blue/grey
-
Bead Breaking Force:
-
3000kg
-
Place of origin:
-
China
-
Certification:
-
CE / ISO9001
-
Usage:
-
Car Tire Repairing
-
Net Weight:
-
245kg
Quick Details
-
Motor Power:
-
1.1kw/0.75kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110v/220v/240v/380v,50Hz/60Hz
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Wolange
-
Model Number:
-
W-668+W-20
-
Warranty:
-
18 Months
-
product name:
-
Tire Changer Machine
-
model:
-
W-668
-
Inside clamping:
-
13-24"
-
Outside clamping:
-
10''-22''
-
colour:
-
Red/blue/grey
-
Bead Breaking Force:
-
3000kg
-
Place of origin:
-
China
-
Certification:
-
CE / ISO9001
-
Usage:
-
Car Tire Repairing
-
Net Weight:
-
245kg
Products display
|
Product Name
|

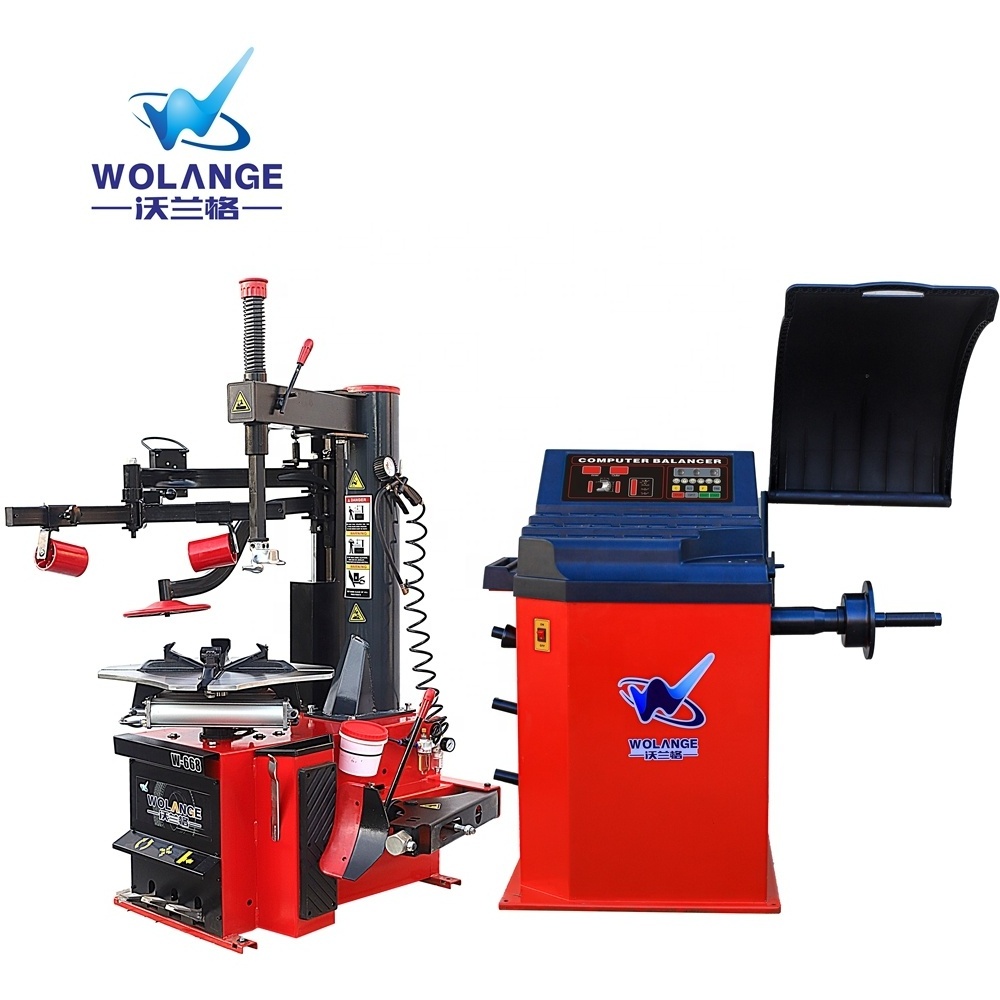

Swing arm tyre changer with left help arm
|
Product Model
|
W-668
|
|
Power
|
0.75Kw/1.1Kw
|
Voltage
|
110v/220v/240v/380v,50Hz/60Hz
|
|
Bead Breaking Force
|
3000kg
|
Working Pressuer
|
8-10bar
|
|
Outside Clamping
|
10"-22"
|
Inside Clamping
|
13"-24"
|
|
Maximum width
|
3-15"
|
Maximum Wheel Diameter
|
1040mm
|
|
Packing Dimension
|
1115*900*1000
|
Packing
|
Plywood Box
|
|
Volume
|
1m³
|
Net Weight
|
245kg
|
|
Working Noise
|
<70db
|
Warranty Service
|
18 Months
|
|
Certification
|
CE Approved
|
Place of origin
|
China
|
Products display
Feature:
1.With three kinds of aluminum alloy rim program and static program.
2.There are self-calibration and self-diagnosis functions.
3.It is equipped with the standard protection cover which has been set up properly.the machine starts with put down the cover and stops when lift up the cover. Orthe operator can press the START button.
|
Product Name
|
Wheel balancer
|
Product Model
|
W-20
|
|
Power
|
0.25Kw
|
Voltage
|
100v/110v/220v 50-60HZ
|
|
Max.Wheel Diameter
|
1000mm
|
Balancing Speed
|
≤200r/min
|
|
Wheel Width
|
1.5"-20"
|
Balance Precision
|
±1g
|
|
Packing Dimension
|
1015*810*1210
|
Rim Diameter
|
10"-24"
|
|
Volume
|
1m³
|
Packing
|
Plywood Box
|
|
Working Noise
|
<70db
|
Net Weight
|
110kg
|
|
Certification
|
CE Approved
|
Warranty Service
|
18 Months
|
IMD film
It features with strong capability of resistance to the scratch and corrosion and having long life performance. The press key with high strength and cannot be damaged after press for 0.5 million times. The temperature range is -10Cto 50C.In this range, it will not be peeling, form bumps and tack-less.
LED display
The top cover of injection mouldinq process ensures beauty and strength, and the multi-station toolbox facilitates the classification of balance blocks
The motor is certified by ce
1.The motor is certified by ce, the noise of pure copper core is low.
2.Compound welded box, internal structure with "u" groove reinforcement welding, to ensure the stability of the chassis, and can withstand a larger weight of tires.
Precision spindle phosphating treatment
1.Phosphating treatment of Precision spindle, anti-corrosion and anti-rust,cooperates with low resistance bearing to ensure data accuracy.
2.Extended high degree of precision shaft balance wide tire without oressure. (40 chromium special memory metal, tough and undeformed)
Vertebral body
Balance pliers
Quick nut
Balance the caliper
