Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
LONGI
-
Model Number:
-
LR5-72HTD 560-585M
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2278*1134*30mm
-
Product name:
-

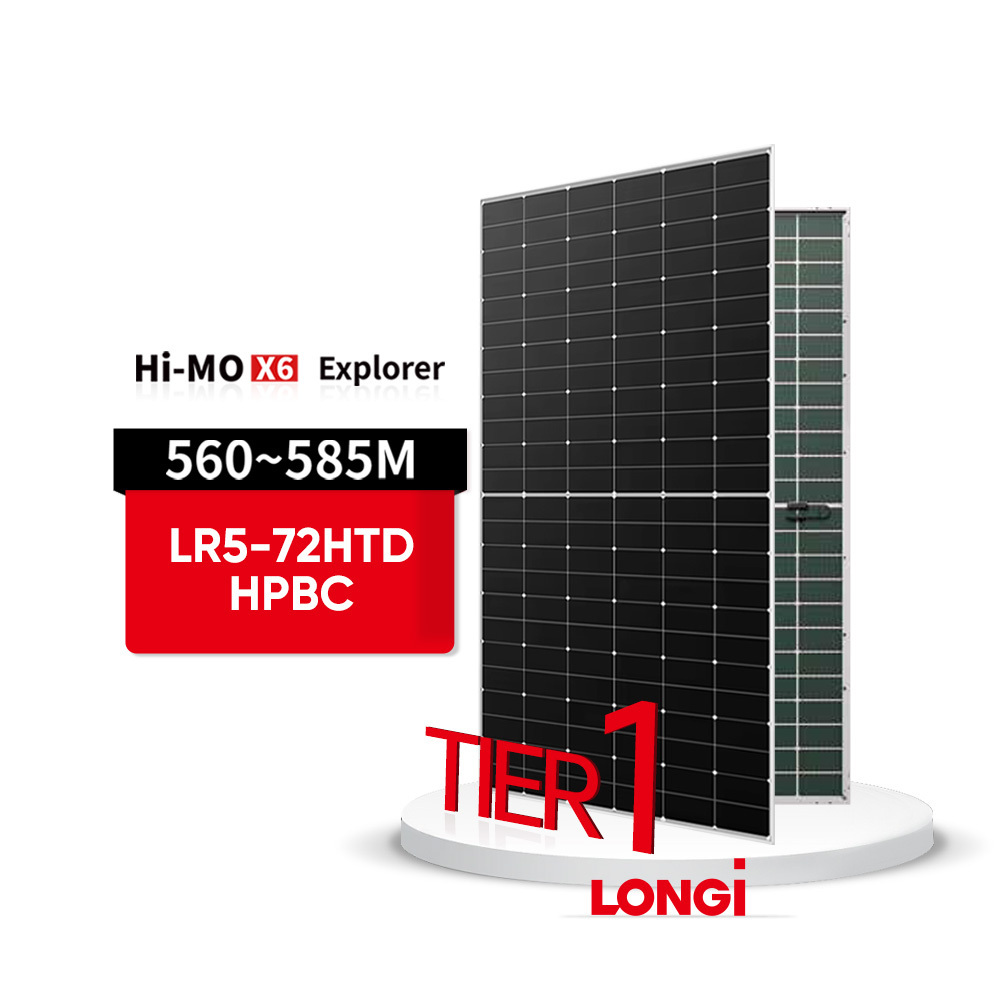

Longi Hi-MOX6 144 Half Cells Solar Panel
-
Application:
-
Solar Power System
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Keyword:
-
Solar Panel Pv Module
-
Solar cell:
-
182*182mm
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4mm2
-
Weight:
-
31.8 kg
-
Frame:
-
Black Anodized Aluminium Alloy
-
Connector:
-
MC4 EVO2 / TS4*
Quick Details
-
Cell size:
-
182mm*182mm
-
Type:
-
PERC, Half Cell, Bifacial, All Black, hbc, Standard
-
Panel Efficiency:
-
21.7%-22.6%
-
Warranty:
-
25 years
-
Brand Name:
-
LONGI
-
Model Number:
-
LR5-72HTD 560-585M
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2278*1134*30mm
-
Product name:
-
Longi Hi-MOX6 144 Half Cells Solar Panel
-
Application:
-
Solar Power System
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
-
Keyword:
-
Solar Panel Pv Module
-
Solar cell:
-
182*182mm
-
Junction Box:
-
IP68 Rated
-
Cable:
-
4mm2
-
Weight:
-
31.8 kg
-
Frame:
-
Black Anodized Aluminium Alloy
-
Connector:
-
MC4 EVO2 / TS4*
Product Description
Product Parameters
|
Module Type
|
LR5-72HTD-570M
|
LR5-72HTD-575M
|
LR5-72HTD-580M
|
LR5-72HTD-585M
|
|
Testing Condition
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
|
Maximum Power (Pmax/W)
|
570 426
|
575 430
|
580 433
|
585 437
|
|
Open Circuit Voltage (Voc/V)
|
52.00 48.82
|
52.15 48.96
|
52.30 49.10
|
52.45 49.25
|
|
Short Circuit Current (Isc/A)
|
14.00 11.31
|
14.06 11.36
|
14.13 11.41
|
14.19 11.46
|
|
Voltage at Maximum Power (Vmp/V)
|
43.55 39.74
|
43.7 39.88
|
43.85 40.01
|
44.00 40.15
|
|
Current at Maximum Power (Imp/A)
|
13.09 10.72
|
13.16 10.77
|
13.23 10.83
|
13.30 10.89
|
|
Module Efficiency(%)
|
22.1
|
22.3
|
22.5
|
22.6
|
Details Images
Relative Products
Production Line
Product Package and details
Delivery and Payment
|
Payment Terms
|
T/T
|
EXW
|
30% in advance for deposit payment, the balance payments will be paid before shipment.
|
|
|||
|
|
|
FOB
|
|
|
|||
|
|
|
CFR/C&F
|
30% in advance for deposit payment, the balance will be paid against copy of B/L
|
|
|||
|
|
|
CIF
|
|
|
|||
|
|
L/C
|
For the amount of one shipment above 50,000 usd, L/C at sight is acceptable.
|
|
|
|||
|
|
West Union
|
|
|
|
|||
|
|
Paypal
|
|
|
|
|||
|
Delivery Time
|
7~25 days after receiving the payment or the deposit payment
|
|
|
|
|||
We recommend you use alibaba Insurance Order Online, you will enjoy
100% Products quality protection
100% On time shipment
100% Payment safety protection
The third party inspection is optional
