hard rock used portable water well drilling rigs for sale

hard rock used portable water well drilling rigs for sale

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2800

≥5 Pieces

US $2750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 700kg(without engine)

Color:: Yellow Red or as customer required

Name:: 2019 hot sale rotary portable borehole drilling rig

Drilling depth:: 30-200m

Model:: GK200-2

Application:: Geological Exploration/soil test/water well/core/mine

Product name:: hard rock used portable water well drilling rigs for sale

Certification:: ISO9001

Quick Details

Place of Origin:: Hebei, China

Voltage:: 220v/380v

Dimension(L*W*H):: 2050*1150*1600mm

Weight:: 700kg(without engine)

Color:: Yellow Red or as customer required

Name:: 2019 hot sale rotary portable borehole drilling rig

Drilling depth:: 30-200m

Model:: GK200-2

Application:: Geological Exploration/soil test/water well/core/mine

Product name:: hard rock used portable water well drilling rigs for sale

Certification:: ISO9001

China small hydraulic diesel electric engine spt water drilling rig

Product Description

Gk-200-2 drilling machine is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.

1 Application and scope

1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.

1.2 Geological core drilling, physical prospecting.

1.3 Small grout Confucius, drill hole drilling.

1.4 Small well drilling.

Drilling Rig

Drilling diameter(mm)

75,91,110,130,150,300

Drilling depth (m)

200,150,100,70,50,30

Drill pipe diameter (mm)

42,50

Drilling angle(°)

90~75

Equipment size(L * B * H)

1730 * 860 * 1360 (mm)

Rig weight (except engine)

700

Gyrator

Spindle speed (four gear) (r/min)

115,230,505,1010

Spindle travel(mm)

450

Spindle no-load lifting maximum moving speed(m/s)

0.05

Spindle no load drop maximum movement speed(m/s)

0.067

Spindle maximum feed pressure(KN)

Spindle maximum lifting force(KN)

Spindle maximum output torque(KN• m)

1.5

Winch assembly

Winch maximum lifting force (single rope)

Reel speed (r/min)

20,39,85,170

Reel circumferential speed(m/s)

0.172,0.345,0.738,1.476

Reel diameter(mm)

140

Wire rope diameter(mm)

9.3

Wire rope density (m)

Brake diameter(mm)

278

Brake band width (mm)

Water pump
Pump type	Horizontal single cylinder double acting
Maximum displacement (motor)(L/min)	95(77)
Work pressure (Mpa)	1.2
Cylinder diameter (mm)	80
Piston stroke(mm)	100
The maximum allowable pressure (Mpa)	1.2

Oil pump

Oil pump type

YBC -20/125

Nominal pressure (Mpa)

12.5

Rated flow(ml/r)

Rated speed(r/min)

800-2500

Diesel engine or motor

Diesel engine

1115

Rated power (KW)

16.2

Rated speed (r/min)

2200

Rated pressure(Mpa)

12.5

Motor type

Y160M - 4

Rated power (KW)

Rated speed (r/min)

1460

Rig accessories

why choose us?

1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.

2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.

3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy to operation,free to maintenance.

4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.

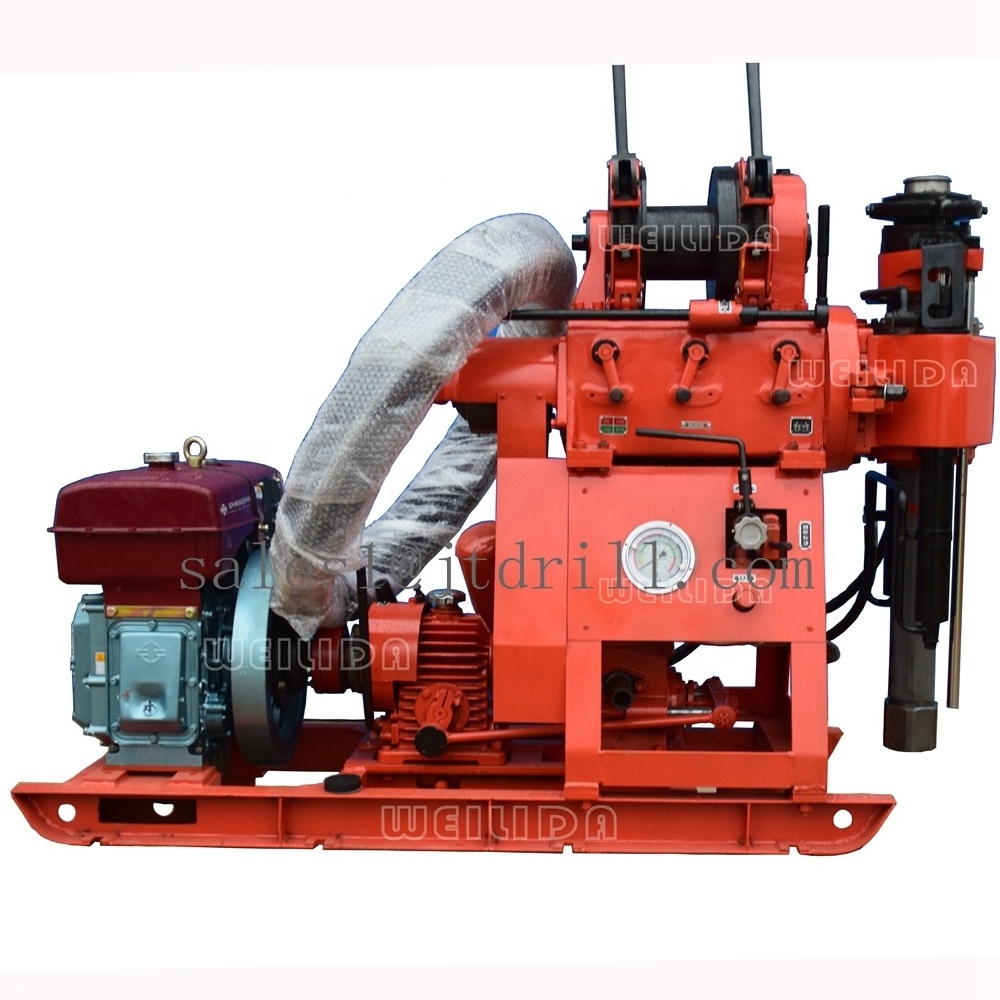

Detailed picture

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A:Sorry, free sample is not available.

Q: What is your terms of payment ?

A: Usually we accept T/T 30% in advance, then pay the 70% T/T before shipping.

Q:How to order?

A:Please send us your inquiry with detail item description or with Model number.

If there is no packing demand we take it as our regular exported standard packing.

We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.

After you send your detail requirement, we provide quotation to you.

Q:Can I expect a quality products?

A:All the production and processing are strictly according to international standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
