Quick Details
-
Core Components:
-
Precision
-
Product Name:
-
20CrMnTi BT40 APU drill chuck tool holder for milling machine
-
Material:
-
20CrMnTi
-
Hardness:
-
HRC48-HRC52
-
Run out accuracy:
-
≤0.06mm
-
Clamping range:
-
1-13mm
-
Standard:
-
JIS MAS 403 BT
-
Application:
-
CNC Machine
-
Size:
-
Standard Size
-
Inspection:
-
100% inspection
-
Customized:
-
available
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WARWICK
-
Model Number:
-
BT40-APU16-105L
-
Core Components:
-
Precision
-
Product Name:
-
20CrMnTi BT40 APU drill chuck tool holder for milling machine
-
Material:
-
20CrMnTi
-
Hardness:
-
HRC48-HRC52
-
Run out accuracy:
-
≤0.06mm
-
Clamping range:
-
1-13mm
-
Standard:
-
JIS MAS 403 BT
-
Application:
-
CNC Machine
-
Size:
-
Standard Size
-
Inspection:
-
100% inspection
-
Customized:
-
available

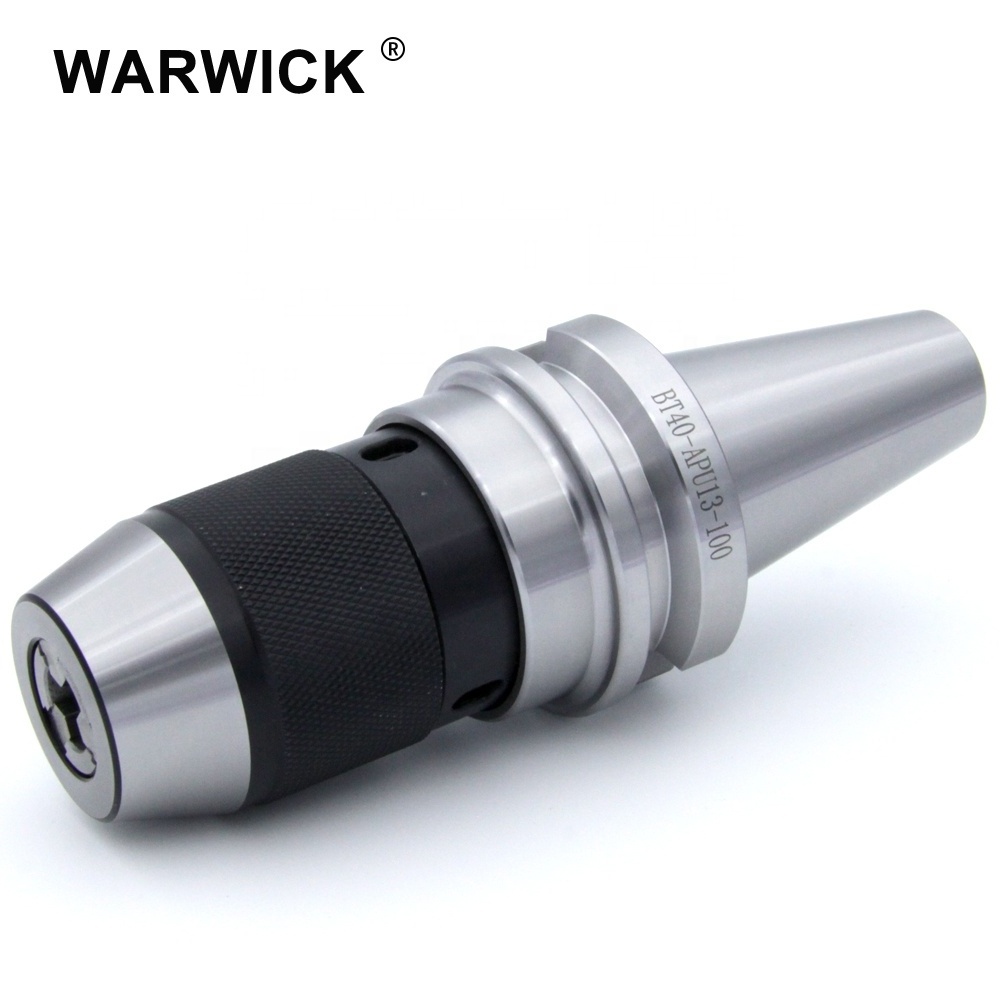

20CrMnTi BT40 APU drill chuck tool holder for milling machine
| Order | L | L1 | D | d | ||
| BT30 | APU08-80 | 128.4 | 80 | 38 | 1--8 | |
| APU13-100 | 148.4 | 100 | 50 | 1--13 | ||
| BT40 | APU08-80 | 145.4 | 80 | 38 | 1--8 | |
| APU13-110 | 175.4 | 110 | 50 | 1--13 | ||
| APU16-110 | 175.4 | 110 | 58 | 3--16 | ||
| BT50 | APU13-120 | 221.8 | 120 | 50 | 1--13 | |
| APU13-180 | 281.8 | 180 | 50 | 1--13 | ||
| APU16-120 | 221.8 | 120 | 58 | 3--16 | ||
| APU16-180 | 281.8 | 180 | 58 | 3--16 | ||
Production Features:
1.The shank and keyless drill chuck are combined together so as to avoid the drill chuck slipping out for heavy-duty and high speed cutting and improve the precision.
2. Not be used for gripping draw bolt and milling tools, instead of drill bit and reamer .
3. APU drill chuck shorten the length while length the working life of tool .
4. Each APU drill chuck attached 1pc APU wrench .
5. The APU leaning precision is 0.06mm, like the need high accuracy request, please use ER or the SK serise .
6. The spanner,pull stud must purchase alone.
