Quick Details
-
Dimension(Long * Breadth * High):
-
6800*2400*2950mm
-
Warranty:
-
1 Year
-
Model Number:
-
935
-
Certification:
-
CE
-
name:
-
Haoxin 935 model Chinese wheel loader 3 ton loader
-
Engine:
-
Deutz WP6G125E22 /Cummins 6BT5.9-C125
-
rated power:
-
92 kw
-
Operating weight:
-
7000kg
-
rated load:
-
3000 kg
-
dimension:
-
6800*2400*2950 mm
-
Dumping Height(mm):
-
3600 mm
-
Bucket capacity:
-
1.6 m3
-
Tyres:
-
16/70-24
-
warranty:
-
1 year
Quick Details
-
Rated Load:
-
3000kg
-
Brand Name:
-
HaoXin
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6800*2400*2950mm
-
Warranty:
-
1 Year
-
Model Number:
-
935
-
Certification:
-
CE
-
name:
-
Haoxin 935 model Chinese wheel loader 3 ton loader
-
Engine:
-
Deutz WP6G125E22 /Cummins 6BT5.9-C125
-
rated power:
-
92 kw
-
Operating weight:
-
7000kg
-
rated load:
-
3000 kg
-
dimension:
-
6800*2400*2950 mm
-
Dumping Height(mm):
-
3600 mm
-
Bucket capacity:
-
1.6 m3
-
Tyres:
-
16/70-24
-
warranty:
-
1 year
Haoxin 935 model Chinese wheel loader 3 ton loader
1. CE approved wheel loader
2.Best all configuration, best price
3.Joystick & pilot control, quick hitch device, various attachments
4.Heater and seal european appearance cab, elegant and generous
5.Air-condition, wide vacuum tyres
6.Luxury and adjustable steering wheel and seat, comfortable operation environment
7.New preheater on engine
Specification:
|
Specification |
overall weight(kg) |
7000 |
|
L×W×H ( mm ) |
6800 ×24 00 × 2950 |
|
|
rated bucket capacity(m3) |
1.6 |
|
|
Rated load(kg) |
3000 |
|
|
Maximum dump height (mm) |
3600 |
|
|
Bucket indicator |
Yes |
|
|
Max. breakout force(KN) |
138 |
|
|
Engine |
Model |
Deutz WP6G125E22 |
|
Optional |
Cummins 6BT5.9-C125 |
|
|
Type |
In line, direct injection, four-stroke, liquid cooled |
|
|
Rated power ( kw ) |
92kw |
|
|
Rated speed(r/min) |
2200 |
|
|
Transmission system |
Model of torque converter |
YJ305 |
|
Type |
Single stage,3 elements |
|
|
Gearbox type |
Axial full power shift transmission |
|
|
Gear shift |
2 gears ahead,2 gear astern |
|
|
Hydraulic system |
Distribution of work valve |
DF25 |
|
Working pump |
VHP2063,Y1018 |
|
|
Steering system |
Type |
Articulated and hydraulic steering |
|
Max. turning angle |
lift and right 36.5±1° |
|
|
Min turning radius(mm) |
5200 |
|
|
Brake system |
Brake type |
Air-break brake |
|
Tires |
Standard tires |
16/70-24 |

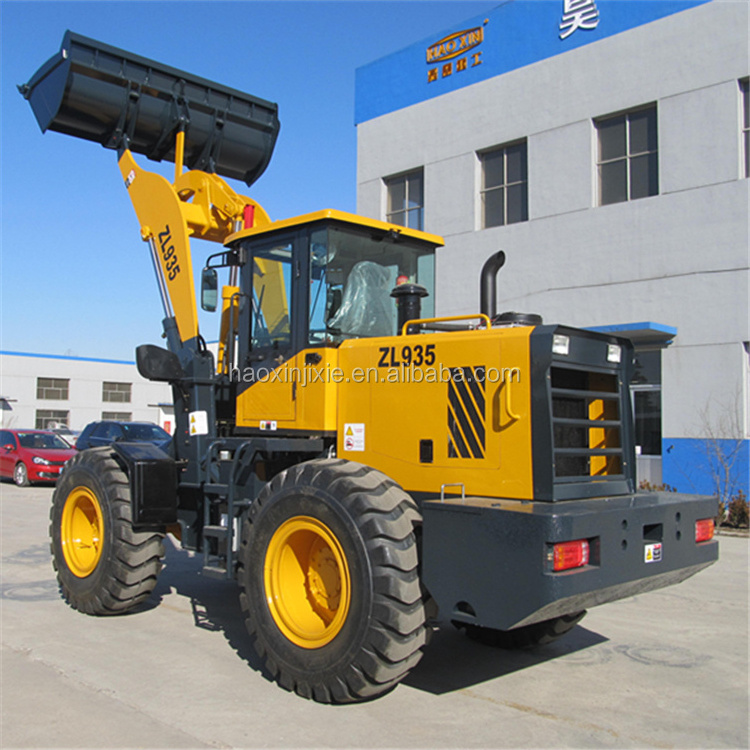

Wheel loader pictures:
