Quick Details
-
Model Number:
-
KCD3-2-JK
-
Max. Current:
-
16A/20A
-
Mechanical Life:
-
50000 Cycles
-
rectangular case:
-
30X22
-
Life cycles::
-
Up to 50,000 cycles
-
Maxi. currenty and volt.:
-
Up to 22A ,250VAC
-
Circuit:
-
On-off, on-off-on, momentary
-
Heat and fire resistance:
-
GWFI 850° C
-
Waterproof level:
-
IP55
-
Material standard:
-
UL 94 V2 flammability
-
Certificates:
-
UL VDE TUV RoHS REACH
-
Color:
-
Any color available
-
Application:
-
oil radiator ,electrical fan heater
Quick Details
-
Max. Voltage:
-
125V/250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TRANQUER
-
Model Number:
-
KCD3-2-JK
-
Max. Current:
-
16A/20A
-
Mechanical Life:
-
50000 Cycles
-
rectangular case:
-
30X22
-
Life cycles::
-
Up to 50,000 cycles
-
Maxi. currenty and volt.:
-
Up to 22A ,250VAC
-
Circuit:
-
On-off, on-off-on, momentary
-
Heat and fire resistance:
-
GWFI 850° C
-
Waterproof level:
-
IP55
-
Material standard:
-
UL 94 V2 flammability
-
Certificates:
-
UL VDE TUV RoHS REACH
-
Color:
-
Any color available
-
Application:
-
oil radiator ,electrical fan heater
Picture & drawing :

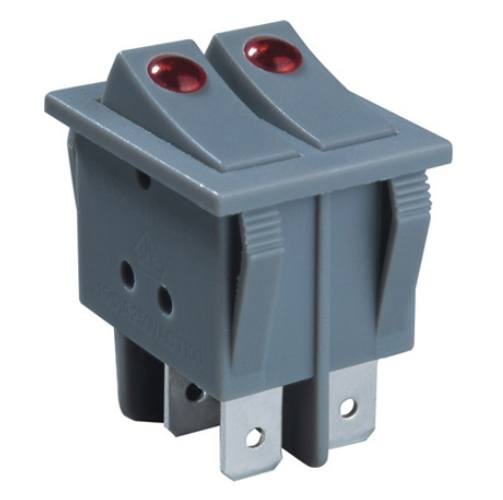

T100 Illuminated Non-Illuminated UL Oil Radiator Electric Heater Rocker Switch
| ITEMS | Rocker Switch details |
| Housing Material | PA66 |
| Button Material | PC |
| Contacts Material | Copper with compound silver |
| Rating | 16(8A) 250VAC 5E4 T105 |
| Room termperature up to | 100℃ |
| Flammability | UL94V2 |
| Heat and fire resistance | GWFI 850℃ on demand |
| Contact gap | ≥ 3 mm |
| Electrical Life | >50000 Cycles |
| Mechanical Life | >10000 Cycles |
| Reference standards | EN61058-1 |
| Approval marks | UL VDE TUV ENEC CE RoHS REACH |
| Wiring diagrams |
ON-OFF 4P switch
|
|
P/N |
Loop Circuit |
Polarity |
Terminal quantity |
|
KCD4-JK-201 |
ON-OFF |
DPST |
4 |
|
KCD4-JK-201N illuminated |
ON-OFF |
DPST |
4 |
|
KCD4-JK-202 |
ON-ON |
DPDT |
6 |
|
KCD4-JK-201 Momentary |
(ON)-OFF |
DPST |
4 |
|
KCD4- JK-202 Momentary |
(ON)-ON |
DPDT |
6 |
