Quick Details
-
Brand Name:
-
REK
-
Model Number:
-
RK2672CM
-
MOQ:
-
1
-
Model:
-
RK2672CM
-
Usage:
-
High Voltage Electrical Safety Compliance Analyzer
-
Test voltage:
-
AC: 0-5 kv, DC: 0-5 kv
-
Test time Settings:
-
0.0s~999s 0.0= continue
-
Max.Output Current:
-
200mA
-
Transformer capacity:
-
500VA
-
PLC Interface:
-
Optional
-
Power Requirments:
-
AC:220V±10% 50Hz/60Hz±3Hz
-
Working environment:
-
Temperature:(0-40)℃ Humidity≤75%RH
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
REK
-
Model Number:
-
RK2672CM
-
MOQ:
-
1
-
Model:
-
RK2672CM
-
Usage:
-
High Voltage Electrical Safety Compliance Analyzer
-
Test voltage:
-
AC: 0-5 kv, DC: 0-5 kv
-
Test time Settings:
-
0.0s~999s 0.0= continue
-
Max.Output Current:
-
200mA
-
Transformer capacity:
-
500VA
-
PLC Interface:
-
Optional
-
Power Requirments:
-
AC:220V±10% 50Hz/60Hz±3Hz
-
Working environment:
-
Temperature:(0-40)℃ Humidity≤75%RH

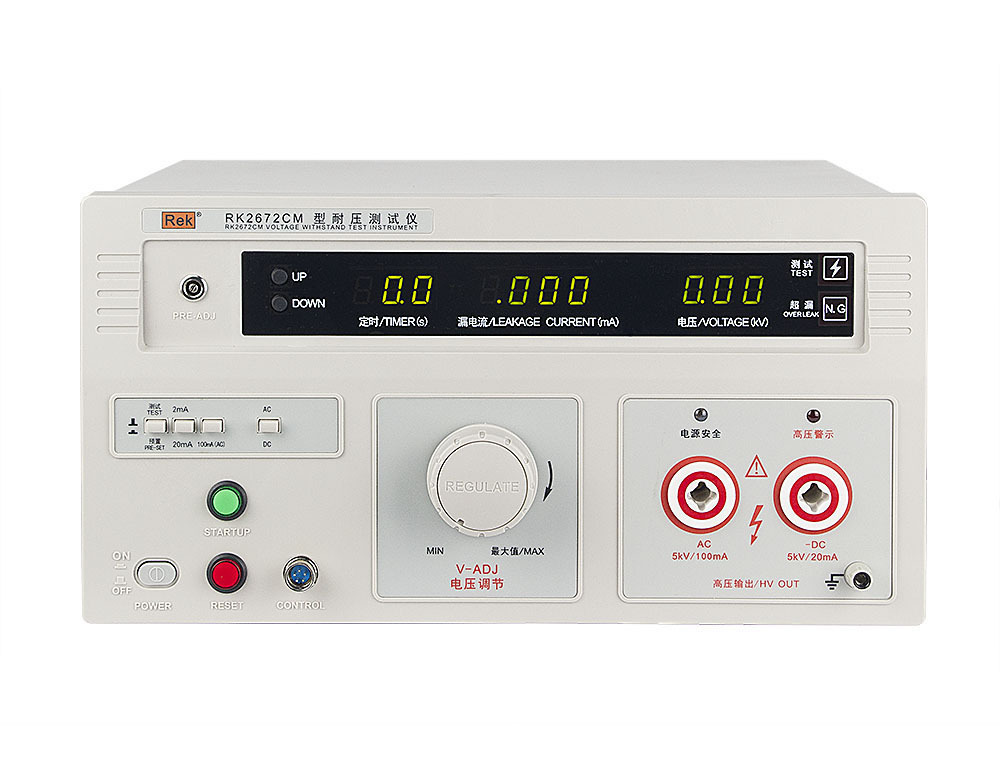

RK2672CM Withstand Voltage AC/DC 5KV Electrical Digital Hi-Pot Pressure Tester
Product introduction
The RK267 2_ M Withstand voltage tester of Meiruike is the measurement instrument for compressive strength, it mainly used for i nsulation leakage safety test of product. It can test t he electrical safety performance index of breakdown voltage , leakage current of which all kind of the measured object intuitive,accurate and fast,and can be used for test ing the components and overall performance as a high voltage source.
This series of test er according to the following standards:Standard for household electrical appliances(IEC6035,GB4706.1-2001, GB4706.1-1998),Standard for lamp (IEC60598-1-1999, GB7000.1-2000),Standard for information (GB8898-2001,GB12113.GB4943-2001, IEC60065,IEC60950) and so on.
A pplication area
Components:diode,triode,high-voltage silicon stack,all kinds of electronic transformer, connector assembly , high voltage electrical equipment.
Household Electric Appliances:TV,refrigerator,air conditioner,washing machine,dryer, electric blanket,charger etc.
Insulation material:heat shrinkable tube,capacitor film,high pressure tube,insulating paper,insulated shoes,rubber insulating gloves,PCB circuit board etc.
Instruments and meters:oscilloscope,signal generator,DC power supply,switching power supply and other types of machine .
Lighting appliances:ballast,road lights,stage lights,portable lamps and other types of lamps .
Electric heating appliances:electric drill, p istol drill , cutting machine,grinding machine,electric welding machine etc.
Wire and cable:high voltage cable,optical cable,electric cable,silicone rubber cable, etc.
Performance characteristics
n AC /DC voltage 5kV universal w ithstand voltage tester .
n The output voltage regulated output by the regulator,which has high reliability and high durability.
n Using high brightness LED digital display ing test time,voltage,current, it can display the breakdown current value and voltage value in real time .
n Alarm current value can be preset arbitrarily .
n Test time using three digital tube display
n Equipped with PLC signal input,output interface, it can constitute easily integrated test system with PLC expediently . (optional)
Technical indicators
|
Parameter Type |
RK2672AM |
RK2672BM |
RK2672CM |
RK2672DM |
|||
|
Output Voltage ( kV ) |
AC |
0~5 |
0~5 |
0~5 |
|||
|
DC |
0~5 |
———— |
0~5 |
||||
|
O utput C urrent ( mA ) |
AC |
0~2/ 2 0 |
0~2 /20 /10 0 |
0~2/20/100 |
0~2/20/ 2 00 |
||
|
DC |
0~2/10 |
———— |
0~2/ 2 0 |
0~2/ 2 0 |
|||
|
Test accuracy |
± ( 5% +3 words) |
||||||
|
T est time |
|||||||
|
T ransformer capacity |
100VA |
500VA |
1000VA |
||||
|
Interface of PLC |
Optional |
||||||
|
Power Requirments |
AC : 220V± 10% 50Hz/60Hz± 3 Hz |
||||||
|
Working environment |
T emperature :(0-40)℃ Humidity ≤ 75%RH |
||||||
|
Exterior dimension |
390× 310 × 200mm |
443× 390 × 200mm |
|||||
|
Weight |
9.5kg |
14kg |
18kg |
24.5kg |
|||
|
Accessory |
High voltage test line,grounding wire,high-voltage stick,power line(standard) Communication line,interface of PLC(optional) |
||||||
