Quick Details
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
1 - 4200 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QUANTA
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
up to model
-
Weight (KG):
-
250 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
optional fuction:
-
duat absorption
-
fineness of finished product:
-
20-120mesh
-
Product name:
-

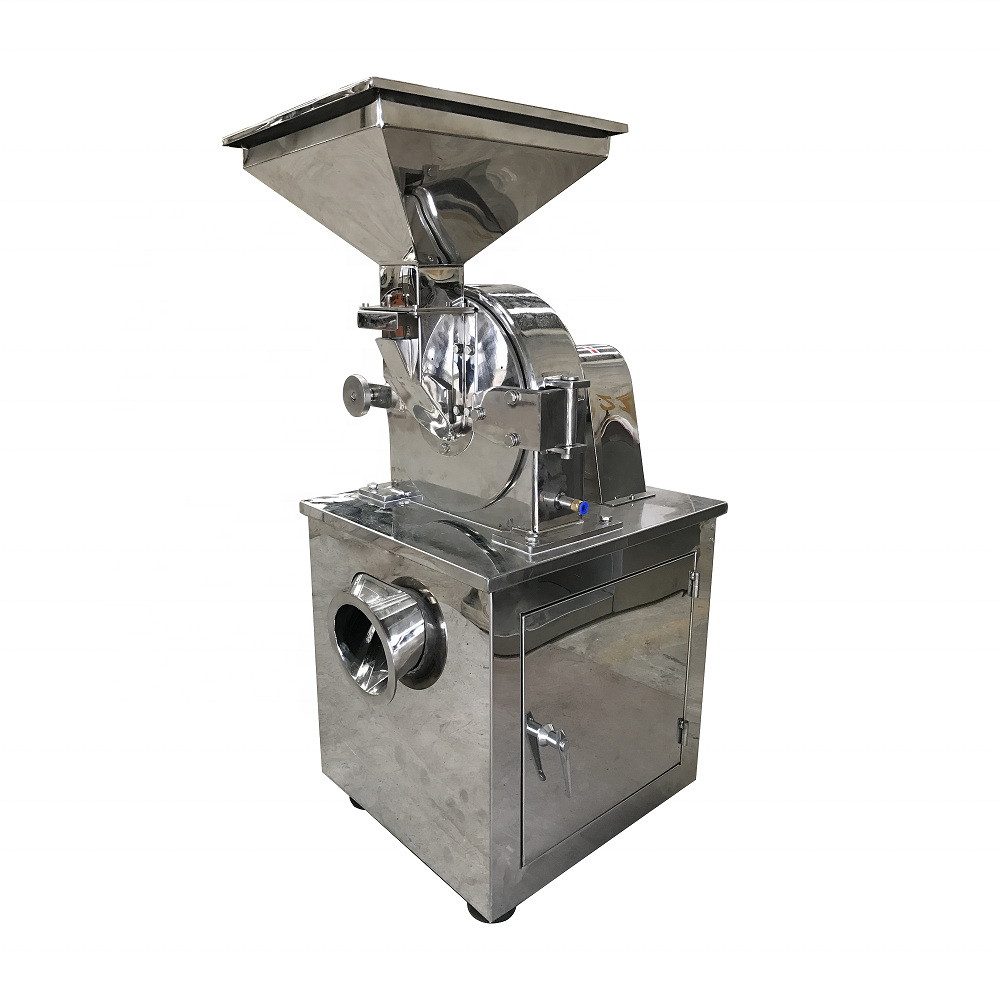

High-efficient Stainless Steel food and Food Pulverizer
-
Weight:
-
150kg
-
Power(W):
-
2.2kw
Quick Details
-
Output (kg/h):
-
1 - 2000 kg/h
-
Feeding Size (mm):
-
1 - 12 mm
-
Output Size (mesh):
-
20 - 120 mesh
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
1 - 4200 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QUANTA
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
up to model
-
Weight (KG):
-
250 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
optional fuction:
-
duat absorption
-
fineness of finished product:
-
20-120mesh
-
Product name:
-
High-efficient Stainless Steel food and Food Pulverizer
-
Weight:
-
150kg
-
Power(W):
-
2.2kw
| Model | Dimenison (MM) | Capacity | Feeding Size | Fineness of finished powder | Weight | Speed | Total Power | ||
| L | W | H | Kg/H | mm | mesh | Kg | Rpm/min | KW | |
| WF-20 | 650 | 820 | 1500 | 20-150 | <6 | 12-120 | 230 | 4650 | 4 |
| WF-30 | 700 | 900 | 1650 | 30-350 | <10 | 12-120 | 330 | 3800 | 7.5 |
| WF-40 | 750 | 1000 | 1750 | 50-450 | <12 | 12-120 | 430 | 3400 | 11 |
| WF-50 | 850 | 1150 | 1900 | 80-550 | <15 | 12-120 | 700 | 2900 | 15 |
| WF-60 | 950 | 1250 | 2150 | 100-800 | <15 | 12-120 | 900 | 2300 | 22 |
| WF-80 | 1100 | 1400 | 2250 | 120-1000 | <20 | 12-120 | 1200 | 1800 | 30 |
| WF-100 | 1300 | 1500 | 2400 | 150-1500 | <20 | 12-120 | 1800 | 1400 | 45 |
| Mesh | Diameter of holes |
| 20 | 1.5mm |
| 30 | 1.2mm |
| 40 | 1mm |
| 60 | 0.8mm |
| 80 | 0.6mm |
| 100 | 0.5mm |
| 120 | 0.4mm |
1. Simple Dust Collection Device consists of dedusting fan & Filter inside.
