Quick Details
-
Model Number:
-
5IK90GU
-
Frequency:
-
50HZ/60HZ
-
Product Name:
-
AC induction motor
-
Power:
-
90w (6w-150w)
-
Torque:
-
450 mN.m
-
Rated Speed:
-
7.5-1550 r/min
-
Motor Frame Size:
-
90mm
-
Pinion Shaft:
-
GN Type
-
Motor Type:
-
Induction motor
-
Certification:
-
ce
Quick Details
-
AC Voltage:
-
110v-380v
-
Place of Origin:
-
China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
5IK90GU
-
Frequency:
-
50HZ/60HZ
-
Product Name:
-
AC induction motor
-
Power:
-
90w (6w-150w)
-
Torque:
-
450 mN.m
-
Rated Speed:
-
7.5-1550 r/min
-
Motor Frame Size:
-
90mm
-
Pinion Shaft:
-
GN Type
-
Motor Type:
-
Induction motor
-
Certification:
-
ce

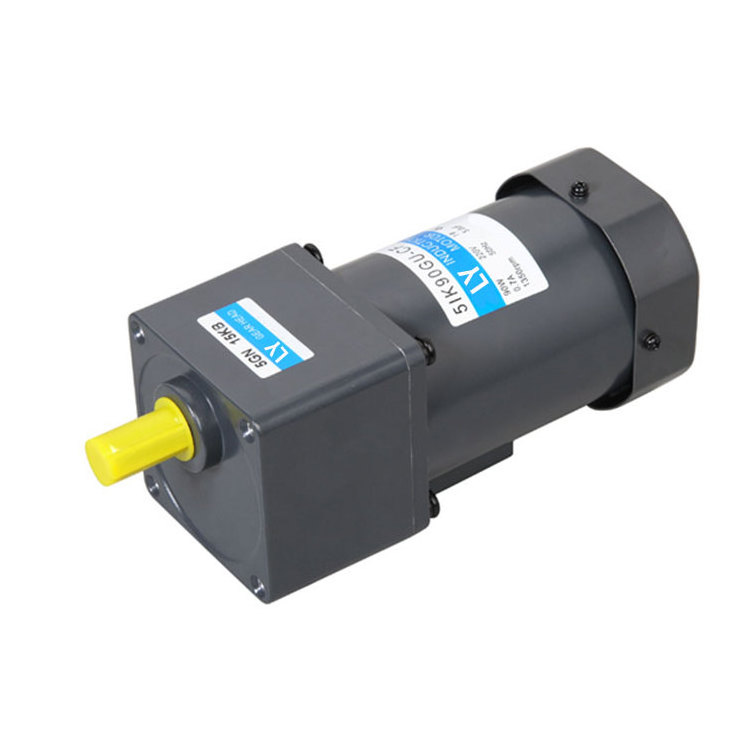

5IK90GU 90W Single Phase 220v High Torque Low RPM AC Gear Induction Motor with Speed Controller
Product Description
Specification
we can custom parameters and shaft size, please contact us
1. When the motor is approved under various safety standards, the model name on the nameplate is the approved model name. Note:
2. “-A” it means the voltage 110V, the assembly capacitor value it is according the label.
1. When the motor is approved under various safety standards, the model name on the nameplate is the approved model name. Note:
2. “-A” it means the voltage 110V, the assembly capacitor value it is according the label.
|
Model Type
Above:gearbox below in（）：round shaft |
|
Output power
W |
Voltage
V |
Frequency
Hz |
Current
A |
Starting torque
mN.m |
Rated tourque
mN.m |
Rated speed
r/min |
Capacitor
μF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Lead Wire Type
|
Terminal Box Type
|
|
|
|
|
|
|
|
|
|
|
5IK90GU-AF
(5IK90A-AF) |
5RK90GU-AFT
(5RK90A-AFT) |
90
|
1ph100
|
50
|
1.55
|
450
|
700
|
1250
|
25
|
|
|
|
|
|
|
60
|
1.85
|
|
570
|
1550
|
|
|
|
5IK90GU-EF
(5IK90A-EF) |
5RK90GU-EFT
(5RK90A-EFT) |
90
|
1ph110
|
60
|
1.4
|
500
|
570
|
1550
|
20
|
|
|
|
|
|
1ph120
|
|
1.45
|
500
|
|
|
|
|
|
5IK90GU-CF
(5IK90A-CF) |
5RK90GU-CFT
(5RK90A-CFT) |
90
|
1ph220
|
50
|
0.72
|
450
|
700
|
1250
|
5
|
|
|
|
|
|
1ph230
|
|
0.7
|
450
|
|
|
|
|
|
5IK90GU-HF
(5IK90A-HF) |
5RK90GU-HFT
(5RK90A-HFT) |
90
|
1ph220
|
60
|
0.71
|
450
|
570
|
1550
|
|
|
|
|
|
|
1ph230
|
|
0.75
|
450
|
|
|
|
|
|
5IK90GU-SF
(5IK90A-SF) |
5IK90GU-SFT
(5IK90A-SFT) |
90
|
3ph220
|
50
|
0.6
|
1350
|
700
|
1250
|
|
|
|
|
|
|
|
60
|
0.55
|
1100
|
570
|
1550
|
|
|
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
|
Gearhead Type
|
Gearhead Model
|
Gear Ratio
|
|
||
|
Long Life
Low Noise |
5GU KB
|
3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
5GU10XK (Mid-gearbox)
|
|
|
||
Motor Speeder and Holder are Selectable
