Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DECAR
-
Model Number:
-
TC980ITF
-
Warranty:
-
15 Months
-
Color:
-
Blue, Red,etc
-
Rim Diameter:
-
10" to 30"
-
Max. Wheel Diameter:
-
1300mm
-
Wheel Width:
-
3"-15"
-
Certification:
-
CE, ISO
Quick Details
-
Motor Power:
-
0.75/1.1KW
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110V/220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DECAR
-
Model Number:
-
TC980ITF
-
Warranty:
-
15 Months
-
Color:
-
Blue, Red,etc
-
Rim Diameter:
-
10" to 30"
-
Max. Wheel Diameter:
-
1300mm
-
Wheel Width:
-
3"-15"
-
Certification:
-
CE, ISO
|
Model
|
TC980ITF
|
|
Rim Clamping from Outside
|
14 to 26
|
|
Rim Clamping from Inside
|
17 to 30
|
|
Max. Wheel Diameter
|
1200mm
|
|
Wheel Width
|
3-15
|
|
Operating Pressure
|
8-10bar
|
|
Motor Power
|
0.75/1.1kw
|
|
Noise Level
|
<75dB
|
|
Rpm
|
6.5/13pm
|
|
Voltage
|
220v/380v
|
|
Noise
|
<70dB
|
Specifications

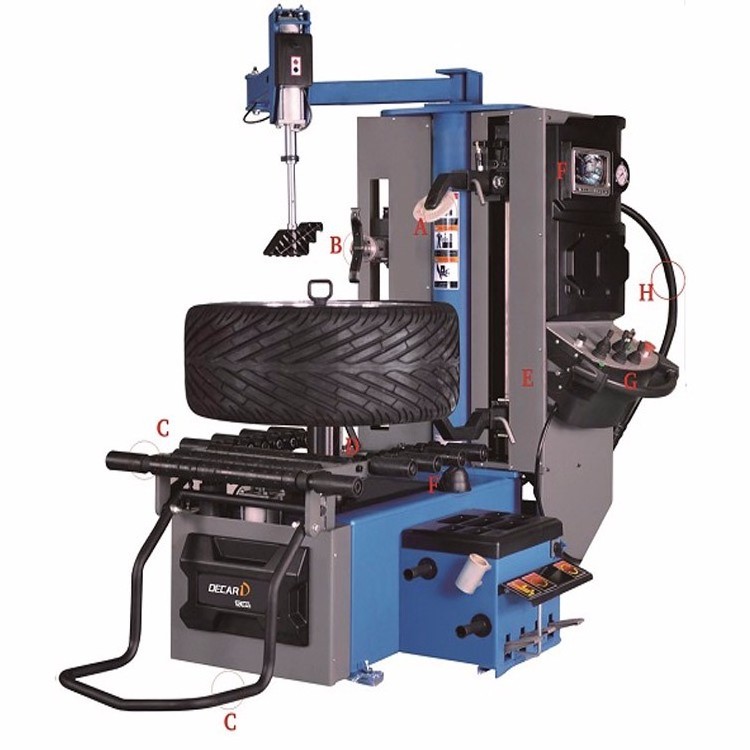

1.T730 up and down by Pneumatic control; easy operation and save both time and labor.
2.Positioning rim centrally method can avoid to damage the rim; conveniently and fast.
3.The vertical pole is made of 200x150mm square tube with better intensity and no deformation during demounting and mounting the tyres.
4.The right assist arm equips the cylinder with 125mm diameter and can divides the tyre and rim; demount and mount the flat, hard and SRC tyres easily.
5.The control system of the right assist arm has the design of bead disc movement synchronization lock function to avoid to damage the machine due to the desperation.
6.Optional infinitely variable speed motor.
7.Suitable for various tyres in the marketplace, bead breaking disc rotates to separate the rim from the tyre, easy operation, with unique function, safe and efficient.
