Quick Details
-
Model Number:
-
AL-100
-
Features:
-
PD, PH and UV test
-
Features 1:
-
Automatic identification of lens type
-
Features 2:
-
Green LD light source
-
Features 3:
-
Hartmann method Optical system
-
Features 4:
-
T-inch full HD capacitor
-
Features 5:
-
Available,but optional
-
Features 6:
-
Unique multi-core parallel processing system
-
Features 7:
-
Powerful data processing core
-
Features 8:
-
pupli distance measurement
-
Features 9:
-
built in thermal printer
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Hongdee
-
Model Number:
-
AL-100
-
Features:
-
PD, PH and UV test
-
Features 1:
-
Automatic identification of lens type
-
Features 2:
-
Green LD light source
-
Features 3:
-
Hartmann method Optical system
-
Features 4:
-
T-inch full HD capacitor
-
Features 5:
-
Available,but optional
-
Features 6:
-
Unique multi-core parallel processing system
-
Features 7:
-
Powerful data processing core
-
Features 8:
-
pupli distance measurement
-
Features 9:
-
built in thermal printer
Product Description

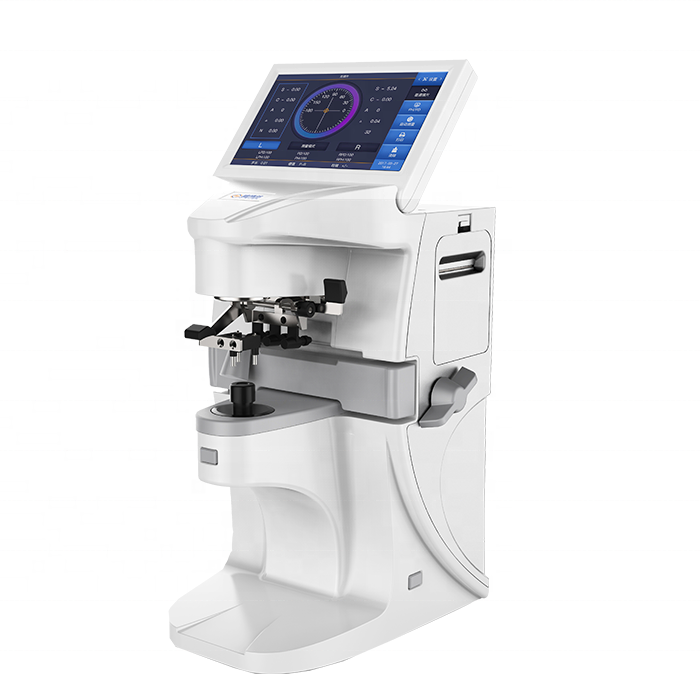

Cheap lensometer digital auto lensmeter AL-100
Specification
1、Spherical power (spectacle lens): －25 m-1～＋25 m-1
2、Cylindrical power: －9.99 m-1～＋9.99 m-1
3、Progressive ADD power: －9.99 m-1～＋9.99 m-1
4、Spherical power (contact lens): －20 m-1～＋20 m-1
5、Vertex power step measurement: 0.01 m-1，0.06 m-1，0.12 m-1，0.25 m-1
6、Cylindrical lens astigmatism axis angle measurement scope: 0°～180° , step 1°
7、Prism base angle measurement scope: 0°～360° step 1°
8、Prism degree measurement scope: horizontal 0～20△, step 0.01△
Vertical 0～20△, step 0.01△
9、Measurable lens diameter: φ10mm～φ100mm
10、Measurable lens center thickness: ≤20mm
11、Lens PD measurement scope: 40mm～82mm step 0.25mm
12、Lens PH difference△PH measurement scope: 0mm～50mm , step 0.25mm
13、Measurable lens frame leg length: 0mm～160mm
14、Measurable anti-uv transmittance rate : 0~100% step 1%
15、Main engine power supply: direct current12V，45W
16、Power adapter : input AC 100V-240V，50HZ-60HZ ; output AC 100V-240V，50HZ-60HZ
17、Body size: 315*192*212mm
18、Weight :4.3 Kg
19、Screen: 800x480 color screen, full screen touchable
20、Printer:thermal printing, printing paper width 57mm
21、External connector；power connector ,usb connector
2、Cylindrical power: －9.99 m-1～＋9.99 m-1
3、Progressive ADD power: －9.99 m-1～＋9.99 m-1
4、Spherical power (contact lens): －20 m-1～＋20 m-1
5、Vertex power step measurement: 0.01 m-1，0.06 m-1，0.12 m-1，0.25 m-1
6、Cylindrical lens astigmatism axis angle measurement scope: 0°～180° , step 1°
7、Prism base angle measurement scope: 0°～360° step 1°
8、Prism degree measurement scope: horizontal 0～20△, step 0.01△
Vertical 0～20△, step 0.01△
9、Measurable lens diameter: φ10mm～φ100mm
10、Measurable lens center thickness: ≤20mm
11、Lens PD measurement scope: 40mm～82mm step 0.25mm
12、Lens PH difference△PH measurement scope: 0mm～50mm , step 0.25mm
13、Measurable lens frame leg length: 0mm～160mm
14、Measurable anti-uv transmittance rate : 0~100% step 1%
15、Main engine power supply: direct current12V，45W
16、Power adapter : input AC 100V-240V，50HZ-60HZ ; output AC 100V-240V，50HZ-60HZ
17、Body size: 315*192*212mm
18、Weight :4.3 Kg
19、Screen: 800x480 color screen, full screen touchable
20、Printer:thermal printing, printing paper width 57mm
21、External connector；power connector ,usb connector
