Quick Details
-
Jacket:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanhe
-
Model Number:
-
abc cable
-
Product name:
-
aerial bundled cable(abc)
-
Certificate:
-
ISO9001
-
Standard:
-
ANSI/ICEA S-76-474, NFC 33209
-
Rated voltage:
-
0.6/1KV
-
Core:
-
1-5 Core
-
Conductor type:
-
Stranded Conductor
-
Colour:
-
Requirement
-
Packing:
-
Wooden Drum
-
Sample:
-
Provided
-
Warranty:
-
1 Year
Quick Details
-
Insulation Material:
-
PE/XLPE/PVC
-
Application:
-
Overhead
-
Conductor Material:
-
Aluminum
-
Jacket:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanhe
-
Model Number:
-
abc cable
-
Product name:
-
aerial bundled cable(abc)
-
Certificate:
-
ISO9001
-
Standard:
-
ANSI/ICEA S-76-474, NFC 33209
-
Rated voltage:
-
0.6/1KV
-
Core:
-
1-5 Core
-
Conductor type:
-
Stranded Conductor
-
Colour:
-
Requirement
-
Packing:
-
Wooden Drum
-
Sample:
-
Provided
-
Warranty:
-
1 Year
lv abc aerial bundled power cable with xlpe insulated overhead con ductor
1.Application
Service drop cable (ABC CABLE) is mainly used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting, it improves the safety and reliance of electrified wire netting.
2.Construction
Phase conductor: round stranded aluminum or AAAC, ACSR
Neutral conductor: round stranded aluminum or AAAC, ACSR
Lighting conductor: round stranded aluminum or AAAC, ACSR
Insulation :LDPE.HDPE. XLPE.PVC
3.Standard
NFC33209,ANSI/ICEA S-76-474,etc.
''SANHE'' cable can also design and produce for special application requirment.
4.Specification Example
| Code Name | AWG or KCMIL | Bare Neutral Messenger | Phase conductor | Weight | |||
| AAC | AAC |
Insul. thickness (mm) |
(kg/km) | ||||
| No. | Dia.(mm) | No. | Dia.(mm) | ||||
| Collie | 1x6awg+6awg | 7 | 1.56 | 7 | 1.56 | 1.14 | 94 |
| Spaniel | 1x4awg+4awg | 7 | 1.96 | 7 | 1.96 | 1.14 | 141 |
| Doberman | 1x2awg+2awg | 7 | 2.47 | 7 | 2.47 | 1.14 | 216 |
| malemute | 1x1/0awg+1/0awg | 7 | 3.12 | 19 | 1.89 | 1.52 | 347 |
| patella | 2x6awg+6awg | 7 | 1.56 | 7 | 1.56 | 1.14 | 150 |
| Oyster | 2x4awg+4awg | 7 | 1.96 | 7 | 1.96 | 1.14 | 224 |
| Clam | 2x2awg+2awg | 7 | 2.47 | 7 | 2.47 | 1.14 | 338 |
| Murex | 2x1/0awg+1/0awg | 7 | 3.12 | 7 | 3.12 | 1.52 | 544 |
| Nassa | 2x2/0awg+2/0awg | 7 | 3.5 | 7 | 3.5 | 1.52 | 671 |
| melita | 2x3/0awg+3/0awg | 19 | 2.39 | 19 | 2.39 | 1.52 | 830 |
| portunus | 2x4/0awg+4/0awg | 19 | 3.25 | 19 | 3.25 | 1.52 |
1476 |

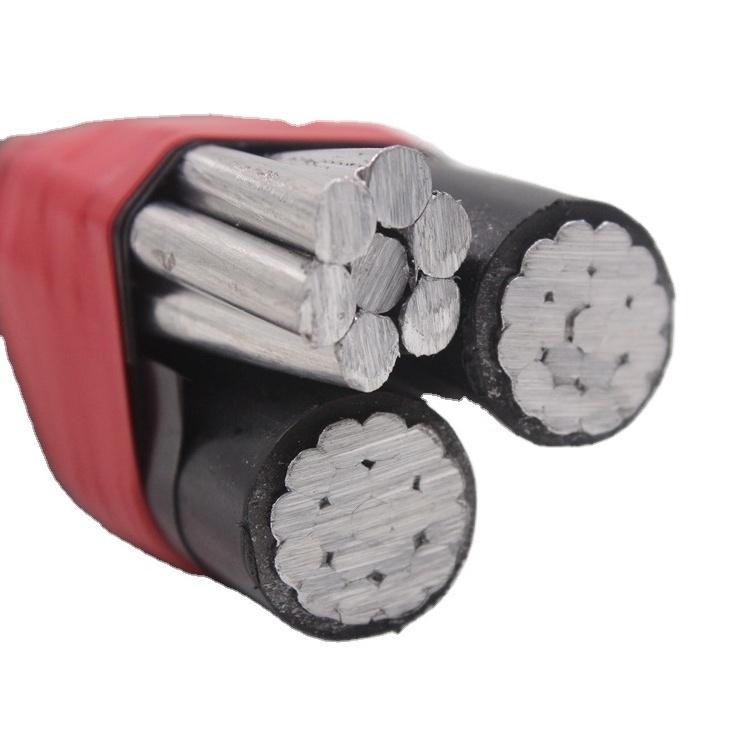

5.Picture
