Quick Details
-
Dimension(L*W*H):
-
1300x820x1900MM
-
Weight (KG):
-
750
-
Power (kW):
-
3
-
Product name:
-
Flywheel grinding machine
-
Model:
-
FG500
-
Table Diameter:
-
450mm
-
The Max. Diameter of Repairing Flywheel:
-
500mm
-
The Max. Distance from spindle to table:
-
200mm
-
Motor Power:
-
3kW
-
The Rotational Speed of Table:
-
17/34 r/min
-
Machine Dimensions:
-
1200*800*1750mm
-
Package Dimension:
-
1300*820*1900mm
-
Weight:
-
690/750kgs
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JN Quality CNC
-
Voltage:
-
380V,3PH,50HZ
-
Dimension(L*W*H):
-
1300x820x1900MM
-
Weight (KG):
-
750
-
Power (kW):
-
3
-
Product name:
-
Flywheel grinding machine
-
Model:
-
FG500
-
Table Diameter:
-
450mm
-
The Max. Diameter of Repairing Flywheel:
-
500mm
-
The Max. Distance from spindle to table:
-
200mm
-
Motor Power:
-
3kW
-
The Rotational Speed of Table:
-
17/34 r/min
-
Machine Dimensions:
-
1200*800*1750mm
-
Package Dimension:
-
1300*820*1900mm
-
Weight:
-
690/750kgs

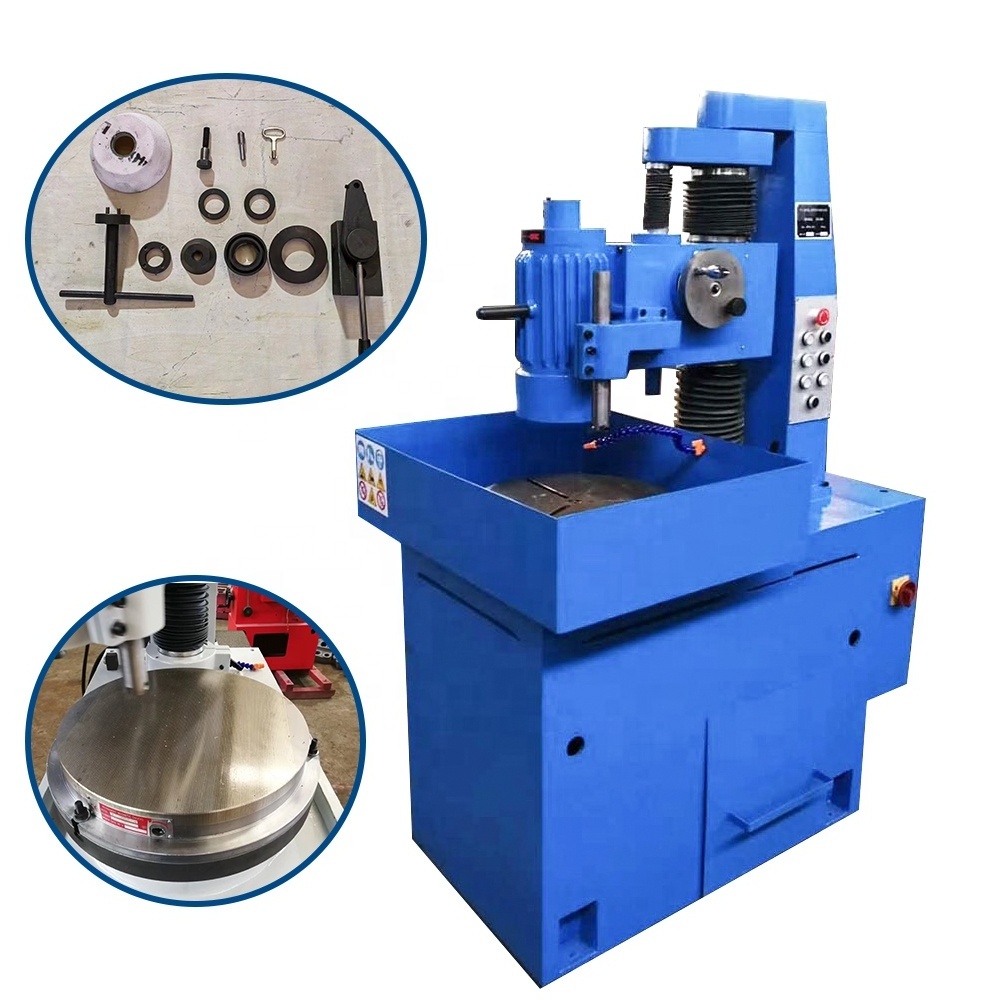

Flywheel grinder vehicle repair flywheel grinding machine FG500
Machine Performances
The machine has good rigidity, high working accuracy, fast cutting speed, high processing efficiency, simple operation and convenient maintenance. It is an ideal special tool for flywheel grinding.
1. The grinding machine is a single-purpose machine which used for vehicle repair industry to grinding automobile flywheel. It have
simple structure, reliable performance and other features. It can grinding flywheel within 500mm.
1. The grinding machine is a single-purpose machine which used for vehicle repair industry to grinding automobile flywheel. It have
simple structure, reliable performance and other features. It can grinding flywheel within 500mm.
2. The machine is vertical surface grinding machine with round table, grinding bits and feeding box can turn around with circus column in order to implement
grinding different diameter flywheel.
3. The worktable have slow and fast two rpm, the customs can according to the size of flywheel to choose.
grinding different diameter flywheel.
3. The worktable have slow and fast two rpm, the customs can according to the size of flywheel to choose.
4. The machine’s rigidity good, work accuracy high, cutting speed fast, Processing efficiency, simple operation, easy maintenance, is an ideal grinding wheels of special equipment.
