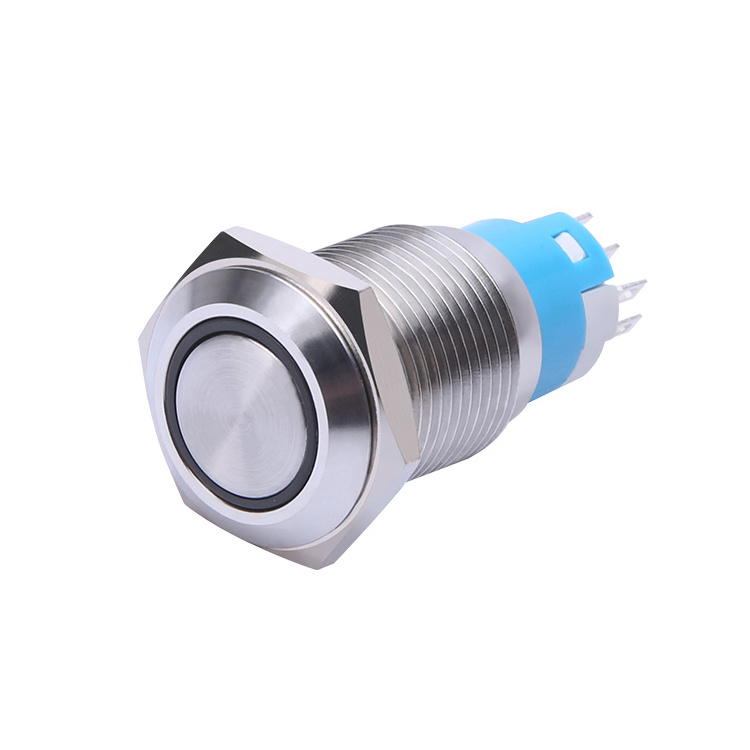

Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Fzolink
-
Model Number:
-
OL.16QB
-
IP level:
-
IP65/67
-
Head shape:
-
high round/Flat/Ball/plane
-
Switch function:
-
1 NO/Momentary/self-locking
-
Terminal:
-
J Pin Terminal
-
Lame type:
-
Dot/Ring/Ring&Symbol
-
Shell material:
-
brass nickel plated/stainless steel
-
Protection level:
-
IP65, IK08
-
Mounting hole diameter:
-
16mm
-
Terminal type:
-
Solder/screw
Quick Details
-
Protection Level:
-
IP65/IP67,K10
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Fzolink
-
Model Number:
-
OL.16QB
-
IP level:
-
IP65/67
-
Head shape:
-
high round/Flat/Ball/plane
-
Switch function:
-
1 NO/Momentary/self-locking
-
Terminal:
-
J Pin Terminal
-
Lame type:
-
Dot/Ring/Ring&Symbol
-
Shell material:
-
brass nickel plated/stainless steel
-
Protection level:
-
IP65, IK08
-
Mounting hole diameter:
-
16mm
-
Terminal type:
-
Solder/screw
More product options
Product Parameters
|
NO.
|
MODEL
|
ITEM NO.
|
HEAD SHAPE
|
SWITCH
FUNCTION |
TERMINAL
|
LAMP TYPE
|
SHELL MATERIAL
|
|
1
|
C116
|
16QB-F11Z
|
Flat
|
1NO1NC /
2NO2NC
Momentary / Self-locking |
J Pin Terminal
|
|
Brass nickel plated
Stainless steel |
|
2
|
C15
|
16QB-H11Z
|
High Round
|
|
J Pin Terminal
|
|
|
|
3
|
C11
|
16QB-H11Z/E
|
High Round
|
|
J Pin Terminal
|
Ring
|
|
|
4
|
C12
|
16QB-F11Z/E
|
Flat
|
|
J Pin Terminal
|
Ring
|
|
|
5
|
C14
|
16QB-F11Z/D
|
Flat
|
|
J Pin Terminal
|
Dot
|
|
|
6
|
C13
|
16QB-H11Z/D
|
High Round
|
|
J Pin Terminal
|
Dot
|
|
|
7
|
C28
|
16QB-P11Z/E
|
Plane
|
|
J Pin Terminal
|
Ring
|
|
|
8
|
C36
|
16QB-H11Z/V
|
High Round
|
|
J Pin Terminal
|
Symbol
|
|
|
9
|
C19
|
16QB-F11Z/V
|
Flat
|
|
J Pin Terminal
|
Symbol
|
|
|
10
|
C35
|
16QB-H11Z/VE
|
High Round
|
|
J Pin Terminal
|
Ring&Symbol
|
|
|
11
|
C18
|
16QB-F11Z/EV
|
Flat
|
|
J Pin Terminal
|
Ring&Symbol
|
|
|
Technical Parameters
|
|
|
|
|
||||
|
Terminal Type
|
J Pinl/Screw Terminal
|
Protection Grade
|
|
IP65/IP67
|
||||
|
Structure
|
1NO1NC/2NO2NC
|
Material
|
Contact
|
Silver alloy
|
||||
|
Specifications
|
3A/250VAC
|
|
Button
|
Stainless steel
|
||||
|
Contact Resistance
|
≤50mΩ
|
|
|
Zn-Al alloy(Made to order any color)
|
||||
|
Insulation Resistance
|
≥1000MΩ
|
|
Body
|
Brass nickel plated/Stainless steel
|
||||
|
Dielectric Strength
|
2000VAC
|
|
|
Zn-Al alloy(Made to order any color)
|
||||
|
Environent Temperature
|
-20℃~+55℃
|
|
Base
|
PBT
|
||||
|
Mechanical Life
|
>1000000 times
|
Lamp
Parameters |
Rated
Voltage |
2V.3V.5V.6V.12V.24V.36V.48V.110V.220V
|
||||
|
Electical Lifer
|
>50000 times
|
|
|
|
||||
|
Panel Thickness
|
1~10mm
|
|
|
|
||||
|
Nut Torque
|
5-14Nm
|
|
Color
|
Red Orange yellow
|
||||
|
Operating Pressure
|
2-4N
|
|
|
green blue White
|
||||
|
Operating Distance
|
About 3.0mm
|
|
Life
|
50000 Hours
|
||||
