7.Support various POS machines and Octopus
8.others...
Provide SDK for Secondary development, Drivers, development code, Development materials are complete
- Product Details
- {{item.text}}
Quick Details
-
Control:
-
Industrial control host(11th generation Intel full range notebook CPU)
-
Touch screen:
-
21.5/24/27/32 inch capacitive touch integrated screen
-
QR code:
-
Inductive scanning, command triggering
-
receipt printer:
-
80mm thermal movement with paper cutter
-
Payment module:
-
Support various POS machines and Octopus
-
Horn:
-
The loudspeaker has a loud and clear sound and stereo sound
-
Complete machine cabine:
-
Material: sheet metal; Surface treatment: spraying process
-
Industrial power supply:
-
Input: 200-240V, Output: 12V/6A, Power: 150W
-
overall unit:
-
With automatic leakage protection function
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZHZN
-
Operating system:
-
Windows7/10 64-bit Professional Edition
-
Control:
-
Industrial control host(11th generation Intel full range notebook CPU)
-
Touch screen:
-
21.5/24/27/32 inch capacitive touch integrated screen
-
QR code:
-
Inductive scanning, command triggering
-
receipt printer:
-
80mm thermal movement with paper cutter
-
Payment module:
-
Support various POS machines and Octopus
-
Horn:
-
The loudspeaker has a loud and clear sound and stereo sound
-
Complete machine cabine:
-
Material: sheet metal; Surface treatment: spraying process
-
Industrial power supply:
-
Input: 200-240V, Output: 12V/6A, Power: 150W
-
overall unit:
-
With automatic leakage protection function

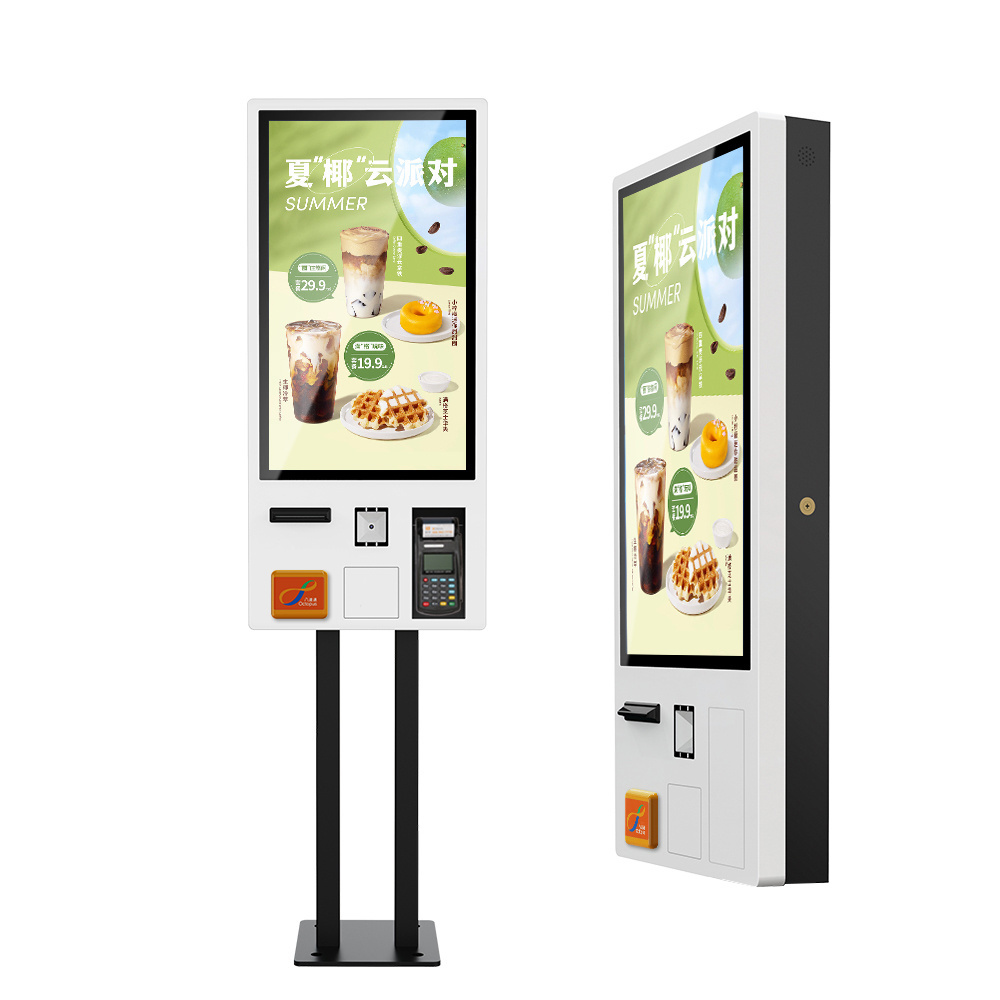

21.5/24/27/32 inch touch screen self service ordering kiosk payment terminal kiosk
21.5--23.8--24--27--32 inch There are five touch screen sizes to choose from
Android/Win10/linux OS options/X86
Peripherals options:
1.Various countries' ID card reader!!!!!
2.QR code scanners
3.thermal printer
4.RFID/NFC reader
5.Camera
6.Fingerprint scanner
|
Device Color
|
Refer to the renderings for multi-color selection and combination
|
|
Operating environment
|
1. Indoor environment:
(1) Temperature: 0 ℃ to 40 ℃.
(2) Temperature change rate: ≤ 10 ℃/hour.
(3) Relative humidity: 20% to 95%(40 ℃, non condensed).
(4) Relative humidity change rate: ≤ 10%/hour.
2. Power and grounding requirements:
(1) Single-phase AC
power supply: 220~240V, 50Hz.
(2) Use a separately grounded power socket (trident) and configure a dedicated power supply (not shared with noisy, heavily loaded electrical equipment Enjoy the same power socket, such as air lift, vacuum cleaner, motor,etc.).
|
|
Electricity requirements
|
Input voltage: single-phase AC power supply 200-240V~, 50Hz Maximum current: 5A
|
|
Application Introduction
|
Can handle ordering, payment, printing and other related businesses, widely used in restaurants, self-service areas, etc
|
