Quick Details
-
Model Number:
-
SGL-3200
-
Max. Current:
-
3200A
-
Mechanical Life:
-
10000 Cycles
-
Type:
-
1000 Amp Electrical Load Disconnect Switch
-
Auxiliary:
-
NC,NO, NC+NO,2NO+2NC
-
Rated current:
-
63A to 3150A
-
HS Code:
-
8535309000
-
Rated voltage:
-
660V
-
Mounting:
-
Din rail mounting, Box mounting
-
Operating:
-
Manually operated, Indoor or outdoor
-
Gurantee period:
-
2 years
-
Pole:
-
3P, 4P
-
Certificates:
-
TUV,CE,CB,IEC
Quick Details
-
Max. Voltage:
-
660V
-
Place of Origin:
-
China
-
Brand Name:
-
Suntree
-
Model Number:
-
SGL-3200
-
Max. Current:
-
3200A
-
Mechanical Life:
-
10000 Cycles
-
Type:
-
1000 Amp Electrical Load Disconnect Switch
-
Auxiliary:
-
NC,NO, NC+NO,2NO+2NC
-
Rated current:
-
63A to 3150A
-
HS Code:
-
8535309000
-
Rated voltage:
-
660V
-
Mounting:
-
Din rail mounting, Box mounting
-
Operating:
-
Manually operated, Indoor or outdoor
-
Gurantee period:
-
2 years
-
Pole:
-
3P, 4P
-
Certificates:
-
TUV,CE,CB,IEC

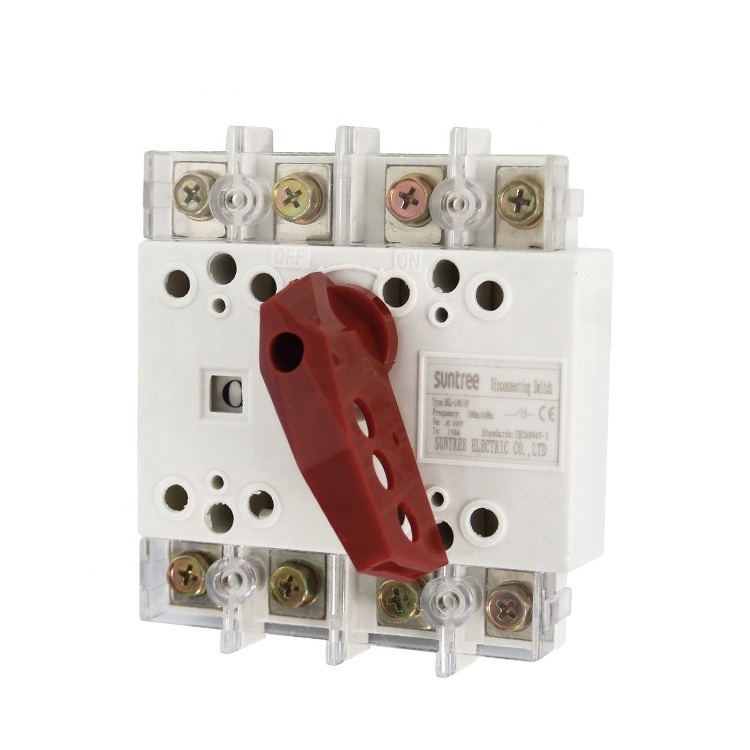

SGL series load isolation switch is manufactured by our company with the up-to-date technique imported from europe. This Product meets the international technical level in the late 1990s. Being the most ideal renewal of domestic congeneric products.
This kind of load isolation switch is widely used in the distribution system and automatic system of architecture, electrical power, petrochemical, and other industries.
This kind of load isolation switch possesses flexible structure of modularized design, possesses flexible and versatile composition ality. it adopts the shell made by unsaturated polyester resin reinforced by glassfibre. it has very high diellectric performance. protective capability. and reliable operation.
The operating mechanism is an elatic-accumulating accelerating mechanism for instant release, which makes instant in and off the double break point contact, it has on relationship with the speed of operating handle and increases geeatly various electric properties and mechnical properties.
Many forms of structures and operations in which the on and off state of contact is abserved through windows.There are operation inside or outside the board, frontal or lateral operations, there are also connections behind the board
This kind of switch as a good-looking outline and various functions, being very novel, simple and small-dimensioned, and the best choice among the congeneric products.
|
Conventional thermal current lth A
|
|
|
63A
|
|
100A
|
|
160A
|
|
|||||
|
Rated current A
|
|
|
40
|
63
|
80
|
80
|
125
|
160
|
|||||
|
Rated impulse withstand voltage Ui(A)
|
|
|
750
|
750
|
750
|
750
|
750
|
750
|
|||||
|
Dielectric strength(V)
|
|
|
5000
|
5000
|
5000
|
5000
|
5000
|
5000
|
|||||
|
Working Current le A |
380V
|
AC-21
|
40
|
63
|
80
|
80
|
125
|
160
|
|||||
|
|
|
AC-22
|
40
|
63
|
80
|
80
|
125
|
160
|
|||||
|
|
|
AC-23
|
40
|
50
|
80
|
80
|
125
|
160
|
|||||
|
|
660V
|
AC-21
|
40
|
50
|
80
|
80
|
125
|
160
|
|||||
|
|
|
AC-22
|
32
|
32
|
50
|
50
|
125
|
160
|
|||||
|
|
|
AC-23
|
25
|
25
|
40
|
40
|
80
|
80
|
|||||
|
|
|
380V
|
18.5
|
25
|
40
|
40
|
63
|
80
|
|||||
|
|
|
660V
|
22
|
22
|
33
|
33
|
75
|
75
|
|||||
|
Rated breaking capbility(A rins)AC23 380V
|
|
|
320
|
504
|
840
|
800
|
1000
|
1000
|
|||||
|
Rated making capability(A Rms)AC23 380V
|
|
|
400
|
630
|
800
|
1000
|
1250
|
1250
|
|||||
|
Rated short-current making capability lcm(kA peak value)
|
|
|
7.5
|
7.5
|
10
|
10
|
12
|
12
|
|||||
Characteristics
1. The elasticaccumulating accelerating mechanism for instant release realize the rapid making and breaking (13.8m/s),having no relationship with the speed of the operating handle,and increasing greatly the capability ofextinguishing electric arc.
2. The sheu made of unsaturated polyester resin reinforced by glass fiber possesses excellent performance of flame resistant, dialectic performance, safe operation, resist carbonic performance and resist impact performance.
3. Parallel double gap contact possesses self cleaning functions.
4. All the contact materials are copper alloy plated with silver, and possess two separation contact surfaces.
5. Large clearance of insulation.
6.Be on "0", the products can lock the handle with three locks at the same time and thus can avoid error operation.
Operation environment
1.Height about level does not exceed 2000m
2.Ambient temperature is not higher than 40`c and not lower than -5`c, Relative humidity is not larger than 95%
3. No explosive dangerous medium environment
4. No rain and snow attack environment
