Quick Details
-
Brand Name:
-
TTN
-
Model Number:
-
TTN-M100A
-
Work Time (h):
-
24
-
Max PV Power:
-
5400W
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE
-
Warranty:
-
24 months
-
System Voltage:
-
12V/24V/36V/48V Auto work
-
Rated Current:
-
100A
-
MPPT efficiency:
-
98.5%
-
Protection:
-
Short circuit, over charging, reverse polarity
-
Battery Charging:
-
Sealed Gel AGM Flooded Lithium Battery
-
Charge Algorithm:
-
4 stage: bulk, absorption, float, equalizae
-
Color:
-
Blue
-
Self Consumption:
-
2W
-
Function:
-
Solar Charging
-
Communication:
-
RS485 Ethernet RS232
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TTN
-
Model Number:
-
TTN-M100A
-
Work Time (h):
-
24
-
Max PV Power:
-
5400W
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE
-
Warranty:
-
24 months
-
System Voltage:
-
12V/24V/36V/48V Auto work
-
Rated Current:
-
100A
-
MPPT efficiency:
-
98.5%
-
Protection:
-
Short circuit, over charging, reverse polarity
-
Battery Charging:
-
Sealed Gel AGM Flooded Lithium Battery
-
Charge Algorithm:
-
4 stage: bulk, absorption, float, equalizae
-
Color:
-
Blue
-
Self Consumption:
-
2W
-
Function:
-
Solar Charging
-
Communication:
-
RS485 Ethernet RS232
Product Description
Specification
|
Item
|

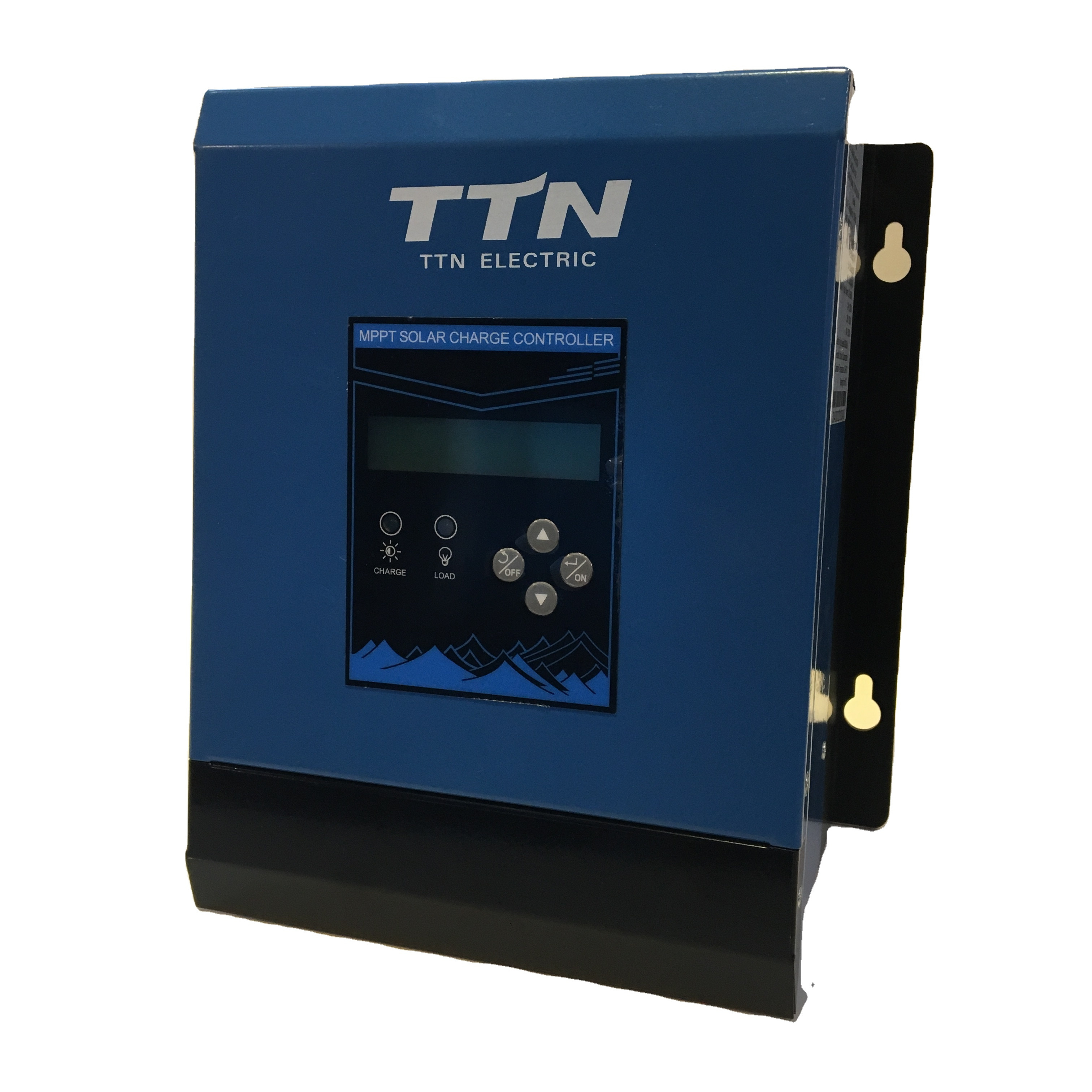

100A MPPT Solar Charge Controller
|
|
Solar System Voltage
|
12/24/36/48V Auto Work
|
|
Electrical
|
|
|
PV Operating Voltage
|
12V 18~150Vdc
24V 35~150Vdc
36V 50~150Vdc
48V 60~150Vdc
|
|
Max. PV Input Power
|
12V 1400W
24V 2800W
36V 4200W
48V 5400W
|
|
Rated Output Current
|
100A
|
|
Rated DC Load Current
|
60A
|
|
Self Consumption
|
2W
|
|
Max. Conversion Efficiency
|
98.5%
|
|
Protection
|
PV array short circuit, Over charging, battery reverse polarity, output short circuit
|
|
Battery Charging
|
|
|
Battery Type
|
Sealed/AGM/Gel/Flooded/Lithium
|
|
Charge Algorithm
|
4 stage: bulk, absorption, float, equalize charging
|
|
Bulk charge voltage
|
Sealed: 14.4V AGM 14.2V Gel 14.2V Flodded 14.6V User defined 10-15V
|
|
Float charge voltage
|
Sealed/Gel/AGM 13.8V Flodded 13.7V User defined 10-15V
|
|
Equalize charge voltage
|
Sealed: 14.6V AGM 14.8V Flodded 14.9V
|
|
Load disconnect voltage
|
10.5-12V adjustable
|
|
Load reconnect voltage
|
12.5V
|
|
Temperature compensation
|
5mV/℃/2V with BTS
|
|
Communication
|
|
|
Communication port
|
RS485 (Standard) Ethernet RS232 Optional with On line monitoring system
|
|
Physical
|
|
|
Net weight
|
9.0kg
|
|
Gross weight
|
10kg
|
|
Dimension (mm)
|
405*230*110
|
|
Cooling
|
Heatsink cooling
|
|
Enclosure
|
IP45
|
|
Environment
|
|
|
Ambient operating temperature
|
-25℃~60℃
|
|
Storage temperature
|
-40℃~60℃
|
|
Humidity
|
5%-95% non-condensing
|
