Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CIMIC
-
Dimension(L*W*H):
-
3.5*2*1.3
-
Weight:
-
1500 KG
-
connection form:
-
trailed
-
matched power:
-
100-140
-
(r/min) PTO speed:
-
540
-
unload form:
-
offset loading
-
(ha/h) working efficiency:
-
4-5
-
(cm) working depth:
-
0-30
-
(cm) row distance:
-
80-90 adjustable
Quick Details
-
Number of Rows:
-
2
-
Working Width(mm):
-
3000 mm
-
Tractor Power(HP):
-
100 - 200 HP
-
Place of Origin:
-
China
-
Brand Name:
-
CIMIC
-
Dimension(L*W*H):
-
3.5*2*1.3
-
Weight:
-
1500 KG
-
connection form:
-
trailed
-
matched power:
-
100-140
-
(r/min) PTO speed:
-
540
-
unload form:
-
offset loading
-
(ha/h) working efficiency:
-
4-5
-
(cm) working depth:
-
0-30
-
(cm) row distance:
-
80-90 adjustable

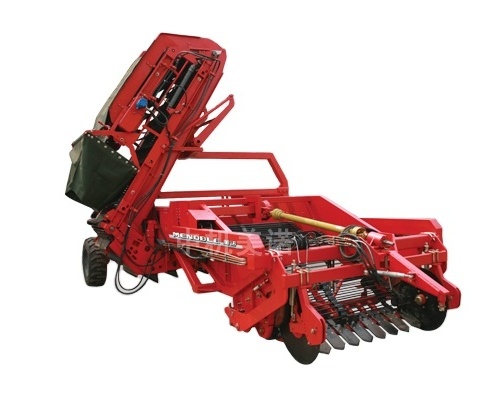

It can perform digging, separating, removing haulm and offset swath loading only in one step
-
high harvesting efficiency, low lost, rapid cost recovery
-
Two web grades devices have forced vibration and two-grade haulm-removing with high separation efficiency.
-
Floating discs cutter design with more efficiently cutting and small digging resistance
-
Cast rubber bund driving wheel, an advanced international technology, can reduce chain wearing and extend machine life.
1710A install a conveyor arm on the 1700, it could cooperate with 1900 potato loader wagon to convey the potato directly on the truck which could save the labor greatly, additional one web make conveyor 4 step folding and easy to transport. main specification
model
1700
1710
1710A
dimension(LXWXH)
5.5×2.23×1.65
5.5×3.3×3.4
6.3×3.8×2.6
(kg) weight
5000
5600
5600
connection form
trailed
(hp) matched power
100-140
(r/min) PTO speed
540
unload form
offset loading
unload to truck
( ha /h) working efficiency
8-10
(cm) working depth
0-30
(cm) row distance
80-90 adjustable
