Quick Details
-
1310nm optical transmitter Output:
-
RF
-
DS channels:
-
16
-
US channels:
-
4
-
1310nm optical transmitter Interface:
-
1*SFP;1*1000M LAN port
-
DS QAM standard:
-
Annex A, B, C
-
DS QAM modulation:
-
64QAM, 256QAM
-
DS Channel bandwidth:
-
6~8Mhz
-
US QAM standard:
-
Annex A, B, C
-
US QAM modulation:
-
QPSK 16QAM, 64QAM
-
Product name:
-
docsis 3.0 cmts
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibvision
-
Model Number:
-
DB-CMTS8300
-
1310nm optical transmitter Output:
-
RF
-
DS channels:
-
16
-
US channels:
-
4
-
1310nm optical transmitter Interface:
-
1*SFP;1*1000M LAN port
-
DS QAM standard:
-
Annex A, B, C
-
DS QAM modulation:
-
64QAM, 256QAM
-
DS Channel bandwidth:
-
6~8Mhz
-
US QAM standard:
-
Annex A, B, C
-
US QAM modulation:
-
QPSK 16QAM, 64QAM
-
Product name:
-
docsis 3.0 cmts
DIBSYS docsis 3.0 cmts integrate qam modulator ethernet over coax cable modem
Hightlights
• C-DOCSIS module, optical receiver module and ONU module three-in-one product, intergrated solution deployed in optical node.
• Optical receiver adopt liner design, easy to do on-site replacement
• Modules' organic intergration,reduce the overall power
• Outdoor IPV6 waterproof type design, work Temperature at -25℃~75℃
• 1 SFP interface or 1 1000M LAN business port
• Support IPQAM module
• 4 channels output, maximum out level is 110dbuv
• 4 channels upstream,16 channels downstream.
• Upsream frequency range:5-65Mhz, down stream frequency range:87~1000Mhz
(Biggest difference of the 16 frequency points is less than192 Mh)
Technical specifications
|
DS
|
|
|
|
QAM standard
|
Annex A, B, C
|
|
|
QAM modulation
|
64QAM,256QAM
|
|
|
DS channels
|
16
|
|
|
DS maxi speed
|
800Mbps
|
|
|
Work frequency
|
87Mhz - 1000Mhz
|
|
|
Channel bandwidth
|
6~8Mhz
|
|
|
US
|
|
|
|
QAM standard
|
Annex A, B, C
|
|
|
QAM modulation
|
QPSK 16QAM,64QAM
|
|
|
US channels
|
4
|
|
|
US maxi speed
|
160Mbps
|
|
|
Work frequency
|
5Mhz - 65Mhz
|
|
|
Out level range
|
-13~23dbmv
|
|
|
Others
|
|
|
|
maximum CM
|
511
|
|
|
Maximum CPE
|
2000
|
|
|
Dynamic load balancing
|
support
|
|
|
DHCP relay
|
support
|
|
|
Qos
|
support
|
|
|
management
|
Web, CLI, talnet, SSH, network
|
|
|
ONU
|
|
|
||
|
PON interface
|
1Gbps transmission rate with downlink and uplink symmetry
|
|
||
|
|
Optical interface type
|
SC/PC
|
||
|
|
Hi-sensible optical receiver
|
≥ -26dBm
|
||
|
|
Power
|
2~7dBm
|
||
|
|
security
|
ONU authentication mechanism
|
||
|
VLAN
|
Port based VLAN
IEEE 802.1 Q VLAN
|
|
||
|
Service quality
|
Back pressure stream control(Half duplex)
IEEE 802.3X stream control (Full duplex)
|
|
||
|
RF out
|
|
|
|
Out Impedance:
|
75
|
|
|
Band rejection
|
>50db
|
|
|
MER
|
>42db
|
|
|
Maxi power
|
110dbuv
|
|
|
channels
|
4
|
|
|
Environment
|
|
|
|
Power supply
|
220V/110V/60V
|
|
|
Power
|
<50W
|
|
|
Temperature
|
-30℃ - 70℃
|
|
|
Humidity
|
10% - 90%
|
|
|
Size(mm)
|
385x350x161
|
|
|
Optical receiver liner index
|
|
|
|
Optical parameter
|
Optical receiver power: +2~-9
|
|
|
|
Optical AGC range: +2~-8/-7/-6/-5(Adjustable)
|
|
|
|
Optical reflection loss: >45db
|
|
|
|
Optical Wave length: 1100-1600nm
|
|
|
|
Optical receiver type: FC/APC,SC/APC(Or specified by user)
|
|
|
|
Optical type: Single mode
|
|
|
Link performance
|
C/N: ≥51dB
|
|
|
|
C/CTB: ≥65dB
|
|
|
|
C/CSO: ≥60dB
|
|
|
|
-1dBm optical input,output level is 106dBv
|
|
|
RF parameter
|
Frequency range: 45/87~1003MHz
|
|
|
|
Band flatness: ±0.75dB
|
|
|
|
Norminal output level: ≥106dBv(4 channels distribution out ), ≥110dBv(2 channels independent out)
|
|
|
|
Maximum output level: ≥112dBv
|
|
|
|
Output reflection loss (85~550MHz): ≥16 / (550~1000) ≥14
|
|
|
|
Redundancy isolation: ≥75
|
|
|
|
Output impedance:75Ω
|
|
|
|
Electronic control equilibrium range: 0~15(steping)
|
|
|
|
Electronic control attenuation range: 0~20(steping)
|
|
General Introduction

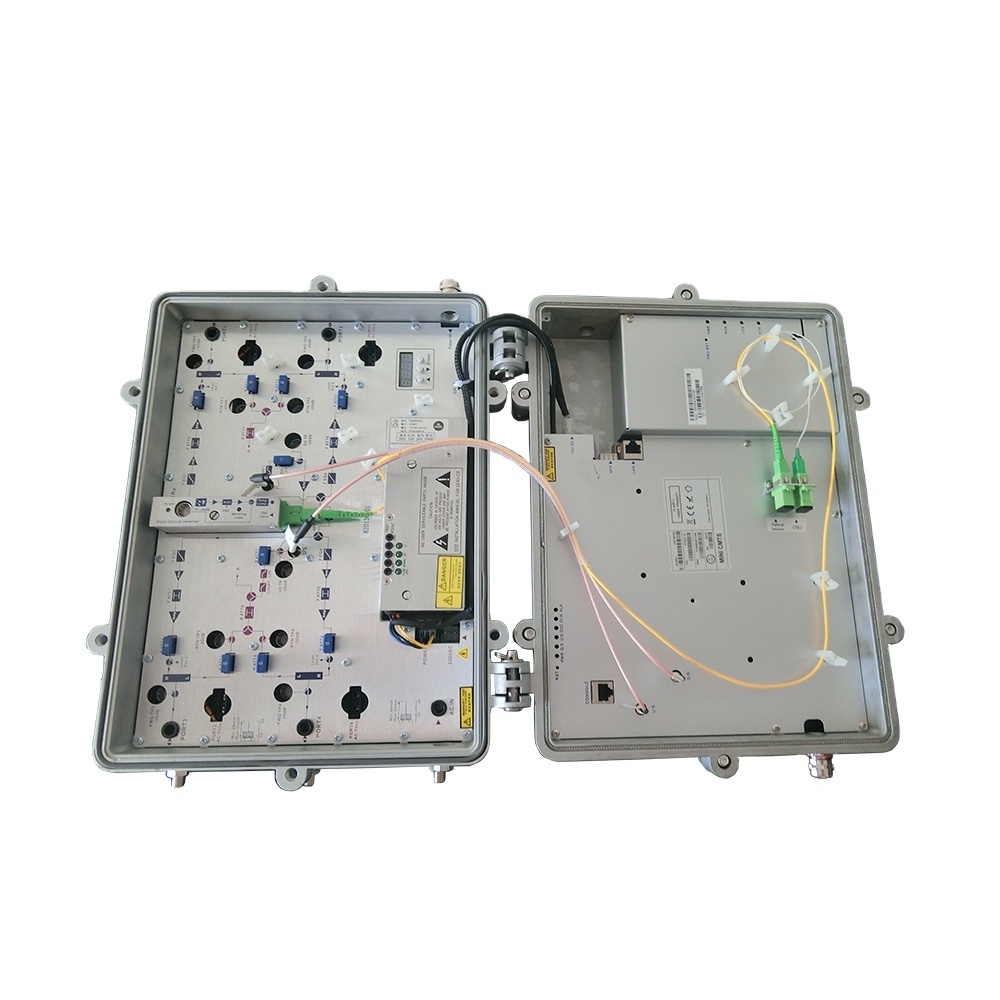

This is a three-in-one chassis CMTS products containing optical receiver module, ONU module and the C-DOCSIS module. It is deployed at the optical nodes for the integrated solutions. The C-DOCSIS module is strictly according to its standard. With a high degree of standardization, it effectively fulfills the requirements of the existing and future C-DOCSIS technical standards. The optical receiver module and the ONU module adopt matured ones and go for commercial use stably and reliably over five years.The three-in-one modules are mutually independent and field replaceable. And the maintenance is also very convenient.
The product provides 16 downstream channels, bandwidth to 800Mbps; 4 upstream channels , bandwidth to 160Mbps,fulfilling the broadband accessing of 960Mbps. It can support 511 Cable Modems online simultaneously, fully compatible with the DOCSIS2.0,3.0 Cable Modem.
• 1 SFP interface and 1 1000M LAN business port.
• 1 100M LAN management port.
• Build-in CATV signal mixer, 2in 2out.
• Small dimension design, size is only 260mm×331mm×57mm.
• Support bulit in IPQAM module
• External adpter, power supply is 12V/4A
• Maximum output signal is 98dbuv
• Upsream frequency range:5-65Mhz, down stream frequency range:87~1000Mhz
