Quick Details
-
Material:
-
SUS304 bluing
-
Voltage:
-
100~120V/220~250V Optional
-
Power:
-
800-1500W
-
Outside diameter:
-
6.6mm
-
Electric heating element life:
-
≥3000 hours
-
Application:
-
electrical oven
-
Cold insulation:
-
≥50MΩ
-
Surface load:
-
≤5.5W/cm square
-
Certification:
-
CQC
Quick Details
-
Brand Name:
-
Heng Guan
-
Model Number:
-
heating element for home appliance
-
Product name:
-
Zhongheng electric heating element with temperature control
-
Material:
-
SUS304 bluing
-
Voltage:
-
100~120V/220~250V Optional
-
Power:
-
800-1500W
-
Outside diameter:
-
6.6mm
-
Electric heating element life:
-
≥3000 hours
-
Application:
-
electrical oven
-
Cold insulation:
-
≥50MΩ
-
Surface load:
-
≤5.5W/cm square
-
Certification:
-
CQC

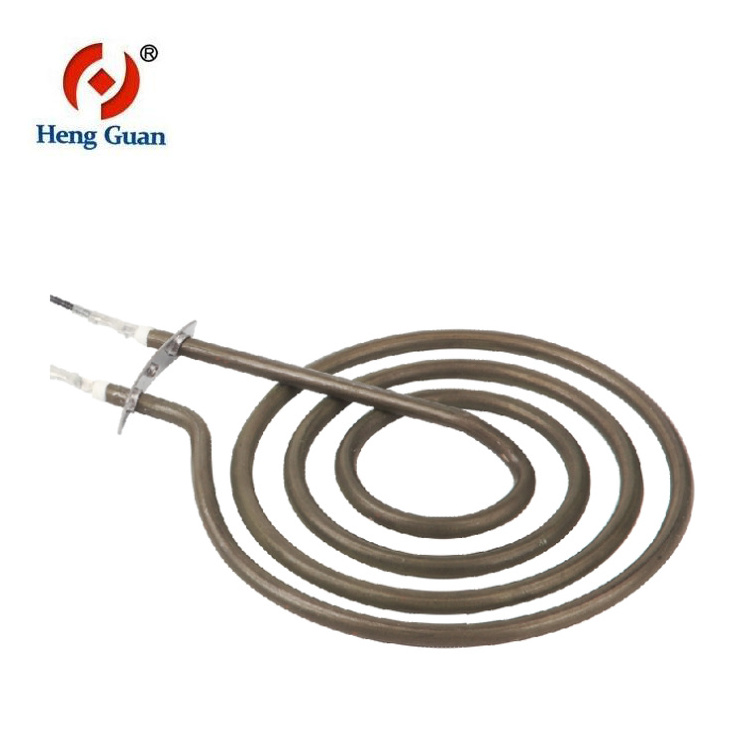

Zhongheng professional electric heating element with temperature control
Parameter:
| No. | Main Parameters | |
| 1 | Model No. | ZGS066 |
| 2 |
Material |
SUS304,Bluing |
| 3 | Voltage | 100~120V/220~250V Optional |
| 4 | Power | 800-1500W |
| 5 | Surface load | ≤5.5W/cm² |
| 6 | Cold insulation | >50MΩ |
| 7 | Heating Element end-use condition | Heat air |
| 8 | Withstand voltage | Cold condition 1800V/0.5mA/1S no breakdown |
| 9 | Leakage current | <0.5mA ( when using the rated voltage) |
| 10 | Application | Electrical oven |
Remark:
The installation and outside dimension is subject to the client's requirement.
Our advantages:
High reliabilities
Wide control range
Great contact capacity
Accurate temperature controlling
Why choose us:
1.Inquiry response: Your inquiries will be replied in 2 hours workingday.
2.Payment & Delivery: T/T,L/C,West Union(samples only)
3.100% QC inspection before shipment
4.Delivery time: 15-40days once receiving the payment.
5.Our products always got the praise from customers, whether price or quality.
Packing:
50 pcs/ctn
Standard export packaging
Size of the carton: 42cm*42cm*24.5cm
Firstly, we have a professional team ready to working for your order.
Secondly, we have a range of high quality electric and industrial heating elements.
After have a browse at our electric and industrial heating elements merchandise, we'll make sure that you won't be disappionted.
Please kindly advise your specifications or drawing with following information when you inquiry:
1.Tube (Materials, diameter, length)
2.Wattage and voltage
3.Working environment and temperature
4.Type of terminal
5.Drawing of special type configuration
6.Special testing requirements before shipment
