Quick Details
-
Dimension(L*W*H):
-
6700 x 850 x 1520mm
-
Power (kW):
-
8.5
-
Weight (KG):
-
2800 kg
-
Panel Feed Speed(m/min):
-
20m/min
-
Name:
-
Automatic Edge Banding Machine
-
Banding Tape Thickness:
-
0.4-3mm
-
Workpiece Thickness:
-
10-60mm
-
Workpiece Length:
-
>=100mm
-
Workpiece Width:
-
>=50mm
-
Heating Power:
-
1.8kw
-
Feeding Motor Power:
-
3.7kw
-
Feeding Speed:
-
10-23m/min
-
Air Pressure:
-
0.8Mpa
-
Overall Dimension:
-
6700 x 850 x 1520mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Joway
-
Voltage:
-
custom
-
Dimension(L*W*H):
-
6700 x 850 x 1520mm
-
Power (kW):
-
8.5
-
Weight (KG):
-
2800 kg
-
Panel Feed Speed(m/min):
-
20m/min
-
Name:
-
Automatic Edge Banding Machine
-
Banding Tape Thickness:
-
0.4-3mm
-
Workpiece Thickness:
-
10-60mm
-
Workpiece Length:
-
>=100mm
-
Workpiece Width:
-
>=50mm
-
Heating Power:
-
1.8kw
-
Feeding Motor Power:
-
3.7kw
-
Feeding Speed:
-
10-23m/min
-
Air Pressure:
-
0.8Mpa
-
Overall Dimension:
-
6700 x 850 x 1520mm
Product Description

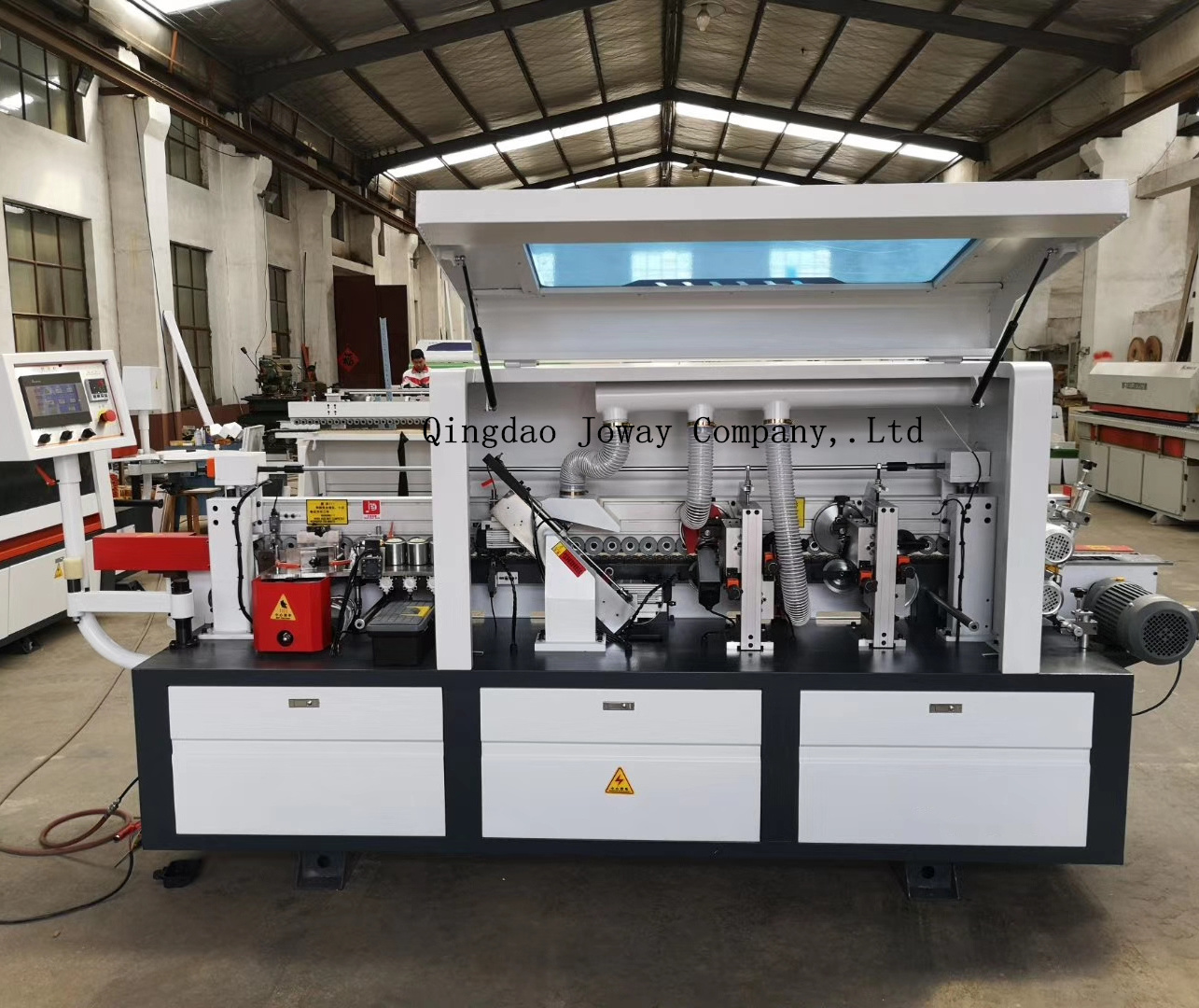

Automatic edge banding machine
1. Applicable products: solid wood panels, fibreboard. particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester,melamine and wood, and so on.
2.Achieve results: a high degree of automation, high efficiency, high precision and high aesthetics.
3.Structural advantages: laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that each processing department can work fine. Processing components imported motor and high- quality electrical components.
Suitable for processing all kinds of MDF, particleboard, wood-based panels, ASB panels, PVC panels, plexiglass panels, etc.
Specification
|
Product name
|
Automatic edge banding machine
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
JX-03
|
JX-04
|
JX-05
|
JX-04A
|
JX-05A
|
JX-06A
|
JX-07A
|
JX-07B
|
JX-08AB
|
||||||||
|
Total power
|
3.5KW
|
4KW
|
5KW
|
6KW
|
7KW
|
8.5KW
|
15.5KW
|
11.5KW
|
19.5KW
|
||||||||
|
Banding Tape Thickness
|
0.4-3mm
|
|
|
|
|
|
|
|
|
||||||||
|
Banding Tape Width
|
12-65mm
|
|
|
|
|
|
|
|
|
||||||||
|
Workpiece Thickness
|
10-60mm
|
|
|
|
|
|
|
|
|
||||||||
|
Workpiece Length
|
>=100mm
|
|
|
|
|
|
|
|
|
||||||||
|
Workpiece Width
|
>=50mm
|
|
|
|
|
|
|
|
|
||||||||
|
Feeding Speed
|
10-23m/min
|
|
|
|
|
|
|
|
|
||||||||
|
Air Pressure
|
0.8Mpa
|
|
|
|
|
|
|
|
|
||||||||
|
JX-03
|
gluing ,pressing,fine trimming and buffing
|
|
|
|
|
|
|
|
|
||||||||
|
JX-04
|
gluing ,pressing,fine trimming,scraping and buffing
|
|
|
|
|
|
|
|
|
||||||||
|
JX-05
|
gluing ,pressing,rough trimming,fine trimming,scraping and buffing
|
|
|
|
|
|
|
|
|
||||||||
|
JX-04A
|
gluing ,pressing,end cutting,fine trimming and buffing
|
|
|
|
|
|
|
|
|
||||||||
|
JX-05A
|
gluing ,pressing,end cutting,fine trimming,scraping and buffing
|
|
|
|
|
|
|
|
|
||||||||
|
JX-06A
|
gluing ,pressing,end cutting,rough trimming,fine trimming,scraping and buffing
|
|
|
|
|
|
|
|
|
||||||||
|
JX-07A
|
gluing ,pressing,end cutting,rough trimming,fine trimming, corner rounding,scraping and buffing
|
|
|
|
|
|
|
|
|
||||||||
|
JX-07B
|
pre-milling,gluing ,pressing,end cutting,rough trimming,fine trimming,scraping and buffing
|
|
|
|
|
|
|
|
|
||||||||
|
JX-08AB
|
pre-milling,gluing ,pressing,end cutting,rough trimming,fine trimming, corner rounding,scraping and buffing
|
|
|
|
|
|
|
|
|
||||||||
Details Images
Structure function introduction
1. Gluing and pressing device
Gluing and pressing device is sealed by special structure side plate and edge sealing material coating evenly,ensure the adhesive force is stronger .
2. Front and rear flush device
The device moves through a precise linear guide,adopt automatic tracking by modeling and high frequency motor cutting and other structures to ensure the cutting surface smooth.
3. Coarse and fine repair device
The coarse and fine finishing device is used to repair and process plate seals .Excess edge sealing material in upper and lower parts of side band shall be taken Fast cutting with mould tracing and high frequency motor Cut the structure, to ensure the edge of the plate up and down Part flat and smooth.
4. Edge scraping device
Edge scraper is used to eliminate non straight lines due to trimming A ripple mark caused by moving cutting Trace makes the upper and lower parts of sapwood more smooth and tidy.
5. polishing device
polishing device is cleaaned and processed with cotton polishing wheelgood plate ,through polishing to make edge sealing end more smooth.
6.The premilling device
The premilling device USES double milling cutter to cut the plate The resulting ripple marks are Modified again,better edge sealing effect has been achieved.
7.Tracking copying device
Tracking copying device to ensure the completion of work piece processing Aesthetic touch and visual effects, can achieve a variety of Conformal effect.
8.Slotting device
slotting device for side plate ,direct slotting ,reduceless cutting plate saw process ,more convenient and fast .
Optional Parts
Pure white rubber particles and mixed color rubber particles provide ultra strong adhesion.
Different styles and colors of edge banding support customization.
Effect Contrast
Our Advantages
Large edge banding machine factory, specializing in mass production.
Packing & Delivery
Wrap film and wooden box packaging machines to ensure the safety and stability of the machine during transportation.
