Quick Details
-
Main Circuit Rating Voltage:
-
220v
-
Main Circuit Rating Current:
-
25A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Boerstn
-
Model Number:
-
LC1-D
-
Rated current:
-
25A
-
Frequency:
-
50/60hz
-
contact material:
-
85% silver
-
case material:
-
Bakelite
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
220v
-
Main Circuit Rating Current:
-
25A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Boerstn
-
Model Number:
-
LC1-D
-
Rated current:
-
25A
-
Frequency:
-
50/60hz
-
contact material:
-
85% silver
-
case material:
-
Bakelite

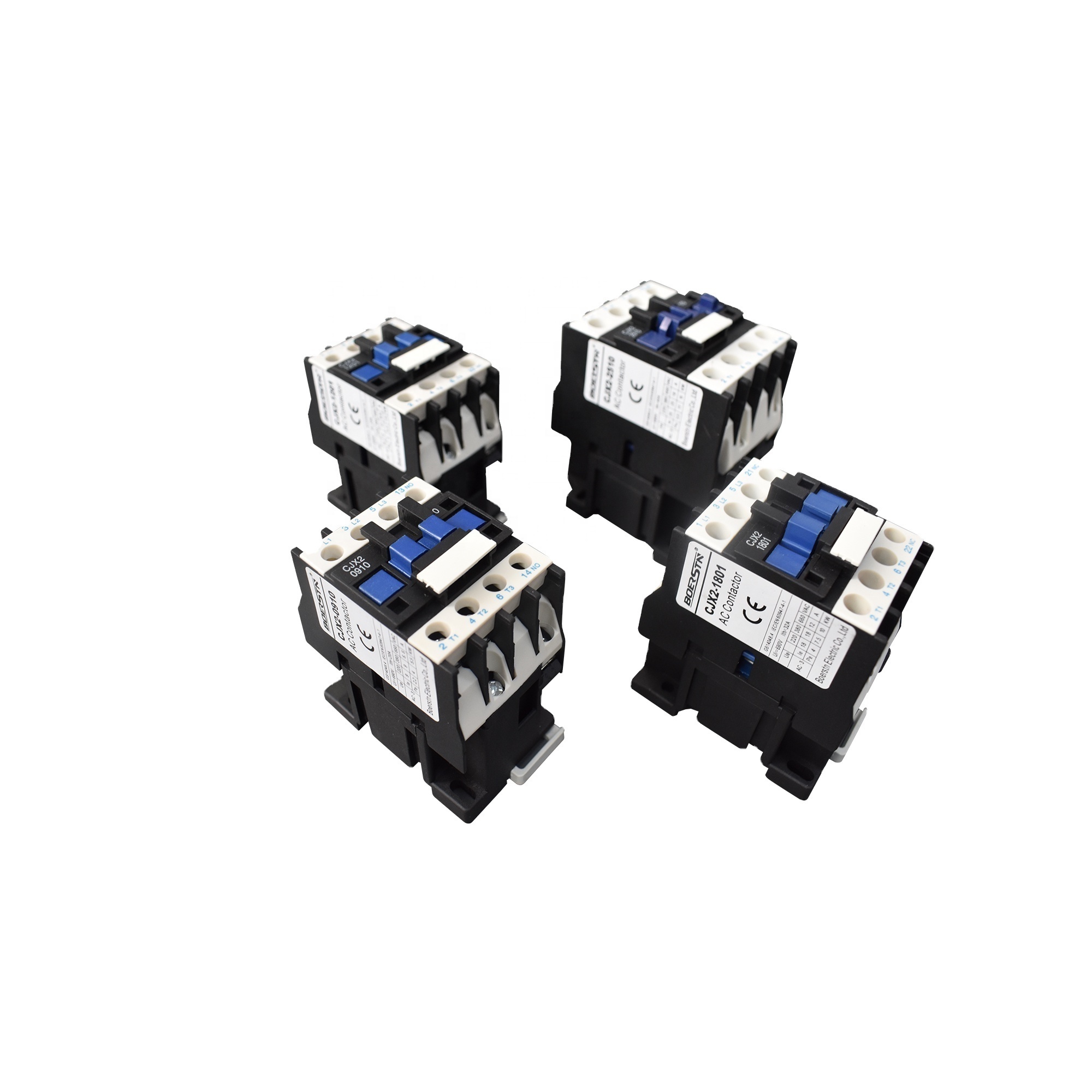

CJX2(LC1-D) contact industries contactors
Application
CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4, GB14048-4.
| model | Rated | Thermal current | Rated | Control power(kw) | No .of contacts | ||||
| voltage | current | 220V | 380V | 415V | 440V | 660V | |||
| LC1-D09 | 660V | 20A | 9A | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO+NC |
| LC1-D12 | 660V | 20A | 12A | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO+NC |
| LC1-D18 | 660V | 32A | 18A | 4 | 7.5 | 9 | 9 | 9 | 3P+NO+NC |
| LC1-D25 | 660V | 40A | 25A | 5.5 | 11 | 11 | 11 | 15 | 3P+NO+NC |
| LC1-D32 | 660V | 50A | 32A | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO+NC |
| LC1-D40 | 660V | 60A | 40A | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC |
| LC1-D50 | 660V | 80A | 50A | 15 | 22 | 25 | 30 | 33 | |
| LC1-D65 | 660V | 80A | 65A | 18.5 | 30 | 37 | 37 | 37 | |
| LC1-D80 | 660V | 125A | 80A | 22 | 37 | 45 | 45 | 45 | |
| LC1-D95 | 660V | 125A | 95A | 25 | 45 | 45 | 45 | 45 | |
Our company- Wenzhou Boerstn Electric co.,ltd is a professional manufacturer of L.V. & H.V. electric power distribution equipments & switchgears and some relative electric accessories . We are mainly engaged in the development & production of LV and H.V. electric power distribution equipments and switchgears. We are ISO9001 certificated enterprise, some of our products have got CE,CB,Semko,TUV,Rohs certificate to guarantee the products. We have latest technology support and R&D team,can design and make various of power distribution equipments as customers requirements after getting the design drawing or detailed need. We accept OEM,ODM. We also supply top quality electrical power parts like circuit breakers (MCB,RCBO,MCCB,ACB,VCB..),AC contactors, Relays,panel meters..etc. If you are interested in cooperation with us ,please do not hesitate to contact us.
