AOYU 2.5m tent factory outdoor transparent garden igloo tent geodesic dome

AOYU 2.5m tent factory outdoor transparent garden igloo tent geodesic dome

FOB Reference Price: Get Latest Price

≥1 Square meters

US $3500

≥10 Square meters

US $3200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Fabric:: Polycarbonate

Product Name:: glamping tent luxury hotel resort transparent bubble dome tent

Material feature:: Class B1 flame retardant, no harmful substances

Service life:: more than 20 years

Warranty:: PC,aluminum frame for 3 Years

Applicable temperature:: -40~80℃

Installation method:: modular flexible splicing

Basic Configuration:: PC transparent frame, aluminum base, aluminum alloy door

Quick Details

Brand Name:: AOYU, AOYU

Place of Origin:: Shanghai, China

Model Number:: PC-240430

Fabric:: Polycarbonate

Product Name:: glamping tent luxury hotel resort transparent bubble dome tent

Material feature:: Class B1 flame retardant, no harmful substances

Service life:: more than 20 years

Warranty:: PC,aluminum frame for 3 Years

Applicable temperature:: -40~80℃

Installation method:: modular flexible splicing

Basic Configuration:: PC transparent frame, aluminum base, aluminum alloy door

AOYU c rystal house is created by Shanghai Ceyu company as characteristic tourism and residential products in recent years, which can be used in scenic spots, homestays, resorts, star hotels, villas, commercial complexes, specialty restaurants, coffee shops,hot spring baths, outdoor hotels, camping, outdoor Campsites, agricultural sightseeing, tourism, ecological parks, net celebrity check-in areas etc.

At present, the company has different specifications such as 2.5M, 3M, 4M, 5M, 6M in diameter, and products of different specifications can be spliced and combined for use with each other, which has high flexibility and realizes different functions.

Products Description

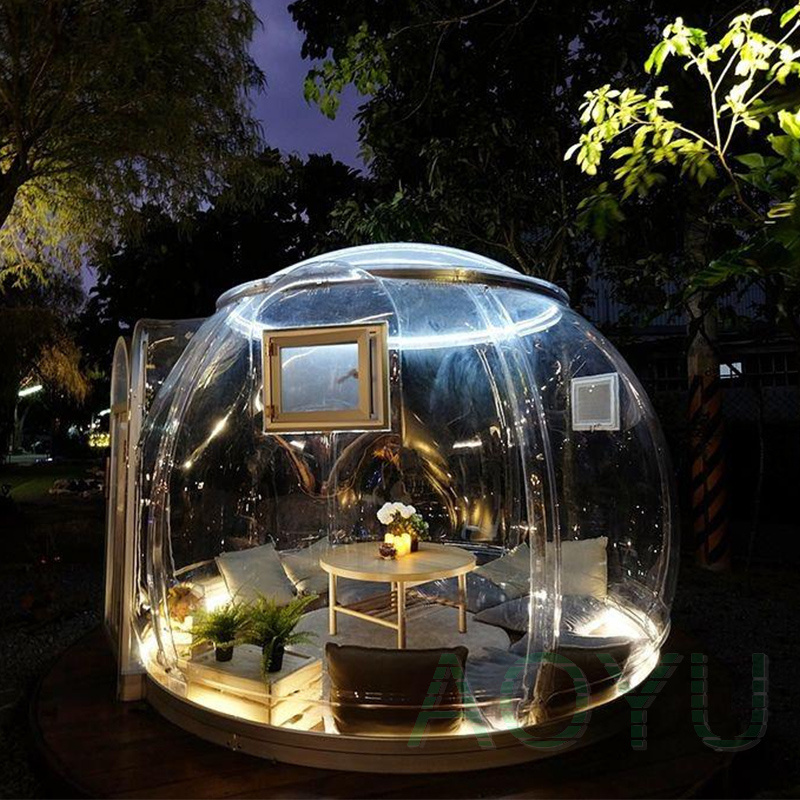

2.5M PC DOME TENT

Product structure: dome structure + aluminum profile structure + PC board modular assembly

Product material: polycarbonate PC board + aluminum profile

Body color: transparent

Product features: 360° panoramic viewing angle

P roduct size: see product description for details

Product application: outdoor camps, homestays, outdoor hotels, scenic sightseeing, commercial integration, etc.

Explosion-proof and compressive

Aerospace PC material outer layer can resist kPa pressure

Water&wind proofing

Steel ring screws are used at the bottom to fix the outer PC board tightly, which can be windproof and waterproof to level 10

Fire retardant

PC raw material structure is stable, non-flammable in fire

Environmental-friendly

Polycarbonate sheet is non-toxic, odorless, green and environmentally friendly, recyclable

Long life time

The product has a service life of up to 25 years, and the outer layer of the product will not be oxidized by air and aged by high temperature

Security

Aluminum alloy door with high-tech electronic lock, buzzer alarm for illegal intrusion

High privacy

Blackout curtain design 3D sound insulation

UV-rays retardant

Surface 50um UV absorber ,powerful anti-ultraviolet function

Ventilated

Window space capsule design,easy to breathe

Product Paramenters

Performance indicators of polycarbonate
Performance	Testing method	Unit	Numerical value
Density	ASTM D792	Kg/m³	1200
Water absorption, 24 hours	ASTM D570	%	0.15
23℃ moisture absorption	ASTM D570	%	0.35
Light transmittance (5mm )	ASTM D1003	%	88
Refractive index	ASTM D542	%	1.586
yellowing index (3 years)	ASTM D1925	%	2.5
Tensile yield strength	ASTM D638	Mpa	63
Tensile breaking strengt	ASTM D638	Mpa	72
Tensile elongation at break	ASTM D638	%	150
Tensile modulus	ASTM D638	Mpa	2480
Flexural modulus	ASTM D790	Mpa	2410
Notched impact strength	ASTM D256	J/m	950
Thermal expansion coefficient	ASTM D696	1/℃	6.7*10-5
Thermal conductivity	DIN 52612	W/m,℃	0.21
Heat distortion temperature, Af, 1.82Mpa, (4mm)	ASTM D648	℃	132
Flame retardant	GB8624—2012		B1
Oxygen Index	ASTM D2863	%	26

The main technical parameters of the product
Sound insulation coefficient of 5mm polycarbonate board-according to (GB/T19889.3-2005 GB/T 50121-2005)
1/3 octave center frequency (HZ)			R（dB）

100			10.2
125			13.6
160			14.2
200			15.6
250			17.8
315			18.6
400			19.2
500			22.6
630			23.8
800			25.2
1000			26.4
1250			27.8
1600			29.6
2000			31.4

Crystle Bubble House Hotel

Project name: Bubble House Hotel

Location : Chaka Sky No.1 Scenic Area, Qinghai, China

Invest area: 15 square kilometers

Invest amounts: USD1000，000

Products: Polycarbonate Crystle House 30 Suits

Project description: The Sky "No. 1 scenic spot" is located in Chaka town, Wulan County, Haixi Prefecture, Qinghai Province. It is located in Chaka Salt Lake with the "Sky Mirror" scenic spot. The Sky No. 1 scenic spot was just opened last year. It is a newly-built scenic spot in Chaka Salt Lake, it is also the first attraction of the Qaidam Basin.

Accessory Products

1. The PC Star House configuration includes: PC shell part, installation accessories, aluminum alloy door, aluminum alloy floor-to-ceiling window, ordinary door lock, Fixed base at the bottom, connected base at the top.

2. PC Star House configuration does not include: floor, furniture, bathroom, exhaust fan and curtain soft decoration, etc. If you need to increase it, you can negotiate separately.

3. Optional accessories for PC starry sky house:

(1) aluminum alloy floor-to-ceiling windows

(2) aluminum alloy reinforced supporting columns: diameter of 6m/5m/4m /3m/2.5m

(3) code lock

FAQ

1.What is the material of the product？

The main body of shenbao clear dome tent is made of polycarbonate（PC） and aluminum profile.Polycarbonate has the characteristics of flame retardancy, high toughness,high strength,non-toxicity and no odor,and it is the basic material for making bulletproof glass. The surface of aluminum profile is hard anodized, with high hardness and good weather resistance.

2.How long is the s ervice life of product？

The product is mainly used outdoors,and the life expectancy can reach 30 years under regular cleaning and maintenance.

3.Do the products safety enough?

Different from the ordinary transparent bubble tents on the market, Our transparent PC dome does not need to be inflated,and it has strong impact resistance. The product can withstand 500kg pressure, and the wind resistance level is 10,which can be used safety under thunderstorm,snow,desert and other harsh outdoor conditions.

4.How to install?

The transparent geodesic domes are modularized,shipped in pieces,and assembled on site.The installation is fast and easy,please refer to the installation instructions or installation video provided by our sales.The installation platform needs flat and sturdy,generally used is a wooden or a cement platform.
