Quick Details
-
Brand Name:
-
YNMC
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
3000
-
Product name:
-
container fuel mobile petrol filling station
-
Material:
-
Carbon steel/stailess steel
-
Medium:
-
oil/water/chemicals
-
Volume:
-
5000L-100000L
-
Shape:
-
Cylinder Liquid Storage Tank
-
Thickness:
-
6-10mm
-
Usage:
-
Store oil
-
Size:
-
Customized Size
-
Test pressure:
-
0.8MPa-1.6MPa
-
Certification:
-
ISO CE
Quick Details
-
Capacity:
-
5000L-100000L
-
Max Working Pressure(MPa):
-
0.08 MPa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YNMC
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
3000
-
Product name:
-
container fuel mobile petrol filling station
-
Material:
-
Carbon steel/stailess steel
-
Medium:
-
oil/water/chemicals
-
Volume:
-
5000L-100000L
-
Shape:
-
Cylinder Liquid Storage Tank
-
Thickness:
-
6-10mm
-
Usage:
-
Store oil
-
Size:
-
Customized Size
-
Test pressure:
-
0.8MPa-1.6MPa
-
Certification:
-
ISO CE

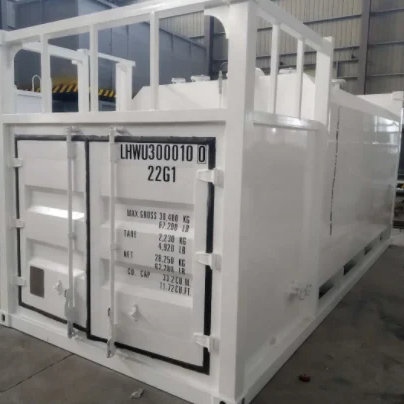

Skid-mounted Gas Station/Mobile Petrol Filling Station
Fuel tank container mobile petrol filling station makes use of technological explosion barrier and will not explosion when meeting fire, static electricity, hitting, lightning, shooting and welding to be one of the storage tank, tanker and video surveillance.Morever, these features are for this station flow: preventing fire and explosion , security, sall footprint and easily moved.
|
Model |
YN20-40 |
|
Type |
P Type; horizontal; double action; reciprocating piston; |
|
Theoretical capacity |
1000Nm3/h; |
|
Media |
Desulfurized natural gas (main composition CH4); |
|
Ambient work temperature |
-15~+45°C; |
|
Compression stage |
2 stages; |
|
Suction status |
5MPa at temperature 0~35°C; |
|
Outlet discharge pressure |
25Mpa at temperature ≤45°C or less than ambient temperature 15°C(afer cooling); |
|
Piston reciprocating times |
11~13 times/minute; |
|
Main oil pump type and constant power rate |
bent axis axial variable pump(L7V117LV2.0RP00) |
|
Constant power output |
28KW; |
|
Constant power input |
≤35KW; |
|
Oil pumpconstant power minimum adjustable pressure |
10.2MPa; |
|
Hydraulic system maximum work pressure |
16.0MPa; |
|
Oil pump maximum oil supply |
164L/min.; |
|
Oil pump maximum oil supply |
127L/min.; |
|
Driving mode |
electric motor; direct coupling; by oil pump; |
|
Electric motor model No. |
Explosion-proof motor No. YB2-225M-4B35; 37KW; 1480rpm; Diibt4; |
|
Oil lubrication mode |
Oil free in cylinder and packing assembly; |
|
Power rate for air cooler |
cooling air 1.5KW; cooling hydraulic oil 2.2KW; |
|
Control mode |
PLC + Touch Screen+Soft Starter; |
|
Cooling mode |
Natural cooling for cylinder; air cooling for gas; |
|
Installation mode |
outdoor; skid mounted fixation; |
|
Total weight of skid mounted unit |
7150KG; |
|
Overall sizes of skid mounted container (LxWxH) |
3350×2330×2700mm |
T he standard equipment s of the container fuel station flows :
20ft/40ft container; Sing l e wall carbon steel oil storage tank;
Fuel dispenser 50liters/min dispenser (220V/380V) with one(two) nozzle for one(two)kind of oil;
fuel transfer pump, approximately 5 00Liter/min. Capable unloading and supply.
Fuel filter; Electricity distribution box, explosion proof Lighting,
1 set of Fire Extinguisher, Vent and its valve,Dipstick, cap and its port;
Static grounding alarm device,
Fuel fill point (Cam Lock) / Overfill protection valve Liquid level meter,Manhole and its cover ;
1 set of inlets, outlets, manhole, 1 set of blow-off pipe(with valve)
Advantages :
Container petrol station completely autonomous, well-equipped, just three hours can operate, mobile/maneuverability is strong, only need little preparation, without land costs, the container is very sturdy.
1, mobile, timely provide temporary and emergency needs;
2, safety explosion-proof, automatic fire extinguishing;
3, protect the environment, from tank to move down to the ground, preventing the oil spill pollution;
4, cover an area of an area small;
5, low input costs, than traditional gas station more than save money more than half. (flammable)
6, good after-sales service system, has a perfect global after-sale service system
7 design and manufacture the container gas station as customers’ need.
