Quick Details
-
Type:
-
Li-Ion/lithium/lifepo4
-
Battery type:
-
LiFePO4
-
Nominal Voltage:
-
51.2V
-
Product name:
-
Home Powerwall Battery
-
Nominal Capacity:
-
10KWH
-
Cycle life:
-
6000 Times
-
Warranty:
-
10 Years
-
OEM/ODM:
-
Accepatable
-
Package:
-
Wooden Box
-
Certification:
-
CE MSDS
Quick Details
-
Model Number:
-
48V 200AH
-
Brand Name:
-
Greensun
-
Place of Origin:
-
China
-
Type:
-
Li-Ion/lithium/lifepo4
-
Battery type:
-
LiFePO4
-
Nominal Voltage:
-
51.2V
-
Product name:
-
Home Powerwall Battery
-
Nominal Capacity:
-
10KWH
-
Cycle life:
-
6000 Times
-
Warranty:
-
10 Years
-
OEM/ODM:
-
Accepatable
-
Package:
-
Wooden Box
-
Certification:
-
CE MSDS
Product Description
6000Cycles
Best Qualtiy, Long Cycles Life
12Years Warranty
Good After Sales Service
Safe
Adopting advanced LIthium iron phosphate battery technology to make it very safe
Compact Size and Lighter Weight
Beautiful and Compact Design and much Lighter Weight than Lead Acid
Smart BMS
Very smart and good quality BMS to protect itself very well
Wider Comptability
Compatible with a lot of inverters like Deye, INVT, Growatt, Sofar, MEGAREVO, Sol-ark, Victron and so on
Plug&Play
Easy Installation
CAN&RS485 Communication
Specification

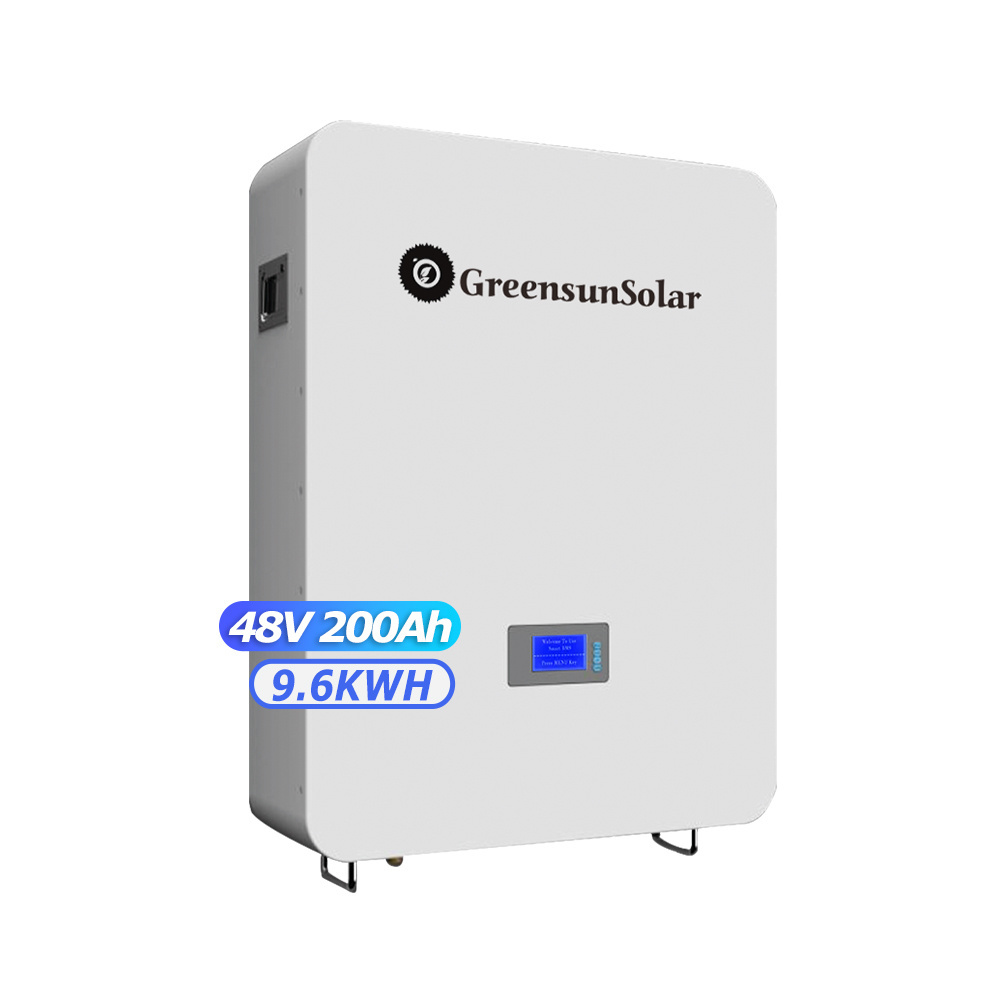

GREENSUN POWERWALL lithium lifepo4 battery is special design for HESS/Household storage and ESS/Energy Storage System. It is very stuitable for hybrid solar system and off grid solar system and also UPS, etc,.
It is modular design, it can be connected in parallel to expand its capacity from 100ah to 2000Ah.
|
Powerwall Home Battery Datasheet
|
|
|
||
|
1
|
Nominal Voltage
|
48V
|
||
|
2
|
Nominal Capacity
|
100AH/150AH/200AH
|
||
|
3
|
Nominal Energy
|
5KWH /7KWH/10KWH
|
||
|
4
|
Batetry Type
|
Lithium Iron Phosphate Battery
|
||
|
5
|
BMS
|
Built-in BMS
|
||
|
6
|
Operation Temperature
|
Discharge: -20℃-60℃（pack internal temperature）
|
||
|
7
|
Operation Voltage Range
|
37.5-54.75V
|
||
|
8
|
Recommended MAX Discharge Current
|
100A
|
||
|
9
|
Recommended MAX Charge Currect
|
50A
|
||
|
10
|
Inner Resistance
|
<30mΩ
|
||
|
11
|
Cycle Life (100% DOD)
|
>3000 cycles (100% DOD); >6000 cycles (80% DOD)
|
||
|
12
|
Battery Weight without Package
|
55KGS/70KGS/95KGS
|
||
|
13
|
Battery Cell
|
3.2V LIFEPO4 Type (UN38.3, UL 1642, CE)
|
||
|
14
|
Battery Pack
|
Comply UN38.3, CE
|
||
|
15
|
Communication
|
Can-bus, RS 485
|
||
|
16
|
Others
|
LCD Screen, Support Parallel
|
||
|
12 Years Warranty, More than 20 Years Design Life
|
|
|
||
Support in parallel.
