BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants
BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants
BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants
BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants
BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants
BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants
BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants
BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants

BENY European Warehouse Solar Kit 800 W to 600 W Adjustable On Grid System Solar System Micro Inverter Balcony Power Plants

FOB Reference Price: Get Latest Price
≥10 Pieces
US $450
≥1000 Pieces
US $350
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Controller Type:
MPPT
Mounting Type:
Ground Mounting
Certificate:
CE,UKCA,TUV
Warranty:
10 YEARS, 10 / 25years Optional
Place of Origin:
Zhejiang, China
Brand Name:
BENY
Model Number:
Balcony Solar System
Load Power (W):
800w, 600w
Work Time (h):
24
Operating temperature:
-40℃ to +70℃
Power Factor:
>0.99 (default)
Peak efficiency:
96.5%
MPPT efficiency:
>99.8%
Enclosure rating:
IP67

Quick Details

Application:
Home
Solar Panel Type:
Monocrystalline Silicon
Battery Type:
Lead-Acid, NONE
Controller Type:
MPPT
Mounting Type:
Ground Mounting
Certificate:
CE,UKCA,TUV
Warranty:
10 YEARS, 10 / 25years Optional
Place of Origin:
Zhejiang, China
Brand Name:
BENY
Model Number:
Balcony Solar System
Load Power (W):
800w, 600w
Work Time (h):
24
Operating temperature:
-40℃ to +70℃
Power Factor:
>0.99 (default)
Peak efficiency:
96.5%
MPPT efficiency:
>99.8%
Enclosure rating:
IP67
Products Description
About this item
Efficient power package: solar panels have a total power of 860 W (2 x 430 W), increase your solar power generation with our 430 W solar panels. These modules have an efficiency of up to 22.02%, and the double-sided design uses sunlight reflected from the back, providing up to a 30% performance increase on the same surface. This allows maximum power generation to be achieved, making it ideal for residential and commercial installations.
Highly efficient inverter: the Beny inverter has a power of 800 W, which can be easily switched to 600 W by the customer via the app, and an efficiency of up to 96.5 percent for optimal yield in partial shade and in all weather conditions. Operation and monitoring is carried out via a mobile app that collects data in real time and allows remote monitoring. The inverter features an IP67 housing for long life in all weather conditions.

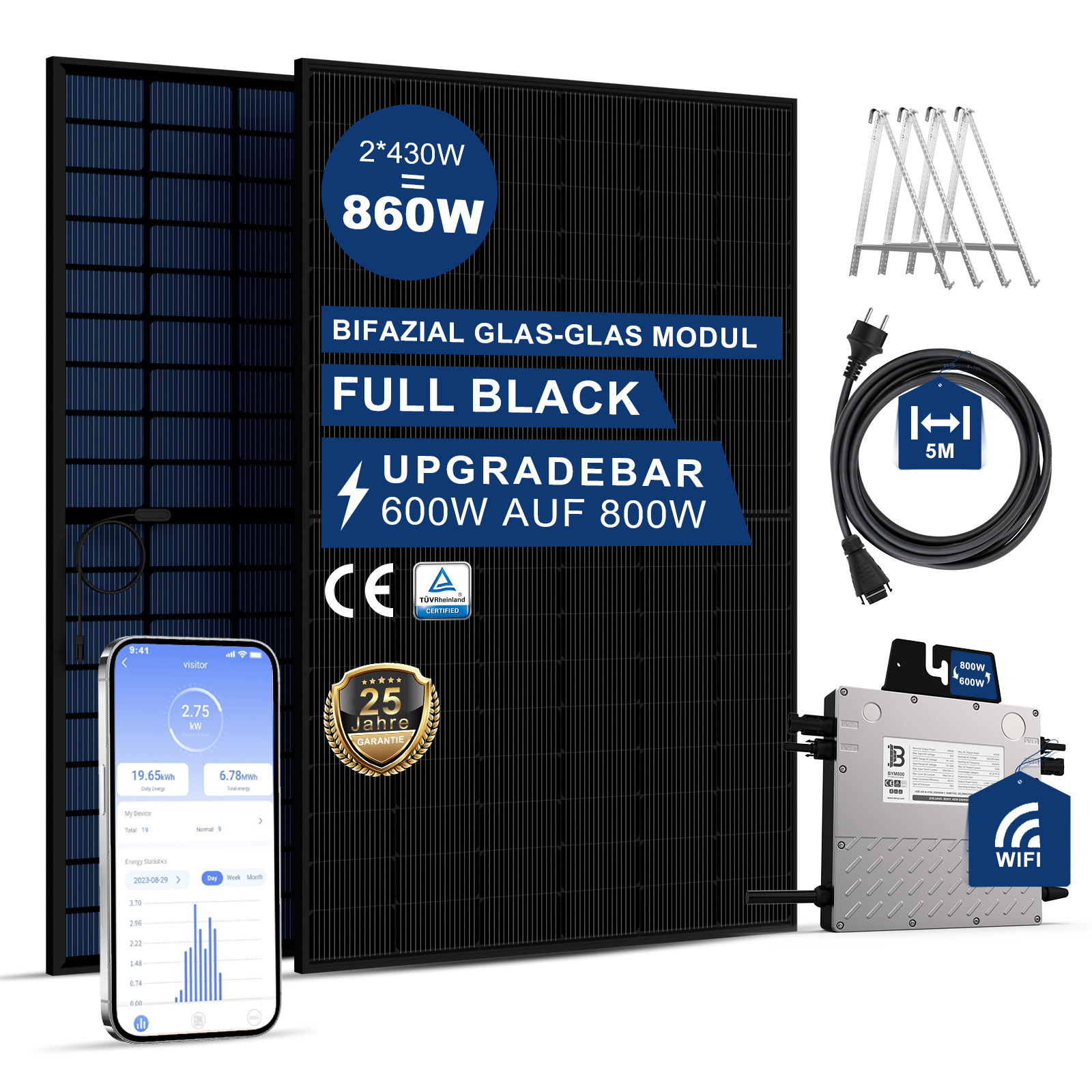

Complete system: the balcony power station is easy to install, with complete sockets, plug and play, and generates electricity immediately in sunlight. The balcony power plant consists of high-quality components: two 430 watt solar modules, a Benny inverter (switchable from 800 to 600 watts), a 5 metre long connection cable, two 2 metre long DC extension cables.
App monitoring: Users can connect the micro inverter directly to their mobile phone via Wi-Fi to get real-time data from the solar system. Remote control and monitoring via mobile app, you no longer need to work on site, this intelligent inverter displays all operating data on your smartphone, which greatly simplifies the operation, monitoring and maintenance of the solar system.
Microinverter
Input Data(DC)
MPPT voltage range
24V-50V
Operating voltage range
16V-60V
Max. short circuit current
30A*1/20A*2
Max. input current
36A*1/13A*2
Output Data(AC)
Rated Output Power
800W
Maximum Output Power
800VA (Vac≥230,Vmp≥35)
Rated voltage/range
230V(176V~265V)
Rated Frequency/range
50Hz/60Hz (46.5-62)Hz
Maximum continuous output current
3.64A
Maximum Harmonic Distortion
<4%
Power Factor
>0.99 (default)
Efficiency
Peak efficiency
0.965
MPPT efficiency
>99.8%
Night power consumption
<100mW
Other parameters
Communication method
Wi-Fi
Safety protection class
Class I
Enclosure rating
IP67
Operating temperature
-40℃ to +70℃
Storage temperature
-40℃ to +85℃
Relative humidity
0-98%
Transformer design
High frequency transformer, Electrical isolated
Overvoltage class
OVC III (AC), OVC II (PV)
Warranty period
10 / 25years Optional
Dimensions(L*W*H mm)
268.5*215*40
Weight(kg)
3.6
PV Modules Main Specifications
Maximum Power (Pmax)
430
Voc(V)
40.1
Isc(A)
13.38
Vmpp(V)
33.8
Impp(A)
12.76
Efficiency
0.2199
Bracket Main Specifications
Installation Site
Balcony
Stand Material
AL6005-T5& steel
Fastener Material
SUS304
Material of Spare Parts
AL6005-T5
AC Plug Cable Main Specifications
Cable Length
5m
Copper Diameter
1.5mm2
Cable Length
Betteri (Female)
Copper Diameter
EU standard
Ordering Information
Product Advantages
ULTRA-HIGH OUTPUT & ULTRA-HIGH EFFICIENCY
The world’s first mature micro inverter applying GaN, the third-generation semiconductor technology.
UP TO 97.5% PEAK EFFICIENCY
The peak efficiency of most microinverters on the market is around 96%.

BENY’s newly developed microinverter has a Peak Efficiency of 97.5% and a European Efficiency of 97%.

Higher efficiency allows you to convert more DC power from solar panels to AC power, allowing you to get more from your
installation.
REMOTE MONITORED
Communicating with BENY microinverters through PLCC/Zigbee enables users to manage the systems in a smart digital way. Thereby isolating a problem much faster than other inverters.
EASILY EXPANDABLE
Due to BENY microinverters’ modularity, a solar system can be easily expandable from a single panel to multiple panels independent of each other.

You can use BENY BYPO-2 to Parallel Optimizer to connect PV modules in parallel to increase the output current of the PV array,
thereby obtaining greater output power.

It has the characteristics of ultra-low voltage drop and ultra-low loss, which can solve the problem that the current backflow reduces the life of PV modules or damages PV modules in parallel, and can improve the MPPT efficiency of PV modules in parallel.
UP TO 25 YEARS WARRANTY
String inverters typically come with only a five-year limited warranty and must be replaced at least once during the 25-year life of the solar PV system.
BENY microinverter offers a warranty of up to 25 years, with a life expectancy that matches that of the solar module under
real-world conditions, making it more economical.
HIGH-GRADE MICROINVERTER
We take into account market demands for solar PV solutions when manufacturing our microinverter, leading to many brand-building features.
