Quick Details
-
Warranty:
-
25 Years Output Power Guarantee, 25 Years Output Power Guarantee
-
Brand Name:
-
Shinefar
-
Model Number:
-

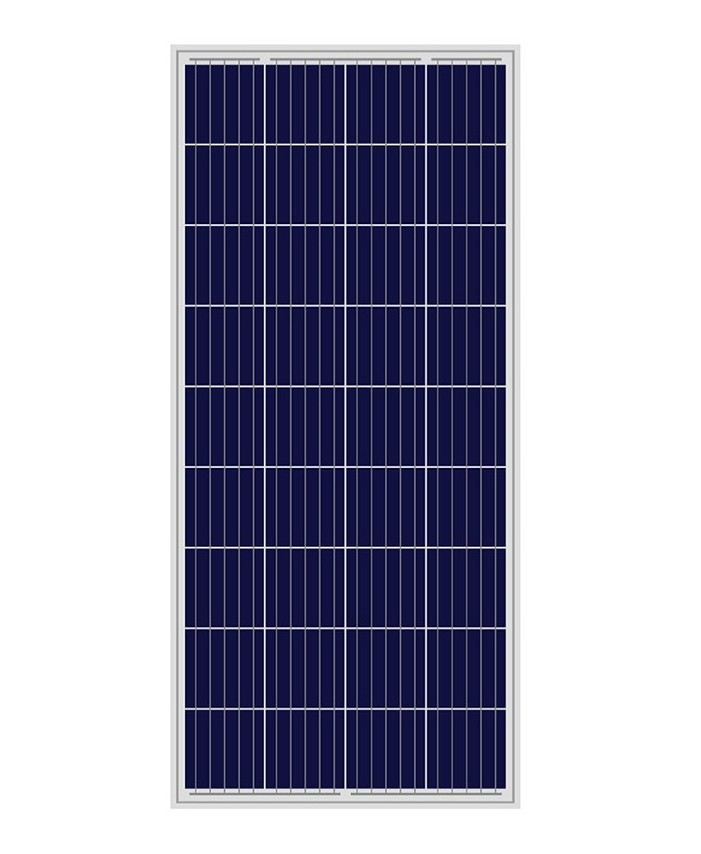

SF-P6/36 160W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1480*670*35mm
-
Weight:
-
12KGS
-
Front Glass:
-
3.2mm tempered glass
-
Out Cable:
-
4mm2 , 900 length
-
Celll Type:
-
POLY 156*156mm
-
Junction Box:
-
IP67
-
Positive Tolerance:
-
0~+3%
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/ISO/INMETRO, TUV/IEC61215/IEC61730/CEC/CE/ISO/INMETRO
-
OEM:
-
Acceptable
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
Standard, mini solar panel
-
Panel Efficiency:
-
18.63%
-
Warranty:
-
25 Years Output Power Guarantee, 25 Years Output Power Guarantee
-
Brand Name:
-
Shinefar
-
Model Number:
-
SF-P6/36 160W
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
1480*670*35mm
-
Weight:
-
12KGS
-
Front Glass:
-
3.2mm tempered glass
-
Out Cable:
-
4mm2 , 900 length
-
Celll Type:
-
POLY 156*156mm
-
Junction Box:
-
IP67
-
Positive Tolerance:
-
0~+3%
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/ISO/INMETRO, TUV/IEC61215/IEC61730/CEC/CE/ISO/INMETRO
-
OEM:
-
Acceptable
Product Details
|
SPECIFICATIONS FOR SF-6P(120w-170W)
|
|
|
|
|
|
|
||||||
|
TYPICAL TYPE
|
SF-6P120
|
SF-6P130
|
SF-6P140
|
SF-6P150
|
SF-6P160
|
SF-6P170
|
||||||
|
Max power(Pmax)
|
120
|
130
|
140
|
150
|
160
|
170
|
||||||
|
Max power voltage(Vmp)
|
18.2
|
18.02
|
17.76
|
17.86
|
18.23
|
18.27
|
||||||
|
Max power current(Imp)
|
6.59
|
7.21
|
7.88
|
8.40
|
8.78
|
9.31
|
||||||
|
Open circuit voltage(Voc)
|
22.34
|
22.92
|
22.08
|
22.38
|
22.48
|
22.52
|
||||||
|
Short circuit current(Isc)
|
7.12
|
7.71
|
8.45
|
8.94
|
9.49
|
10.07
|
||||||
|
Moudle efficienvy(%)
|
17.55
|
17.3
|
14.06
|
15.06
|
16.06
|
17.07
|
||||||
|
Power tolerance
|
0~+5W
|
|
|
|
|
|
||||||
|
Max system voltage
|
DC1000V
|
|
|
|
|
|
||||||
|
Maximum Series Fuse Rating
|
20A
|
|
|
|
|
|
||||||
|
Dimensions
|
150w-170w：1480x670x35mm
|
|
|
|
|
|
||||||
|
Weight
|
12kgs
|
|
|
|
|
|
||||||
|
Front glass
|
High transparency solar glass 3.2mm (0.13 inches)
|
|
|
|
|
|
||||||
|
Frame
|
Silver, anodized aluminium alloy
|
|
|
|
|
|
||||||
|
Output cables
|
TUV1×4.0mm2,Length:900mmorCustomizedLength
|
|
|
|
|
|
||||||
|
Junction box
|
IP67
|
|
|
|
|
|
||||||
|
Cell type
|
poly silicon 156x156mm
|
|
|
|
|
|
||||||
|
Number of cells
|
36 cells in series
|
|
|
|
|
|
||||||
|
Warranty
|
10years of product defects in materials & workmanship
10years for 90% of warranted minimum power output 25years for 80% of warranted minimum power output |
|
|
|
|
|
||||||
