Quick Details
-
Model Number:
-
CN890AF-TM-GB
-
Product:
-
Access Controller
-
OS:
-
Android 5.1/Linux
-
Display:
-
7" Touch screen
-
Identification:
-
fingerprint + NFC/Bluetooth + RFID card
-
RFID:
-
125KHz EM, 13.56MHz, HID reader
-
SAM:
-
SAM AV2
-
Interface:
-
WiFi, 4G, Ethernet, RS485 OSDP
-
Power:
-
Battery, PoE, 9-24VDC
-
Camera:
-
5.0 megapixel Camera
-
Certification:
-
FCC, CE, CE,FCC
Quick Details
-
Special Features:
-
Two-way Audio, Android/Linux OS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CIVINTEC
-
Model Number:
-
CN890AF-TM-GB
-
Product:
-
Access Controller
-
OS:
-
Android 5.1/Linux
-
Display:
-
7" Touch screen
-
Identification:
-
fingerprint + NFC/Bluetooth + RFID card
-
RFID:
-
125KHz EM, 13.56MHz, HID reader
-
SAM:
-
SAM AV2
-
Interface:
-
WiFi, 4G, Ethernet, RS485 OSDP
-
Power:
-
Battery, PoE, 9-24VDC
-
Camera:
-
5.0 megapixel Camera
-
Certification:
-
FCC, CE, CE,FCC
13.56MHz RFID Door Access Control system Kit With Electric Magnetic lock Proximity Door Entry keypad Key Fobs EXIT Button

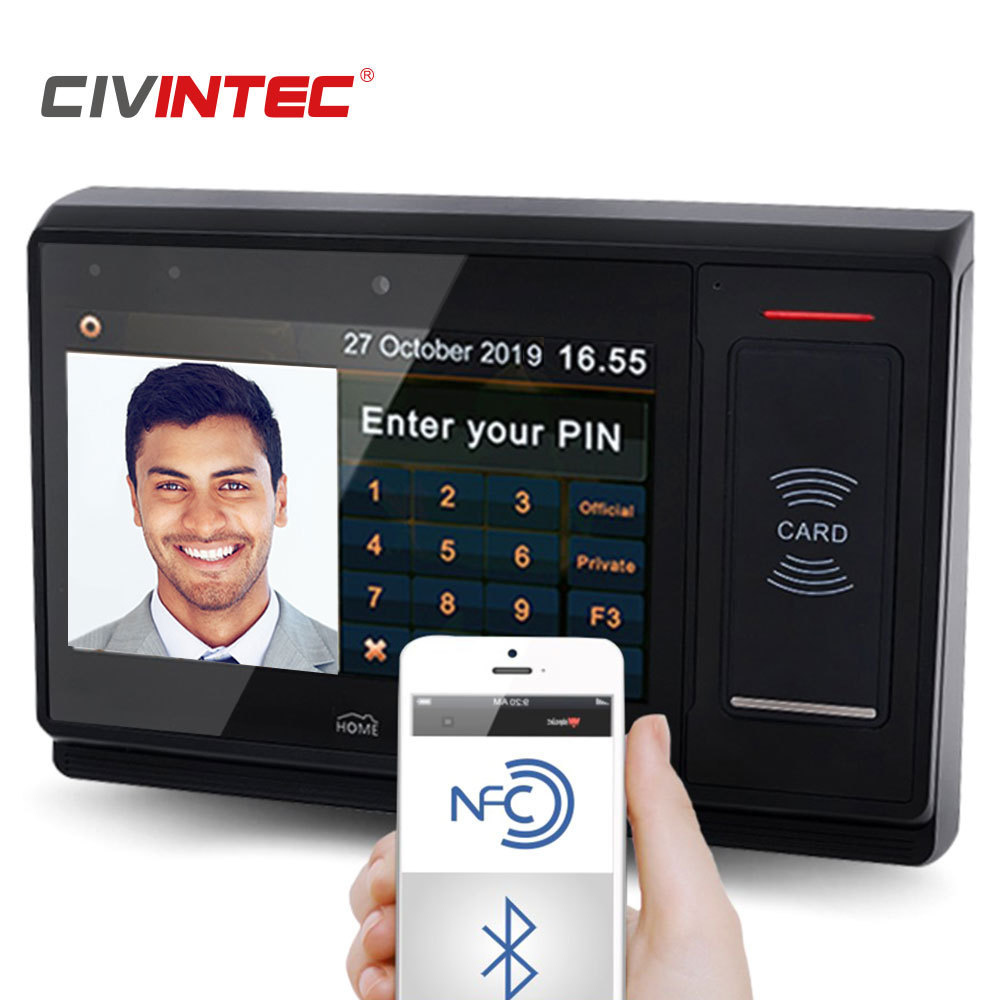

UTOUCH is 7” intelligent access control touch screen terminal with Android/Linux OS comes complete with an SDK and API for general application software integration as access control, attendance, membership and facility management. It is a 5-factor authentication device with optional fingerprint (25,000 templates) + RF Card + Pin code and NFC/BT mobile ID for moible phone access credential. It's with auto focus camera to snap visitor's picture for image records to enhance the security for membership management. It's powered by DC 9-24V, with optional PoE and Battery. With web server, uTouch can build networked central manage system with TCP/IP, 4G, and WiFi enable connection to control centres for ease of management.
| Model | CN890 SERIES |
| Operation System | ANDROID & LINUX |
| Display | 7.0” capacitive touch screen |
| Smart Card Interface | |
| ISO-protocol | 125KHz & Pro, 13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC |
| Contact smart card | ISO7816 (T=0,T=1) 1 SAM module |
| Biometric Fingerprint Reader | |
| Fingerprint sensor | 500 dpi optical sensor |
| Template capacity | 1:1 (100,000); 1:N (25,000) |
| General Features | |
| Communication interfaces | 4G, WiFI, BT4.0,TCP/IP, RS232, RS485/OSDP, wiegand, USB2.0 (OTG) |
| Power supply | 9-24V DC,Power over Ethernet ,Battery |
| Camera | Auto focus 5.0 megapixel digital camera |
| Door phone | Microphone, speaker (controllable volume) |
| SD card | 1 SD card slot |
| Tamper alarm | 1 tamper alarm switch |
| Operating temperature | 0℃~ +50℃ |
| Certification | CE,FCC |
