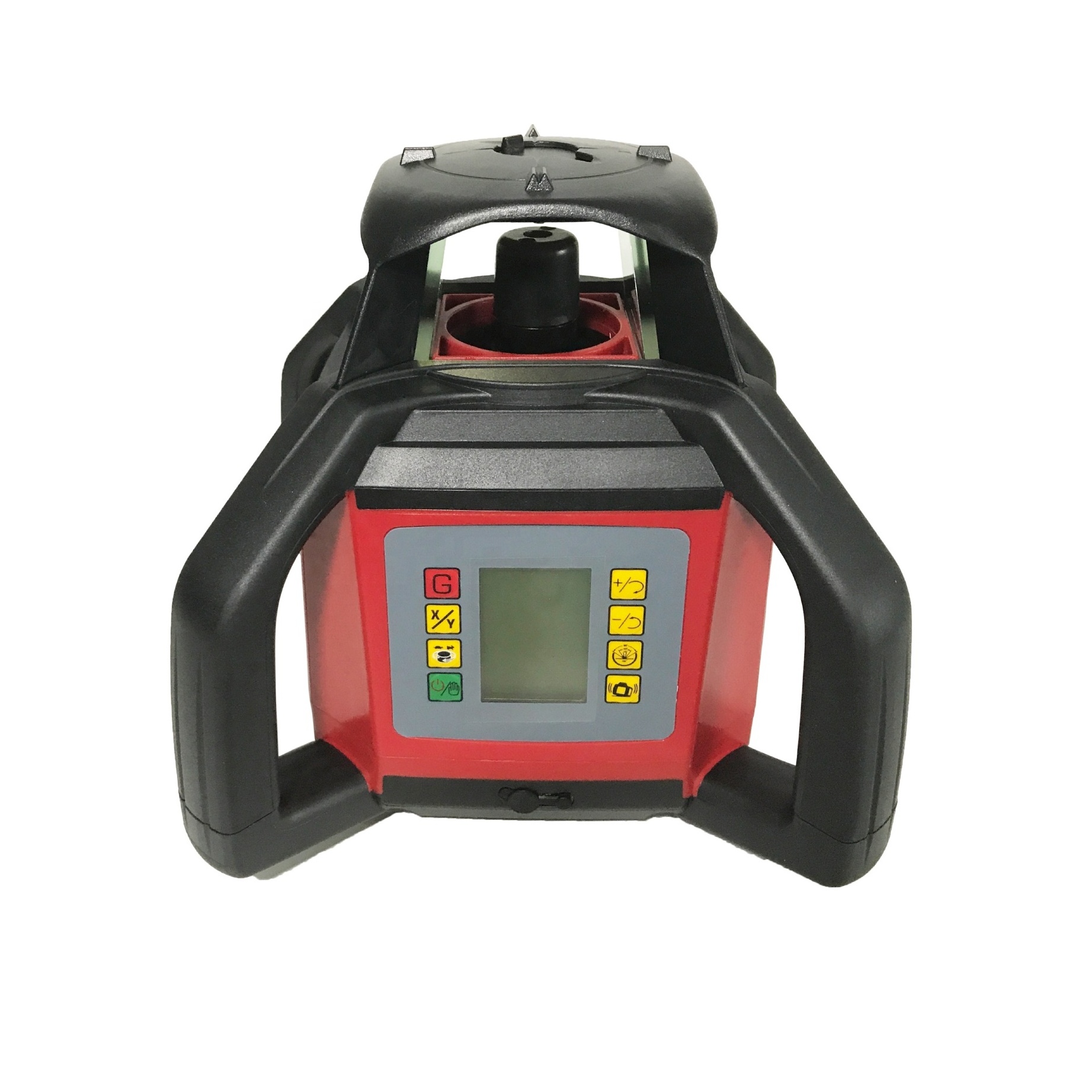

RT40L Digital Display Automatic self-leveling Laser Level 360

RT40L Digital Display Automatic self-leveling Laser Level 360

Product Description

*Digital gradient setting: deviation from the horizontal plane can set digitally in X and Y axes.

the range is from -10% to +10%
*All settings are presented on the large LC display.
*The laser is ideal for machine control and other dual grade applications
*Automatically self-leveling in both horizontal and vertical by step motor control
*Choise of automatic or manual mode.
*H.I.Alert(Tilt function),alarm system in slope mode.
*Scanning mode,spotting plumb beam,speed of rotate head adjustable

*Robust waterproof housing.
*All functions including slope setting can be controled by remote control.

*FRE207-2SW with optional wireless remote is able to have all status of laser

appeared on its LCD,Even for data of grade,they are visible and adjustable

through its LCD.Available operation distance can enlarge to 50m

Specification »

Level system: Electronic sensor fast leveling.

Level Accuracy: ±20"(± 3 mm @ 30 m)

Slope range:±10.00%

Slope accuracy:±10mm@10m

Automatic self-leveling range:5°

Laser Laser source:  Visible Laser Diode 635nm,Class II.

Operation range: 500m dia. with detector

Four head speeds: 60; 120; 300; 600 R. P. M.

Four scan widths:10°; 45°; 90°; 180°

FRE207-2S IR Remote control:Available distance:20m

FRE207-2SW Wireless remote contro

l(optional):Available distance:50m

Operation temperature: -20ºC ~ +50ºC (-4°F~+122°F)

Power supply: DC 4. 8-6V (4 sections sub-C NI-MH battery)Battery pack replaceable(Ni-MH battery pack

or Alkaline battery pack,selectable)

Continiuance working time: Approx. 40hr.

Waterproof and dustproof: IP 54

Dimension: 160(L) X 160(W)X 185(H)mm

Weight: 2.8kg(w/batteries)
