- Product Details
- {{item.text}}
Quick Details
-
Power:
-
AC
-
Voltage:
-
220V
-
Product name:
-

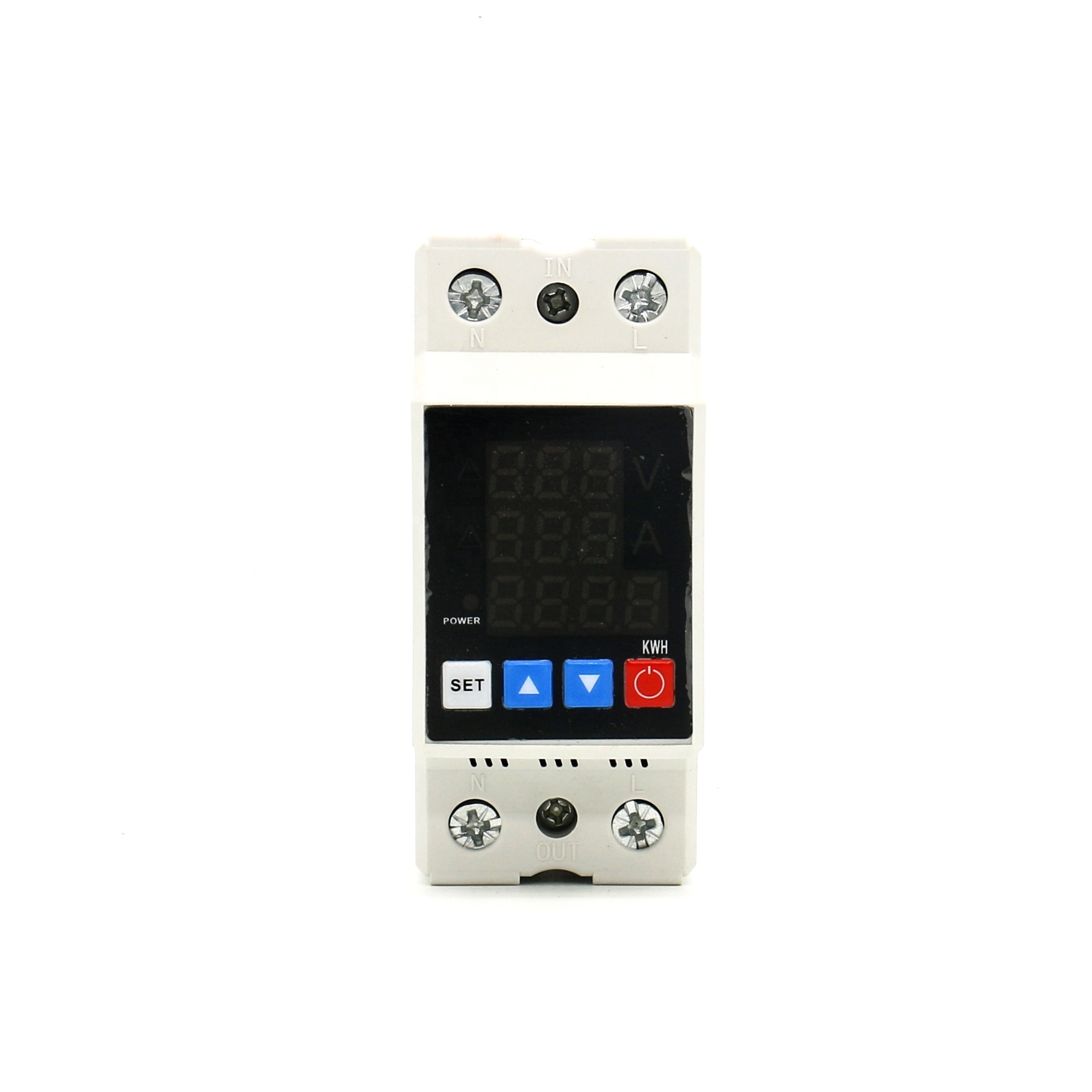

ADJUSTABLE V/A PROTECTOR
-
Current:
-
1-63A
-
Rated insulation voltage:
-
400V
-
Rated Voltage:
-
220V
-
Current Type:
-
AC
-
Overvoltage(>V)setting range:
-
240V~300V
-
Undervoltage(140V~210V
-
Operation voltage range:
-
AC80V~440V (Single phase)
-
Rated frequency:
-
50/60Hz
-
Brand:
-
LEEYEE
Quick Details
-
Brand Name:
-
LEEYEE
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
LYAP-A5
-
Power:
-
AC
-
Voltage:
-
220V
-
Product name:
-
ADJUSTABLE V/A PROTECTOR
-
Current:
-
1-63A
-
Rated insulation voltage:
-
400V
-
Rated Voltage:
-
220V
-
Current Type:
-
AC
-
Overvoltage(>V)setting range:
-
240V~300V
-
Undervoltage(140V~210V
-
Operation voltage range:
-
AC80V~440V (Single phase)
-
Rated frequency:
-
50/60Hz
-
Brand:
-
LEEYEE
Specification details
|
Rated supply voltage
|
AC220V
|
|
Operation voltage range
|
AC80V~440V (Single phase)
|
|
Ratedfrequency
|
50/60Hz
|
|
Overvoltage(>V)setting range
|
240V~300V
|
|
Undervoltage
|
140V~210V
|
|
Current
|
1-63A
|
|
Error
|
2%
|
|
>Vand < Vtrip delay
|
0.5s
|
|
Reset/start delay
|
1s~300s
|
|
Voltage measure rmenta ccuracy
|
1%(Not exceeding 1% of the overall range)
|
|
Rated insulation voltage
|
400V
|
|
Output contact
|
1NO
|
|
Electrical life
|
3
|
|
Mechanical life
|
10
5
|
|
Protection degree
|
10
6
|
|
Pollutiondeqree
|
IP20
|
|
Altitude
|
≤ 2000m
|
|
Oporatintg temperature
|
-55℃ ~55℃
|
|
Humidity
|
≤ 50%at40C(without condensnton)
|
|
Storage temperature
|
-30℃ ~70℃
|
|
Technical parameter
|
Setting range
|
|
Overvoltage trip value
|
240V~300V
|
|
Undervoltage trip value
|
140V~210V
|
|
Reset delay time
|
1s~300s
|
|
Starting delay time
|
1s~300s
|
|
Current specification
|
15A 25A 32A 40A 50A 63A
|
|
Rated operating current
|
(In.A) 15 25 32 40 50 63
|
|
Maximum operating current Imax
|
(A.within 10min) 25 30 40 50 60 80
|
|
Max.power ofload(kW)
|
3.6 5.5 7 8.8 11 13.9
|
