Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KingClima
-
Car Model:
-
bus truck
-
Item name:
-
ac expansion valve
-
Certification:
-
ISO,TS,CQC, ISO 9001 2015
-
Pressure:
-
Medium Pressure
-
Media Temperature:
-
-40-10°C
-
Structure:
-
Control
-
Power:
-
Battery
-
Material:
-
brass
-
Item Name:
-
Valve
-
Weight:
-
0.3kgs
-
MOQ:
-
1 PC
Quick Details
-
OE NO.:
-
067N7164
-
Reference NO.:
-
067n7164
-
Size:
-
standard size
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KingClima
-
Car Model:
-
bus truck
-
Item name:
-
ac expansion valve
-
Certification:
-
ISO,TS,CQC, ISO 9001 2015
-
Pressure:
-
Medium Pressure
-
Media Temperature:
-
-40-10°C
-
Structure:
-
Control
-
Power:
-
Battery
-
Material:
-
brass
-
Item Name:
-
Valve
-
Weight:
-
0.3kgs
-
MOQ:
-
1 PC

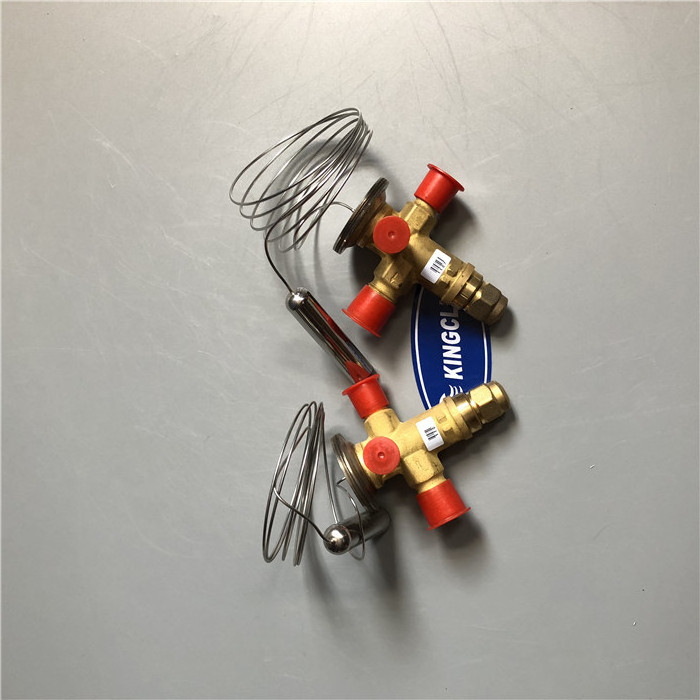

SAE / ODF Connector Type 17KW Electrical 4.5TR 067N7164 AC Expansion Valve
| Model Number | TGEN 4.5TR-F1 |
| OEM Number | BE5014C/067N7163 |
| Condition | New |
| Material | Brass |
| Size | 3*4" |
| Capacity | 4.5TR |
| Power(W) | 17 KW |
| Connector Type | SAE/ODF |
| Refrigerant | R134a |
| Temp range | -40 to +50℉ /-40 to +10℃ |
| Pressure | MWP 667PSIG/PS 46 BAR |
Throttling effect : high temperature and pressure liquid refrigerant throttling through the expansion valve throttling, a low temperature and low pressure of the mist of the hydraulic refrigerant to create conditions for the evaporation of refrigerant;
Control the flow of refrigerant :
Once the liquid refrigerant into the evaporator, the refrigerant will be evaporated into a gaseous state, absorbing heat, reducing the temperature inside the bus. Expansion valve control the flow of refrigerant to ensure that the evaporator outlet is completely gaseous refrigerant.If the flow is too large, the outlet contains liquid refrigerant may enter the compressor to produce liquid hit; If the refrigerant flow is too small, premature evaporation is completed, resulting in Lack of refrigeration
1. Standard packing: carton box for outside packing ac expansion valve
2. Customer packing: Customer printing/labeling on carton available.
3. Product grade : For after market /OEM
4. Warrantee: One year against B/L date.
5. Customer sample manufacturing available.
6.Fast delivery , in 3~5 days if we have ready ac expansion valve in stock.
|
Q1. |
How is quality ensured? |
|
A. |
All our processes strictly adhere to ISO-9001 procedures.And we have a one year quality warranty B/L issue date. If the product does not work property as described, and the problem is proven to be at our fault, we will provide exchange services for the same specific item. |
|
|
|
|
Q2. |
Do you make customer’s auto AC parts? |
|
A. |
Yes,you can send us samples and we can develop the new models especially for you. |
|
|
|
|
Q3 . |
What is your Minimum Order Quality? |
|
A. |
Different products have different MOQ,but we can sell you even one piece if we have stock the model of you need. |
|
|
|
|
Q4. |
What about delivery time? |
|
A. |
If we have stock of the item you need, we can send goods to you within 2 working days after deposit or 100% payment into our bank account. If we don’t have stock,the time to make each product is different generally, it takes 1 to 30working days. |
|
|
|
|
Q4. |
What’s your agency distributor policy focused on auto AC parts? |
|
A. |
We have some different policies according to target markets, So please send emails for detailed discussions or talk face to face. |
