- Product Details
- {{item.text}}
Quick Details
-
Color:
-
full color
-
Panel Size:
-
1000*400mm, 1000*400mm
-
Place of Origin:
-
CHONGQING,CHINA
-
Model Number:
-
led transparent film screen
-
Brightness:
-
4000cd/sqm, 4000cd/sqm
-
Color Depth:
-
transparent, transparent
-
Lifespan (hours):
-
80000, 80000
-
IP Rating:
-
30, 30
-
Resolution:
-
136*64 = 8704
-
View Angle(H/V):
-
160, 160
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
DOUBLE CHI
-
Color:
-
full color
-
Panel Size:
-
1000*400mm, 1000*400mm
-
Place of Origin:
-
CHONGQING,CHINA
-
Model Number:
-
led transparent film screen
-
Brightness:
-
4000cd/sqm, 4000cd/sqm
-
Color Depth:
-
transparent, transparent
-
Lifespan (hours):
-
80000, 80000
-
IP Rating:
-
30, 30
-
Resolution:
-
136*64 = 8704
-
View Angle(H/V):
-
160, 160

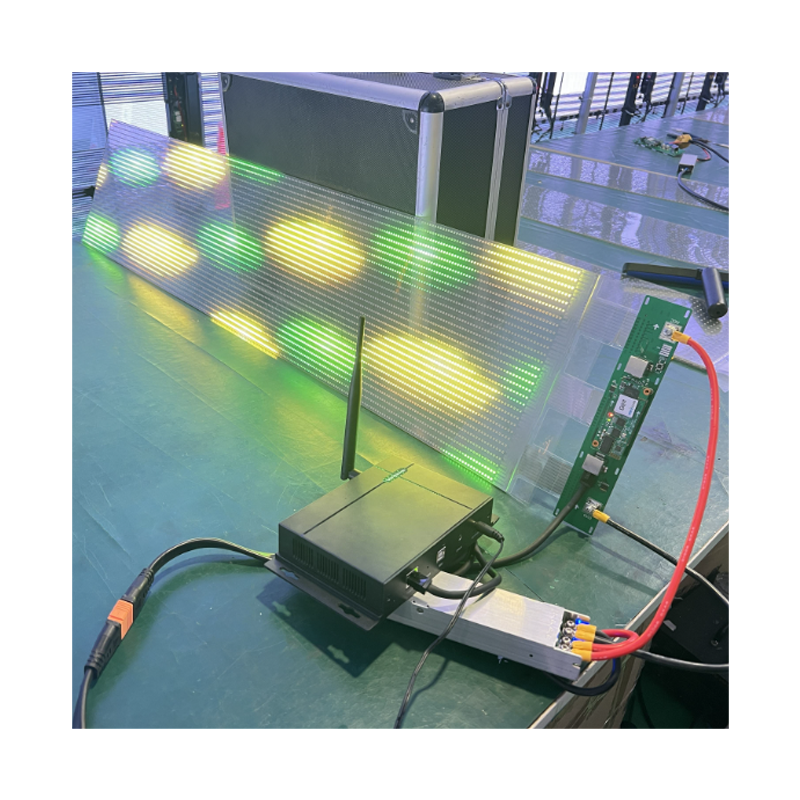

LED Flexible Transparent Film Display
are thin display screens made with LEDs as the light source and high-transparency light-guiding materials as the substrate through precision processing. They feature high definition, high brightness, vivid colors, wide viewing angles, and can seamlessly integrate with glass curtain walls. They meet the daylighting needs of buildings while achieving diverse lighting effects.
Product Description
Pixel Pitch(mm)
|
P6
|
P8
|
P10
|
P16
|
P20
|
||||
LED Standard
|
SMD2121
|
|
|
|
|
||||
Density (pixel/m²)
|
27,889
|
15,625
|
10,000
|
3,906
|
2,500
|
||||
Pixel Composition
|
1R1G1B
|
|
|
|
|
||||
Color Temperature
|
5500-9300K
|
|
|
|
|
||||
Power Consumption
|
Ave.=240w/m²*H; Max.=800W/m²*H
|
|
|
|
|
||||
Cabinet Size(MM)
|
1000*240mm/tailorable
|
|
|
|
|
||||
Cabinet Weight
|
1.5kg/m²
|
|
|
|
|
||||
Brightness (cd/m²)
|
3000
|
4000
|
4000
|
3500
|
3000
|
||||
Refresh Rate
|
1920HZ-3840HZ
|
|
|
|
|
||||
Viewing Angle
|
140°/140°(H/V)
|
|
|
|
|
||||
Driving Method
|
static
|
|
|
|
|
||||
Gray scale
|
16bit
|
|
|
|
|
||||
IP Rating
|
IP40
|
|
|
|
|
||||
Working Temperature
|
-20℃~+60℃
|
|
|
|
|
||||
Shelf Life
|
2 years
|
|
|
|
|
||||
Life Span
|
100000Hours
|
|
|
|
|
The advantages of LED flexible transparent film display
1
. Beautiful Appearance: LED crystal film screens seamlessly integrate with glass curtain walls, maintaining the overall aesthetics of buildings. Their high definition, brightness, and vibrant colors create a striking visual impact, enhancing the quality of urban nightscapes.
2
. Energy Efficiency and Environmental Friendliness: LED crystal film screens use low-power LED light-emitting diodes as the light source, offering advantages in energy efficiency and environmental friendliness compared to traditional lighting methods such as neon lights or LED displays. Additionally, their long lifespan and low maintenance costs contribute to their economic viability over the long term.
3
. Easy Installation: LED crystal film screens are easy to install, requiring only attachment to the surface of glass curtain walls. This installation method does not damage the structure of buildings and does not compromise their daylighting performance.
4
. Strong Customizability: LED crystal film screens can be customized according to customer requirements, including various shapes, sizes, and display effects. This customization capability enables LED crystal film screens to meet the diverse needs of customers and find applications across a wide range of fields.
Application scenarios
1. Commercial Buildings: In commercial buildings, the illumination of glass curtain walls directly influences the image and attractiveness of shops. LED crystal film screens can serve as shop signs or advertising screens, displaying various advertisements, images, and videos to attract customers' attention and increase the store's visibility and sales.
2. Public Buildings: Public buildings such as government offices, museums, and libraries have high requirements for both the exterior appearance and interior lighting. LED crystal film screens can be used as external decorations or interior lighting devices for these buildings. With their high definition, brightness, and vibrant colors, they enhance the overall quality and aesthetics of the buildings.
3. Landscape Lighting: Illumination of glass curtain walls is also crucial in urban landscapes. LED crystal film screens can serve as a new type of landscape lighting, adding more colors and charm to the city's night scenes with rich and colorful lighting effects and image displays.
LED crystal film screens, as a new display technology, have various advantages and applications. In glass curtain wall illumination, they provide an efficient, environmentally friendly, and aesthetically pleasing solution, adding more colors and charm to buildings. With continuous technological development, the application of LED crystal film screens will become even more widespread, bringing more convenience and better experiences to people's lives and work in the future.
