* Overtemperature alarm, dew point overtemperature alarm, low water level alarm.
* Real-time curve, system temperature, humidity, dew point temperature can be viewed in the display screen.
* Temperature and humidity controller, touch screen and PLC control module, microcomputer automatic control.
* The box structure adopts jacket design.
* Power off protection function.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
BBIOBASE
-
Model Number:
-
BJPX-FE801-3
-
Product name:
-

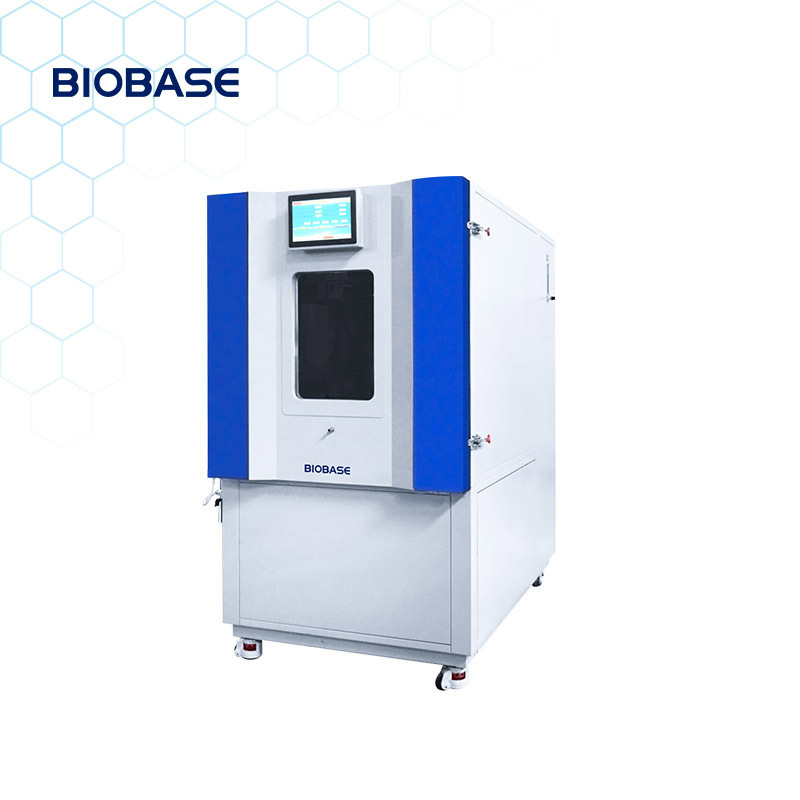

Formaldehyde Emission Test Chamber
-
Temp Range:
-
15~40℃
-
Temp Accuracy:
-
±0.5℃
-
Humidity Range:
-
40~80%RH
-
Humidity Accuracy:
-
±3%RH
-
Air Exchange Rate Range:
-
0.2~2m3/h(Air change rate 0.2~2 times/h)
-
Air Exchange Rate Accuracy:
-
Ventilation rate±1%
-
Air Flow Rate:
-
0.1~2m/s
-
Air Rate Accuracy:
-
≤0.05m/s
-
Test Chamber Size:
-
1±0.02m3
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BBIOBASE
-
Model Number:
-
BJPX-FE801-3
-
Product name:
-
Formaldehyde Emission Test Chamber
-
Temp Range:
-
15~40℃
-
Temp Accuracy:
-
±0.5℃
-
Humidity Range:
-
40~80%RH
-
Humidity Accuracy:
-
±3%RH
-
Air Exchange Rate Range:
-
0.2~2m3/h(Air change rate 0.2~2 times/h)
-
Air Exchange Rate Accuracy:
-
Ventilation rate±1%
-
Air Flow Rate:
-
0.1~2m/s
-
Air Rate Accuracy:
-
≤0.05m/s
-
Test Chamber Size:
-
1±0.02m3
PRODUCT INTRODUCTION
Features:
|
Model
|
BJPX-FE801-3
|
|
Temp Range
|
15~40℃
|
|
Temp Accuracy
|
±0.5℃
|
|
Humidity Range
|
40~80%RH
|
|
Humidity Accuracy
|
±3%RH
|
|
Air Exchange Rate Range
|
0.2~2m3/h(Air change rate 0.2~2 times/h)
|
|
Air Exchange Rate Accuracy
|
Ventilation rate±1%
|
|
Air Flow Rate
|
0.1~2m/s
|
|
Air Rate Accuracy
|
≤0.05m/s
|
|
Test Chamber Size
|
1±0.02m3
|
|
Internal Size
|
800*1000*1150mm
|
|
Pressure
|
10±5Pa
|
|
Sealing
|
Under 1KPa relative pressure, leakage rate ≤1* m3/min
|
|
Constant Temperature Box
|
Polyurethane and insulation board
Outer wall: steel plate, white spraying Inner wall: 304 stainless steel plate |
|
Background Concentrations
|
Formaldehyde＜0.006mg/m3
TVOC＜0.05mg/m3 Single VOC＜0.005mg/m3 |
|
Consumption
|
Starting power≤4kw
Running power 2kw |
|
Power Supply
|
Standard: 220V 50/60Hz
Optional: 110V 50/60Hz |
|
External Size
|
1750*1150*1860mm
|
|
Net Weight
|
450kg
|
