Quick Details
-
Weight:
-
44697 KG
-
Color:
-
Customizable
-
Size:
-
Customizable
-
Delivery Period:
-
Negotiate
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FengWang
-
Dimension(L*W*H):
-
7296*5482*7330 mm
-
Weight:
-
44697 KG
-
Color:
-
Customizable
-
Size:
-
Customizable
-
Delivery Period:
-
Negotiate
Why Choose Us
Products Description
XJM Flotation machine
use:
Mainly used for sorting 0mm-0.5mm grade coal slime. Selecting the appropriate flotation equipment can not only improve the clean coal yield and economic benefits, but also ensure the normal operation of the coal preparation plant for the subsequent operation effect of the coal slurry water treatment system.
working principle:
This type is a mechanical stirring type. The principle is to use the rotation of the impeller to generate negative pressure inside the impeller to inhale the pulp and air, and mix them evenly. Under the action of the agent, the different bubble adsorption properties of coal and impurities are used to achieve the purpose of sorting .
|
Technical Features
|
|
|
Model
|
|
|
|
|||||
|
|
|
|
XJM-4
|
XJM-8
|
XJM-12
|
XJM-16
|
|||||
|
m³
Single tank volume
|
|
|
4
|
8
|
12
|
16
|
|||||
|
Processing power
|
|
|
0.6-1
|
|
|
|
|||||
|
/m³h
Standard throughput of coal slurry
|
|
|
250
|
400
|
600
|
750
|
|||||
|
/m³/m²min
Inflation rate
|
|
|
0.6-1.2
|
|
|
|
|||||
|
m/s
Impeller linear speed
|
|
|
8.4
|
8.4
|
8.9
|
8.9
|
|||||
|
m/n
Diameter of impeller
|
|
|
530
|
700
|
800
|
860
|
|||||
|
kw
Mixer power
|
|
|
15
|
22
|
30
|
37
|
|||||
|
kw
Scraping mechanism power
|
|
|
1.5
|
1.5
|
1.5
|
2.2
|
|||||
|
Outside
type
ruler
Inch
|
L/mm
|
3室
|
6785
|
8200
|
9479
|
10970.5
|
|||||
|
|
|
4室
|
8690
|
10555
|
12239
|
14175.5
|
|||||
|
|
|
5室
|
10595
|
12910
|
14999
|
17380.5
|
|||||
|
|
|
6室
|
|
——
|
|
|
|||||
|
|
W/mm
|
|
2450
|
2750
|
3120
|
3450
|
|||||
|
|
H/mm
|
|
2758
|
2806
|
3250
|
3283
|
|||||
|
kg
Weight
|
|
3室
|
9634
|
14056
|
18860
|
21264
|
|||||
|
|
|
4室
|
12224
|
18538
|
24334
|
27526
|
|||||
|
|
|
5室
|
14814
|
23020
|
29805
|
33764
|
|||||
|
|
|
6室
|
17404
|
27500
|
|
|
|||||

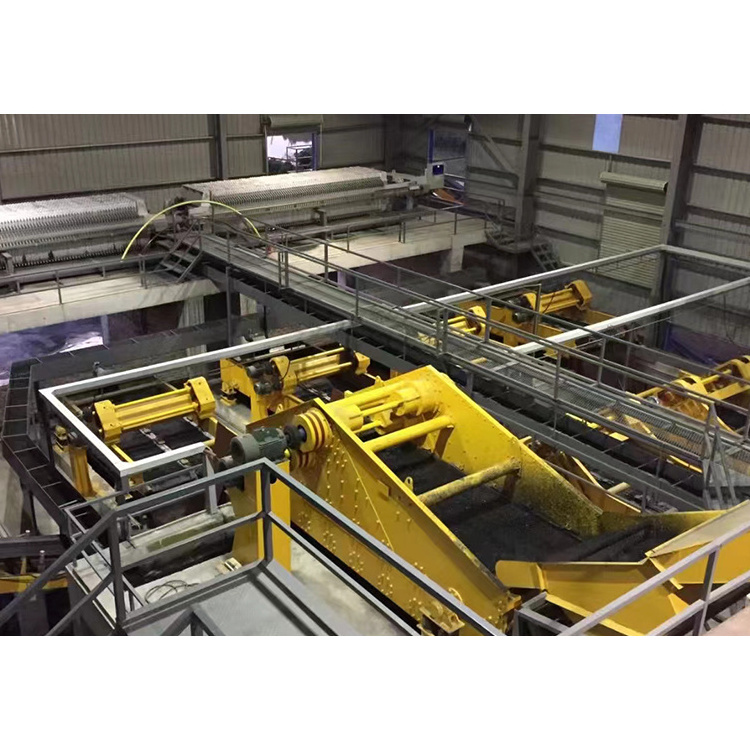

product display
